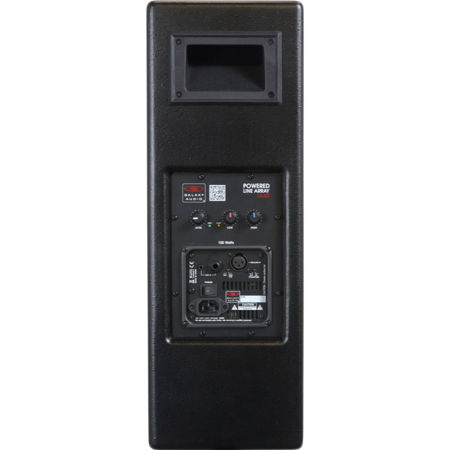

Galaxy Audio LA4DPM Permanent Mount Powered Line Array Speaker, Black, Single
See all Galaxy Audio items

Galaxy Audio LA4DPM Permanent Mount Powered Line Array Speaker, Black, Single

SKU: GALA4DPMB
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Galaxy Audio LA4DPM: Picture 1 regular
Galaxy Audio LA4DPM Powered Line Array Speaker, Permanent Mounting, Single
$479.99$299.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the integrated 100-watt amplifier in the LA4DPM Series Permanent Mount Powered Line Array speaker?

The integrated 100-watt amplifier is designed to optimize the unique sound dispersion characteristics of multiple stacked drivers, providing a powerful and clear sound output.

What makes the LA4DPM Series speaker ideal for PA installations?

The LA4DPM Series speaker is a self-contained unit with a small footprint, making it a hassle-free option for PA installations. It's designed for permanent installation with built-in mounting points, perfect for acoustically challenging rooms.

What kind of input options does the LA4DPM Series speaker offer?

The LA4DPM Series speaker offers a range of input options including an XLR input with +48 volt phantom power, a balanced 1/4" input, and a 1/8" TRS summing input, making it compatible with a variety of devices such as MP3 players.

What is the benefit of the two-band EQ control and built-in Compressor/Limiter in the LA4DPM Series speaker?

The two-band EQ control and built-in Compressor/Limiter ensure that your sound is always balanced and clear, regardless of the audio source. It helps in maintaining the sound quality and preventing distortion or damage due to loud volumes.

Shopper : Why Did You Choose This?Daniel S : to replace an existing setup using the same speaker.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Galaxy Audio LA4DPM Specifications

  • Frequency Response

    50Hz - 17kHz (+/-3 dB)

  • Output/Peak

    100 Watts

  • Nominal Impedance

    16 Ohms

  • Sensitivity

    98dB, 1 W at 1 m (1kHz octave band)

  • Max SPL

    124dB, 100 W at 0.5 m

  • Speaker Compliment

    Four 4.5" Full Range Drivers

  • Nominal Coverage Pattern

    120 deg. H x 60 deg. V

  • Input Connections

    One Balanced XLR with +48 VDC, One 1/4" Balanced/Unbalanced, One 1/8" Summing

  • Controls

    Level, High Frequency, Low Frequency, 20dB Pad, Phantom Power

  • Indicators

    Input, Compression

  • Protection

    Compressor/Limiter

  • Power Supply

    100/240 VAC 50/60 Hz, 1A

  • Enclosure Material

    15 mm Plywood, Steel Grill

  • Rigging

    Fourteen 1/4-20 T-nut Mounting Points

  • Dimensions (HxWxD)

    21.5 x 7 x 7.5" (54.61 x 17.78 x 19.05cm)

  • Weight

    14.35 lbs (6.51kg)

  • UPC Code

    691281006784

About Galaxy Audio LA4DPM

This LA4DPM Series Permanent Mount Powered Line Array speaker is the latest in the line of CORE speakers from Galaxy Audio. With an integrated 100 watt amplifier, the Galaxy Audio LA4DPM Line Array is designed to take advantage of the unique sound dispersion characteristics of multiple stacked drivers. The vertical line array design allows for maximum coverage from a slim, unobtrusive speaker cabinet.

The LA4DPM is designed for permanent installation with built in mounting points. Self contained and with a small footprint, the LA4DPM is the perfect solution for hassle free PA installations, even in acoustically challenging rooms. The LA4DPM has both an XLR input with +48 volt phantom power, a balanced 1/4" input and a 1/8" TRS summing input for MP3 players etc. With a two band EQ control and built in Compressor/Limiter.

Galaxy Audio LA4DPM Features

  • Multiple mounting provisions
  • Internal 100 Watt Amp
  • +48V Phantom Power
  • XLR, 1/4" and 1/8" Summing Input
  • Built-In Compressor
  • 2 Band EQ
  • Can be Flown or Wall Mounted
  • Universal Power Supply
  • Vocal Clarity
  • Light Weight
  • 118 dB Output
  • Solid wood construction

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Galaxy Audio LA4DPM Permanent Mount Powered Line Array Speaker
  • IEC Power Cable
  • Galaxy Audio 3 Year Limited Warranty
