Galaxy Audio PA6SRHK9 Specifications

  • Woofer

    One Galaxy Audio SW6.5 ferro fluid cooled 6.5" NEOLITE Neodymium Woofer

  • Tweeter

    One ST1.5 fluid cooled 1.5" NEOLITE Neodymium Titanium Dome Tweeter

  • Nominal impedance

    4 ohms

  • Power handling capacity

    170 watts

  • Enclosure Materials

    Fire retardant styrene

  • Rated Power

    170 watts at 4 ohms, 180 watts Dynamic Power

  • Equalization

    Three band center detent
    Lo: +/- 12 dB peak/dip at 200 Hz
    Mid: +/- 12 dB peak/dip at 2 kHz
    Hi: +/- 12 dB shelving at 10 kHz

  • Sensitivity (1 Watt at 1 meter)

    98 dB (1 kHz octave band)

  • Frequency response

    80 Hz-18 kHz

  • Maximum SPL at clip

    118 dB

  • Total Harmonic Distortion

    <0.5% at 4 ohms

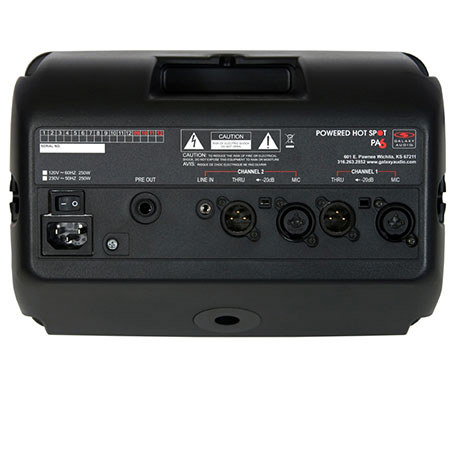

  • Input connections

    Two 1/4" Balanced/Unbalanced Two XLR 24V Phantom PWR One 1/8" Stereo Line In

  • Output connections

    Two XLR Thru Outputs One 1/4" Preamp Output

  • Indicator LEDs

    POWER, CLIP & COMPRESSOR

  • Power Requirement

    120 VAC 60Hz

  • Safeguards

    Short circuit current limiting. Short circuit foldback limiting. Thermal short circuit protection

  • Wireless Receiver: Oscillation type

    PLL synthesized control OSC

  • Wireless Receiver: Adjustable frequency

    Pre-programmed max. 96 switchable channels

  • Wireless Receiver: Dynamic range

    110 dB

  • Wireless Receiver: T. H. D.

    Less than 0.5%

  • Wireless Receiver: Squelch

    Tone key and noise lock dual-squelch

  • Wireless Receiver: Frequency response

    70 Hz - 16 kHz (wireless)

  • Wireless Receiver: Operating range

    160 - 230 feet (50 - 70 M) (open field) with built-in antenna

  • Wireless Receiver: Antenna mode

    Diversity

  • Wireless Receiver: Sensitivity

    4uV at 30 dB

  • Wireless Receiver: Display status

    LCD indicator displays channel or frequency

  • Wireless Receiver: Channel select

    SET, UP, DOWN keys

  • Wireless Receiver: Carrier frequency

    640 - 664 MHz

  • Microphone: No. of Selectable Channels

    96

  • Microphone: Channel Selector

    Yes

  • Microphone: LCD Display

    Yes

  • Microphone: Capsule

    Dynamic

  • Microphone: Built-in-Antenna

    Yes

  • Microphone: Battery Indicator

    3-Bar Battery Life Indicator

  • Microphone: Mute Switch

    Hi/Low

  • Microphone: Batteries

    2 AA Batteries (14 hours)

  • Dimensions

    PA system: 7.75 x 11.75 x 6.75" (196.85 x 298.45 x 171.45mm)

  • Weight

    PA system: 6.4lbs (2.9kg)
    Microphone: 8.3oz. (235.30g)

About Galaxy Audio PA6SRHK9

The Galaxy Audio PA6SRHK9 system includes a wireless receiver, wireless hand held microphone and a convenient mic stand insert on the bottom of the unit. This allows a quick setup on top of a mic stand, with the PA6SR angled upward for accurate vocal monitoring. The PA6SR has a built in 170 watt amplifier designed to handle the most demanding audio situations. This high tech Class D amplifier produces plenty of power to cover a wide variety of applications. This design allows the PA6SR to function both as a stand-alone PA system and as a high-powered vocal monitor to cut through loud stage volumes. For larger gigs that require more coverage, you may simply patch from the Preamp Output to the main house PA, while using the PA6SR as your onstage monitor.

The PA6SR also features a built in 18dB Compressor/Limiter circuit with Compressor and Clip LEDs. The Compressor acts to smooth out transient peaks in the signals, thus improving overall sound quality and increasing apparent volume. The Limiter helps protect the woofer and tweeter from being damaged by amplifier distortion. The Clip LED indicates when a reduction in volume is recommended.

Galaxy Audio PA6SRHK9 Features

  • Included mic stand adaptor insures a more stable and secure placement on any mic stand
  • Molded-in yoke bracket points. With the optional yoke bracket assembly the PA6SR can be mounted to a wall or ceiling, or attached to a mic stand and angled in any direction
  • Microphone boom mount on top of the PA6SR eliminates the need for a second mic stand for your microphone. (Requires optional hardware)
  • Integrated handle into the top of the enclosure
  • Built in Compressor/Limiter prevents output distortion
  • -20dB pad switches on each XLR input allow high-level signals without distortion
  • 3 band EQ (High, Mid, Low) to adjust the sound to what you want to hear
  • Pass through on each channel acts as a built in splitter to send signals to a mixer snake or another PA6S
  • Two way speaker system: 6.5" neodymium high power woofer and 1.5" high efficiency Neolite tweeter allows for wider frequency response
  • 170 watt Class D amplifier
  • Lightweight: Innovative speaker and amplifier designs actually allows to reduce the weight of the PA6SR from its predecessors, while improving the performance

Key Features

  • Included mic stand adaptor insures a more stable & secure placement on any mic stand
  • Microphone boom mount on top of the PA6SR eliminates the need
  • Integrated handle into the top of the enclosure
  • Built in Compressor/Limiter prevents output distortion
  • -20dB pad switches on each XLR input
  • 3 band EQ (High, Mid, Low)

What's in the box:

  • Galaxy Audio PA6SR Powered Hot Spot Personal PA System with Built-in Wireless Receiver
  • AS-TVHH Hand Held Microphone
  • Galaxy Audio 3 Year Limited Warranty
