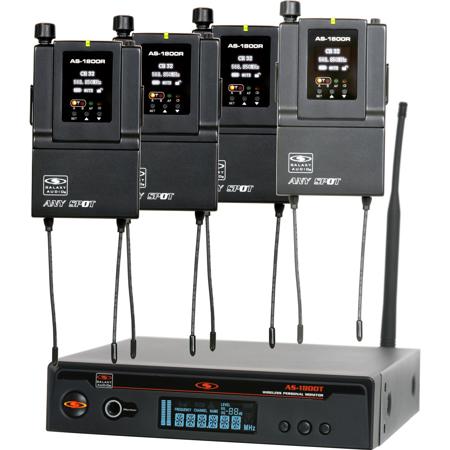

Galaxy Audio Any Spot AS-1800-4 32-Channel Wireless Personal Monitor Band Pack System, Includes AS-1800T Transmitter, 4x AS-1800R Body Pack Receiver and 4x EB4 Ear Buds, 640 Selectable Frequencies

SKU: GAS18004

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Galaxy Audio AS-1800-4 System Specifications

System
  • Band

    UHF

  • Frequencies

    32 Channels / 640 Selectable Frequencies

  • Transmitter Output Level

    30 mW or 100 mW

  • Operating Range

    Under Typical Conditions 300' (92m)
    Note: actual range depends on RF signal absorption, reflection, interference and battery characteristics

  • Audio Frequency Response

    +/-1dB 45Hz - 18kHz

  • Total Harmonic Distortion

    < 0.7% at 1kHz

  • Signal to Noise

    >105dB

  • Maximum Deviation Range

    +/-68kHz

  • Dynamic Range

    >90dB A-weighted

  • Operating Temperature

    Range: 14 to 122 deg. F (-10 to 50 deg. C)

Transmitter

Jump to...
  • Main Frame Size

    EIA STANDARD 1/2 U

  • Modulation Mode

    FM Stereo Modulation

  • RF Output

    30mW or 100mW

  • Max Audio Input Level

    +22dBV

  • Gain Adjustment Range

    6dB

  • Audio Input

    2x Line Level, XLR / 1/4" Combo Jack

  • XLR Input

    Balanced
    Pin 1: Ground (cable shield)
    Pin 2: Audio +
    Pin 3: No Audio -

  • Audio Output

    2x 1/4" Unbalanced Jack

  • Power Requirement

    12VDC at 500 mA supplied by external power supply

Receiver

Jump to...
  • Audio Output Level

    100 mW

  • Sensitivity

    6dBMuV, S/N>60dB at 25 deviation (mono)

  • Stereo Separation

    45dB (at 1 kHz)

  • Output Connector

    1/8" (3.5mm) Stereo Earphone Connector

  • Power Requirement

    2 "AA" size alkaline or rechargeable batteries

  • Battery Life

    About 7 hours (alkaline)

Ear Buds

Jump to...
  • Driver

    Single Titanium

  • Frequency Response

    20Hz to 20kHz +/-3dB

  • Impedance

    16 Ohms

  • Sensitivity

    102dB at 1kHz 126mV

  • Max Input Power

    5mW

  • Transducer Type

    Dynamic

  • Plug

    3.5mm TRS

  • Cord Length

    51" (129.54cm)

General

Jump to...
  • Dimensions (HxWxD)

    Transmitter: 1.7 x 8.2 x 8.1" (4.32 x 20.83 x 20.57cm)
    Receiver: 4.25 x 2.6 x 0.87" (10.80 x 6.60 x 2.21cm)

  • Weight

    Transmitter: 2.3 lbs (1.04kg)
    Receiver: 0.35 lbs (0.16kg) Without Batteries

  • UPC Code

    691281011009

About Galaxy Audio AS-1800-4 System

The AS-1800-4 band Pack System is designed with features for the professional. The AS-1800-4 Band Pack System makes it easy for any band to Get Personal. The system includes four receivers, four sets of ear buds and one transmitter. it is designed to get the whole band wireless in one package. The AS-1800-4 will allow a band to send one stereo mix to 4 individuals (additional receivers may be purchased). Additional transmitters may be purchased at a later date to add mixes.

- AS-1800T Transmitter -
The transmitter allows the user to select from 640 frequencies or 32 channels and a has XLR/1/4" combination inputs, 2-1/4" Line Outputs and selectable 30 or 100 mW transmitter output. The transmitter (AS-1800T) can be programmed with the name of the user, so it is easily identifiable to see which transmitter is for each performer. The AS-1800T also allows the user to change between name, frequency or channel on the display. There is a sensitivity selector for the transmitter input to match low and line level inputs.

- AS-1800R Receiver -
The receiver (AS-1800R) is built for the toughest conditions. It is constructed from Magnesium alloy, features diversity antennas, 150mW headphone output and Mixed Mono Mode. The LCD display shows channel number, frequency and battery status. The Mixed Mono Mode allows performers to adjust the balance of the Left and Right audio signals sent from the transmitter directly on the body pack. With Mixed Mono:

1. The performers can have their vocals in Input 1 and the band mix in Input 2 and adjust the volume of each independently to create their own personal mix, or
2. You can send two different monitor mixes from the board so each performer can decide which mix they want to hear on their belt pack

- EB4 Ear Buds -
The EB4 are the standard Ear Buds for the Galaxy Audio Wireless Personal Monitors. The EB4 includes three pairs of Silicon sleeves (small, medium and large) for fit and comfortable use. The EB4 Ear Buds have a standard 3.5mm stereo jack, allowing them to be used with any brand of Wireless Personal Monitor or MP3 Player.

Galaxy Audio AS-1800-4 System Features

  • AS-1800 Band Pack System:
  • 4 Receivers Included
  • Featuring Mixed Mono Mode
  • 640 Selectable Frequencies / 32 Selectable Channels
  • Backlit LCD (Displays Channel Number, Frequency, Name, Battery level of Receiver, L/R AF Input, Stereo/Mono and Lock)
  • UHF Phase Locked Loop
  • Stereo or Mono Transmission
  • Multiple Receivers can be used with 1 Transmitter
  • Naming Function
  • 30/100 mW Selectable Transmitter Output
  • Monitor Output
  • Single/Dual Rack Mount Kit Included
  • EB4 Ear Buds Included
  • 300' Range
  • AS-1800T Transmitter:
  • 640 Selectable UHF Frequencies
  • Send a Stereo or Mono Mix to Any Number of Receivers on Stage
  • True Thru Output-Continue to Mix to Other Transmitters
  • XLR or 1/4" Connection From Any Source Device
  • Easy to Read LCD Screen with Metering
  • Input Sensitivity
  • Front mounted 114 Output with Volume Control for Easy Monitoring
  • Multiple Transmission Output for the Toughest RF Environments
  • 2-1/4" Line Outputs (unbalanced)
  • Naming Function
  • 30/100 mW Selectable Transmitter Output
  • Detachable BNC Antenna
  • AS-1800R Receiver:
  • Mixed Mono Mode for Your Own Personal Mix
  • All Metal Chassis for Rugged Tour Use
  • High Contrast Backlit LCD Screen with Four Bar Battery Indicator
  • Built-in Limiter
  • Operates on 2 AA Batteries (up to 7 hours Alkaline)
  • Lightweight titanium driver EB4 Ear buds Included
  • True Diversity
  • Magnesium Alloy Construction
  • 45 Hz -18 kHz
  • Frequency Display
  • Volume Control
  • Battery Level Indicator
  • 150 mW Earphone Output
  • Button Lock
  • Squelch Adjustment
  • Volume Knob
  • Auto Mute
  • Stereo/Mono Switch
  • EB4 Ear Buds:
  • Stereo Personal Monitoring Earbuds
  • Single Titanium Drivers
  • High Fidelity with Extended Bass
  • Light and Comfortable
  • Aluminum Alloy Construction
  • Durable Cable

What's in the box:

  • AS-1800T Transmitter
  • 4x AS-1800R Bodypack Receiver (2 AA Batteries Not Included)
  • 4x EB4 Ear Buds (with S/M/L Silicon Sleeves)
  • Single/Dual Rack
  • Antennas
  • 2x 1/4 " Cables
  • Nylon Case
  • 12V DC Power Supply (for Transmitter)
  • Galaxy Audio 1 Year Warranty
