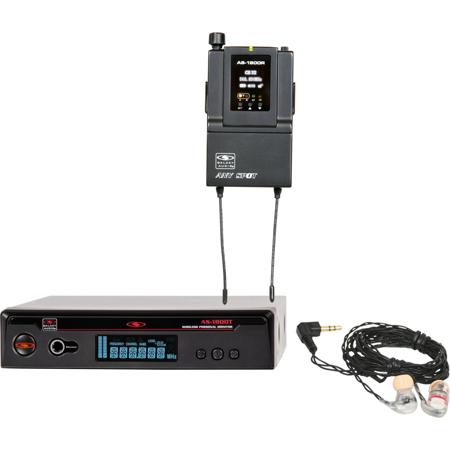

About Galaxy Audio AS-1806 System
The AS-1800 is designed with features for the professional.
- AS-1800T Transmitter -
The transmitter allows the user to select from 640 frequencies or 32 channels and a has XLR/1/4" combination inputs, 2-1/4" Line Outputs and selectable 30 or 100 mW transmitter output. The transmitter (AS-1800T) can be programmed with the name of the user, so it is easily identifiable to see which transmitter is for each performer. The AS-1800T also allows the user to change between name, frequency or channel on the display. There is a sensitivity selector for the transmitter input to match low and line level inputs.
- AS-1800R Body Pack Receiver -
The receiver (AS-1800R) is built for the toughest conditions. It is constructed from Magnesium alloy, features diversity antennas, 150mW headphone output and Mixed Mono Mode. The LCD display shows channel number, frequency and battery status. The Mixed Mono Mode allows performers to adjust the balance of the Left and Right audio signals sent from the transmitter directly on the body pack. With Mixed Mono:
1. The performers can have their vocals in Input 1 and the band mix in Input 2 and adjust the volume of each independently to create their own personal mix, or
2. You can send two different monitor mixes from the board so each performer can decide which mix they want to hear on their belt pack
- EB6 Ear Buds -
The EB6 features a single driver delivering full frequency performance. The EB6 has a cable over 4 feet long and the ear buds weigh 6g (less than 0.25 oz; excluding cable). The EB6 includes a durable plastic carrying case with three pairs of Silicon Sleeves (small, medium and large).
Galaxy Audio AS-1806 System Features
- AS-1800 System :
- Featuring Mixed Mono Mode
- 640 Selectable Frequencies / 32 Selectable Channels
- Backlit LCD (Displays Channel Number, Frequency, Name, Battery Level of Receiver, L/R AF Input, Stereo/Mono and Lock)
- UHF Phase Locked Loop
- Stereo or Mono Transmission
- Multiple Receivers can be used with 1 Transmitter
- Naming Function
- 30/100 mW Selectable Transmitter Output
- Monitor Output
- Single/Dual Rack Mount Kit Included
- EB4 Ear Buds Included
- 300' Range
- AS-1800T Transmitter:
- 640 Selectable UHF Frequencies
- Send a Stereo or Mono Mix to Any Number of Receivers on Stage
- True Thru Output-Continue to Mix to Other Transmitters
- XLR or 1/4" Connection From Any Source Device
- Easy to Read LCD Screen with Metering
- Input Sensitivity
- Front mounted 114 Output with Volume Control for Easy Monitoring
- Multiple Transmission Output for the Toughest RF Environments
- 2-1/4" Line Outputs (unbalanced)
- Naming Function
- 30/100 mW Selectable Transmitter Output
- Detachable BNC Antenna
- AS-1800R Receiver:
- Mixed Mono Mode for Your Own Personal Mix
- All Metal Chassis for Rugged Tour Use
- High Contrast Backlit LCD Screen with Four Bar Battery Indicator
- Built-in Limiter
- Operates on 2 AA Batteries (up to 7 hours Alkaline)
- Lightweight titanium driver EB4 Ear buds Included
- True Diversity
- Magnesium Alloy Construction
- 45 Hz -18 kHz
- Frequency Display
- Volume Control
- Battery Level Indicator
- 150 mW Earphone Output
- Button Lock
- Squelch Adjustment
- Volume Knob
- Auto Mute
- Stereo/Mono Switch
- EB6 Ear Buds:
- Wideband Dyna Driver ear buds reproduce the full frequency range with natural mids, full highs and rich bass
- They allow musicians to monitor their mix with full detail
- Three different sized pairs of silicon sleeves are provided for best fit and sound isolation
- Ergonomic mechanical structure ensures long time, low fatigue use
