What does the Mixed Mono Mode on the AS-1800R Receiver do?

The Mixed Mono Mode allows performers to adjust the balance of the Left and Right audio signals sent from the transmitter directly on the body pack. This feature gives performers the flexibility to create their own personal mix or to choose between two different monitor mixes from the soundboard.

What are the key features of the EB10 Ear Buds included in the system?

The EB10 Ear Buds feature dual performance drivers and a built-in crossover in each earbud for dynamic, high-definition sound and low noise. They have an ergonomic design for comfort and sound isolation, and come with a Silver Plated cable, Gold Plated connector, and a variety of Silicon Sleeves to fit any ear comfortably.

How many frequencies can the AS-1800T Transmitter select from?

The AS-1800T Transmitter can select from 640 frequencies across 32 channels, ensuring a clear signal with minimal interference for each user.

Can the AS-1800T Transmitter be personalized?

Yes, the AS-1800T Transmitter can be programmed with the user's name for easy identification. The display options allow for quick adjustments between name, frequency, or channel.

What is the construction material of the AS-1800R Receiver?

Each AS-1800R Receiver is crafted from Magnesium alloy for maximum durability and is equipped with diversity antennas and a powerful 150mW headphone output.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Galaxy Audio AS-1810-4 System Specifications

System
  • Band

    UHF

  • Frequencies

    32 Channels / 640 Selectable Frequencies

  • Transmitter Output Level

    30 mW or 100 mW

  • Operating Range

    Under Typical Conditions 300' (92m)
    Note: actual range depends on RF signal absorption, reflection, interference and battery characteristics

  • Audio Frequency Response

    +/-1dB 45Hz - 18kHz

  • Total Harmonic Distortion

    < 0.7% at 1kHz

  • Signal to Noise

    >105dB

  • Maximum Deviation Range

    +/-68kHz

  • Dynamic Range

    >90dB A-weighted

  • Operating Temperature

    Range: 14 to 122 deg. F (-10 to 50 deg. C)

Transmitter

Jump to...
  • Main Frame Size

    EIA STANDARD 1/2 U

  • Modulation Mode

    FM Stereo Modulation

  • RF Output

    30mW or 100mW

  • Max Audio Input Level

    +22dBV

  • Gain Adjustment Range

    6dB

  • Audio Input

    2x Line Level, XLR / 1/4" Combo Jack

  • XLR Input

    Balanced
    Pin 1: Ground (cable shield)
    Pin 2: Audio +
    Pin 3: No Audio -

  • Audio Output

    2x 1/4" Unbalanced Jack

  • Power Requirement

    12VDC at 500 mA supplied by external power supply

Receiver

Jump to...
  • Audio Output Level

    100 mW

  • Sensitivity

    6dBMuV, S/N>60dB at 25 deviation (mono)

  • Stereo Separation

    45dB (at 1 kHz)

  • Output Connector

    1/8" (3.5mm) Stereo Earphone Connector

  • Power Requirement

    2 "AA" size alkaline or rechargeable batteries

  • Battery Life

    About 7 hours (alkaline)

Ear Buds

Jump to...
  • Frequency Response

    20Hz to 18kHz

  • Driver

    Dual balanced armatures (Single Hi/Single Low) with a passive crossover

  • Impedance

    22 Ohms

  • Sensitivity

    At 1kHz: 120dB/mW

  • Max. Input Power

    150mW

  • Distortion

    Less than 0.3%

  • Cord length

    55" (139.70cm)

  • Connector

    Gold-plated Dia. 1/8" (3.5mm) phone, Stereo

General

Jump to...
  • Dimensions (HxWxD)

    Transmitter: 1.7 x 8.2 x 8.1" (4.32 x 20.83 x 20.57cm)
    Receiver: 4.25 x 2.6 x 0.87" (10.80 x 6.60 x 2.21cm)

  • Weight

    Transmitter: 2.3 lbs (1.04kg)
    Receiver: 0.35 lbs (0.16kg) Without Batteries
    Ear Buds: 0.25 oz (7.09g) (excluding cable)

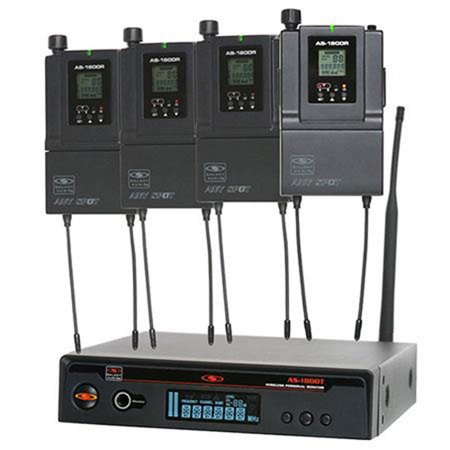

About Galaxy Audio AS-1810-4 System

Bring professional-grade audio monitoring to your live performances with the Any Spot AS-1810-4 32-Channel Wireless Personal Monitor Band Pack System. This comprehensive package is engineered to elevate the onstage experience for bands and performing artists, offering a seamless and user-friendly solution for personal audio monitoring.

The AS-1810-4 Band Pack System is a testament to innovation in audio technology, providing a durable and portable setup that ensures high-quality sound for up to four users. The system includes the robust AS-1800T Transmitter, four AS-1800R Body Pack Receivers, and four pairs of EB10 Professional Dual Driver Ear Buds, all designed to work together to deliver an unparalleled audio experience.

The AS-1800T Transmitter stands out with its ability to select from 640 frequencies across 32 channels, ensuring a clear signal with minimal interference. It features versatile XLR/1/4" combination inputs, dual 1/4" Line Outputs, and a selectable transmitter output of 30 or 100 mW. Personalization is key, as the transmitter can be programmed with the user's name for easy identification. The display options allow for quick adjustments between name, frequency, or channel, and a sensitivity selector matches the input to various audio sources.

Each AS-1800R Receiver is crafted from Magnesium alloy for maximum durability, equipped with diversity antennas and a powerful 150mW headphone output. The intuitive LCD display provides essential information at a glance, including channel number, frequency, and battery status. The innovative Mixed Mono Mode offers performers the flexibility to create their own personal mix by adjusting the balance of left and right audio signals, or to choose between two different monitor mixes from the soundboard.

The included EB10 Ear Buds are a high-quality audio accessory, featuring dual performance drivers and a built-in crossover in each earbud for dynamic, high-definition sound and low noise. Designed for comfort and sound isolation, the EB10's ergonomic design ensures they stay securely in place, even during the most energetic performances. The earbuds come with a Silver Plated cable, Gold Plated connector, and a variety of Silicon Sleeves to fit any ear comfortably.

Whether you're part of a band, a solo performer, or involved in theater productions, the Any Spot AS-1810-4 Wireless Personal Monitor Band Pack System is the ideal choice for reliable, crystal-clear personal audio monitoring. With its user-friendly interface and professional-grade components, this system is poised to transform your live sound experience.

Galaxy Audio AS-1810-4 System Features

  • AS-1800 System :
  • Featuring Mixed Mono Mode
  • 640 Selectable Frequencies / 32 Selectable Channels
  • Backlit LCD (Displays Channel Number, Frequency, Name, Battery Level of Receiver, L/R AF Input, Stereo/Mono and Lock)
  • UHF Phase Locked Loop
  • Stereo or Mono Transmission
  • Multiple Receivers can be used with 1 Transmitter
  • Naming Function
  • 30/100 mW Selectable Transmitter Output
  • Monitor Output
  • Single/Dual Rack Mount Kit Included
  • EB4 Ear Buds Included
  • 300' Range
  • AS-1800T Transmitter:
  • 640 Selectable UHF Frequencies
  • Send a Stereo or Mono Mix to Any Number of Receivers on Stage
  • True Thru Output-Continue to Mix to Other Transmitters
  • XLR or 1/4" Connection From Any Source Device
  • Easy to Read LCD Screen with Metering
  • Input Sensitivity
  • Front mounted 114 Output with Volume Control for Easy Monitoring
  • Multiple Transmission Output for the Toughest RF Environments
  • 2-1/4" Line Outputs (unbalanced)
  • Naming Function
  • 30/100 mW Selectable Transmitter Output
  • Detachable BNC Antenna
  • AS-1800R Receiver:
  • Mixed Mono Mode for Your Own Personal Mix
  • All Metal Chassis for Rugged Tour Use
  • High Contrast Backlit LCD Screen with Four Bar Battery Indicator
  • Built-in Limiter
  • Operates on 2 AA Batteries (up to 7 hours Alkaline)
  • Lightweight titanium driver EB4 Ear buds Included
  • True Diversity
  • Magnesium Alloy Construction
  • 45 Hz -18 kHz
  • Frequency Display
  • Volume Control
  • Battery Level Indicator
  • 150 mW Earphone Output
  • Button Lock
  • Squelch Adjustment
  • Volume Knob
  • Auto Mute
  • Stereo/Mono Switch
  • EB10 Ear Buds:
  • Professional Dual Driver Ear Buds
  • Allows musicians to monitor their mix with full detail
  • Design assures excellent sound isolation and maximum comfort during periods of extended wear
  • Three different sized pairs of silicon sleeves are provided for best fit and sound isolation
  • Nylon Soft Case Included

Product Documents

User Manual

Key Features

  • Comprehensive wireless personal monitor band pack system for live performances
  • Includes AS-1800T Transmitter with 640 selectable frequencies across 32 channels
  • Pack of four AS-1800R Body Pack Receivers with durable Magnesium alloy construction
  • Features Mixed Mono Mode for personalized audio balance adjustments
  • Comes with four pairs of EB10 Professional Dual Driver Ear Buds for high-definition sound
  • User-friendly interface and display options for easy system management

What's in the box:

  • AS-1800T Transmitter
  • 4x AS-1800R Bodypack Receiver (2 AA Batteries Not Included)
  • 4x EB10 Ear Buds (with S/M/L Silicon Sleeves & Case)
  • Single/Dual Rack
  • Antennas
  • 2x 1/4 " Cables
  • Nylon Case
  • 12V DC Power Supply (for Transmitter)
  • Galaxy Audio 1 Year Warranty
