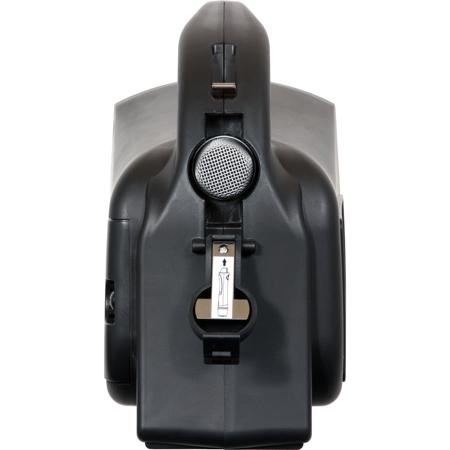

Galaxy Audio TV5X Traveler Portable Wireless PA Speaker System with UHF Receiver, Headset Microphone and Body Pack Transmitter

SKU: GATV5X0010S0

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Galaxy Audio TV5X System Specifications

Speaker

Speaker

Jump to...
  • Output Power

    40 W (RMS), 60 Watt (peak) at 4 Ohms

  • Max SPL

    104dB

  • Frequency Response

    70Hz - 16kHz (audio)

  • Battery

    12V, 2.9Ah (Lead-Acid) Rechargeable Battery

  • Battery Charging

    7 - 8 Hours

  • Speaker

    5" Neodymium Speaker

  • S/N Ratio

    70dB

  • Sensitivity

    88dB, 1W at 1 m

  • Audio Input

    1/4" Mic. In, 1/8" Aux In

  • Audio Output

    1/8" Aux Out

  • E.Q.

    Tone

  • Power Requirements

    20VDC 3.25A (universal 100-24VAC power supply included)

  • Antenna

    Built-in Antenna

  • Controls

    Master, Tone, Mic, Voice Priority, Aux in

  • Operating Distance

    150' (45.72m)

  • Stand Mountable

    Yes 5/8" / 27 mm microphone stand

Headset Mic

Jump to...
  • Sensitivity

    -65 +/- 4dB (0dB=1V/UBR 1KHz)

  • Frequency Response

    50 Hz - 18kHz

  • Output Impedance

    2K Ohms Max. (RL-2.2K Ohms)

  • Directionality

    Uni-directional

  • Working Voltage Range

    1 - 10V

  • Standard Working Voltage

    3V

  • Current Consumption

    250UA (Max.)

  • Maximum Input Sound Pressure

    110dB SPL

  • S/N Ratio

    >38dB

General

Jump to...
  • Dimensions

    Speaker (HxWxD): 13.11 x 6 x 9.7" (332.99 x 152.40 x 246.38mm)

  • Weight

    Speaker: 7 lbs (3.18kg) (Batteries Included)

About Galaxy Audio TV5X System

- TV5X Traveler Portable Wireless PA Speaker -
The TV5X is one of the latest models in the Traveler Series by Galaxy Audio. The Traveler Series is a line of powered speakers with built in batteries. All models in the Traveler Series can be run from either AC or the built in battery.

Most Traveler Series products are configurable to include built in CD/media players, UHF wireless microphones, Bluetooth receiver or Audio Link Transmitter. Each item is built to order. Travelers are designed to be portable and used in a wide array of applications, like classrooms, churches, meeting rooms, graveside, auctions, among many others.

The TV5X has a built in 40 watt power amplifier with a 5" full range woofer and tone control. The TV5X, like other models in the Traveler Series, can be configured with up to two UHF wireless receivers or a Bluetooth receiver. Each UHF receiver has two different handheld mics and two body pack transmitters to choose from. There is also an optional MP3 player available which can play MP3s from USB or SD card.

The TV5X has a 1/4" mic input with volume control, 1/8" input and output and 4 bar battery level indicator. The built in Voice Priority, when activated, will lower the volume of the music when it receives a transmission from a wireless or hardwired microphone. This is convenient as you will not need to adjustment the volume of your music when needing to make announcements.

The TV5X is constructed from durable plastic and can be on a table top or set on an optional tripod stand. The TV5i has a built in handle and shoulder strap for easy transport. The TV5X weighs 7lbs.

- TV5-REC Single Receiver -
Galaxy Audio's Single Receiver for the Traveler Portable PA Systems will allow you to use a wireless microphone with a receiver card. This now means, with the Single Channel Receiver loaded into your Traveler System, you can operate a wireless microphone! With a Single Volume control, you can easily set the wireless microphone and with 96 selectable frequencies each, you are sure to find that the Single Receiver will work great for your next event.

• Single Receiver for Wireless Transmitter
• TV5-REC Works With TV8, TV5i & TV5X Models
• 96 Selectable Channels
• Channel Selector
• RF and AF Indicator
• Volume Control
• LCD Display
• Easy Aftermarket Installation

- HS-U3BK Uni Headset -
This uni-directional headset comes standard with the ECM, PSE, TRC, DHT, DHX, CTS & Traveler Headset Systems. It's comfortable wrap around design goes over both ears and helps ensure that this mic will stay in place. The HS-U3BK can be wired to work with transmitters made by Galaxy Audio, Shure, Sennheiser, AKG and Audio Technica, as well as most other brands of wireless microphone systems.

• Uni directional headset microphone
• Hooks over both ears

- TVMBP Body Pack Transmitter -
• 96 Selectable Channels
• Channel Selector
• LCD Display
• Built-in-Antenna
• 3-Bar Battery Condition indicator
• Hi/Low Volume + Mute Switch
• Functions from 2 AA Batteries (About 14 hours)
• (Batteries not included)
• DC Charging Input
• 8.3 oz. (280g)

Galaxy Audio TV5X System Features

  • 40 Watts/60 Watts Peak
  • 5" Neodymium Speaker
  • Built-in Battery and Charger
  • One 1/4" Wired Microphone Input
  • 1/8" Output
  • Master Volume Control
  • Universal Power Supply
  • Four-bar battery indicator
  • Voice Priority
  • Small in Size for Portability
  • Built in Shoulder Strap
  • Battery Operation: 6.5-11 hours
  • Tripod/Mic Stand Mount

What's in the box:

  • Galaxy Audio TV5X Traveler Portable Wireless PA Speaker
  • UHF Receiver
  • Headset Microphone
  • Body Pack Transmitter
  • Galaxy Audio 3 Year Limited Warranty
