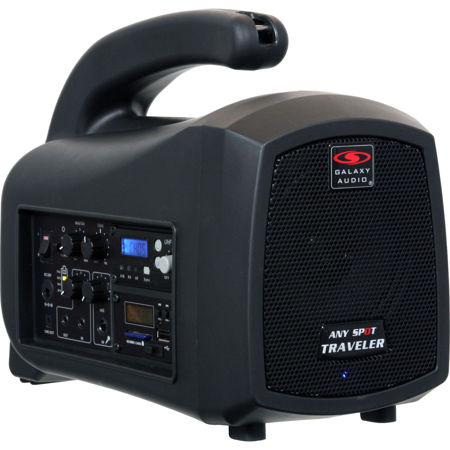

Galaxy Audio TV5X Traveler Portable Wireless PA Speaker System with UHF Receiver, Headset Microphone and Bodypack Transmitter, Frequency 640 to 664MHz

SKU: GATV5X0010SG

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Galaxy Audio TV5X System Specifications

Speaker

Speaker

Jump to...
  • Output Power

    40 W (RMS), 60 Watt (peak) at 4 Ohms

  • Max SPL

    104dB

  • Frequency Response

    70Hz - 16kHz (audio)

  • Battery

    12V, 2.9Ah (Lead-Acid) Rechargeable Battery

  • Battery Charging

    7 - 8 Hours

  • Speaker

    5" Neodymium Speaker

  • S/N Ratio

    70dB

  • Sensitivity

    88dB, 1W at 1 m

  • Audio Input

    1/4" Mic. In, 1/8" Aux In

  • Audio Output

    1/8" Aux Out

  • E.Q.

    Tone

  • Power Requirements

    20VDC 3.25A (universal 100-24VAC power supply included)

  • Antenna

    Built-in Antenna

  • Controls

    Master, Tone, Mic, Voice Priority, Aux in

  • Operating Distance

    150' (45.72m)

  • Stand Mountable

    Yes 5/8" / 27 mm microphone stand

Receiver

Jump to...
  • Oscillation Type

    PLL synthesized control OSC

  • Frequency Adjustment Range

    Pre-programmed, 96 switchable channels (maximum)

  • Carrier Frequency Range

    640 to 664 MHz

  • Switching Bandwidth

    Max. 12 MHz

  • Maximum Deviation

    50 kHz (with level limiting)

  • Frequency Response

    70 Hz to 16 kHz (wireless)

  • Dynamic Range

    110 dB

  • THD

    Less than 0.5%

  • Pre-Emphasis/De-Emphasis

    50 Mus

  • Squelch

    Tone key and noise lock dual-squelch

  • Antenna

    Type: Built-in
    Mode: Diversity

  • Sensitivity

    4 MuV at 30 dB SINAD

  • Double Intermediate

    110.6 MHz / 10.7 MHz

  • RF Spurious Rejection

    70 dB

  • Adjacent Channel Power

    68 dB at 250 kHz

  • IMD Rejection

    58 dB

  • Channel Select

    SCAN, UP, DOWN Keys

  • Operating Range

    160 - 230' (48.77 - 70.10m) (open field) with built-in antenna

  • Ambient Temperature

    14 to 122 deg. F (-10 to 50 deg. C)

Bodypack Transmitter

Jump to...
  • Microphone Type

    Headset or Lavalier

  • RF Output

    10mW

  • Spurious Emission

    Less than 250nW

  • Display Status

    LCD indicator displays channel or frequency, Battery Life

  • Channel Select

    SET, UP, DOWN Keys

  • AF Controls

    Mute Switch, Hi/Mid/Low Switch

  • Audio Input

    Mic In, Aux in

  • Battery

    1.2V (Ni-MH 1300 mAh) (2 AA type rechargeable battery)
    1.5V (2 AA Alkaline disposable)

  • Battery Life

    Alkaline Disposable: 14 hours Typical
    Ni-MH Rechargeable: 11 Hours typical

  • Housing

    Aluminum

Uni Headset

Jump to...
  • Sensitivity

    -65 +/- 4dB (0dB<=1V/UBR 1KHz)

  • Frequency Response

    50 Hz - 18kHz

  • Output Impedance

    2K Ohms Max. (RL-2.2K Ohms)

  • Directionality

    Uni-directional

  • Working Voltage Range

    1 to 10V

  • Standard Working Voltage

    3V

  • Current Consumption

    250UA (Max.)

  • Maximum Input Sound Pressure

    110dB SPL

  • S/N Ratio

    >38dB

General

Jump to...
  • Dimensions

    Speaker (HxWxD): 13.11 x 6 x 9.7" (332.99 x 152.40 x 246.38mm)
    Receiver (LxWxH): 5.25 x 3.46 x 1.45" (133.35 x 87.88 x 36.83mm)
    Bodypack Transmitter: 3.48 x 2.52 x 1.04" (88.39 x 64.01 x 26.42mm)

  • Weight

    Speaker: 7 lbs (3.18kg) (With Batteries)
    Receiver: 3.88 oz (110.00g)
    Bodypack Transmitter: 4.48 oz (127.01g) (With Battery)

  • UPC Code

    691281009037

About Galaxy Audio TV5X System

- TV5X Traveler Portable Wireless PA Speaker -
The TV5X is one of the latest models in the Traveler Series by Galaxy Audio. The Traveler Series is a line of powered speakers with built in batteries. All models in the Traveler Series can be run from either AC or the built in battery. Most Traveler Series products are configurable to include built in CD/media players, UHF wireless microphones, Bluetooth receiver or Audio Link Transmitter. Each item is built to order. Travelers are designed to be portable and used in a wide array of applications, like classrooms, churches, meeting rooms, graveside, auctions, among many others.

The TV5X has a built in 40 watt power amplifier with a 5" full range woofer and tone control. The TV5X, like other models in the Traveler Series, can be configured with up to two UHF wireless receivers or a Bluetooth receiver. Each UHF receiver has two different handheld mics and two body pack transmitters to choose from. There is also an optional MP3 player available which can play MP3s from USB or SD card. The TV5X has a 1/4" mic input with volume control, 1/8" input and output and 4 bar battery level indicator. The built in Voice Priority, when activated, will lower the volume of the music when it receives a transmission from a wireless or hardwired microphone. This is convenient as you will not need to adjustment the volume of your music when needing to make announcements.

The TV5X is constructed from durable plastic and can be on a table top or set on an optional tripod stand. The TV5i has a built in handle and shoulder strap for easy transport. The TV5X weighs 7lbs.

- HS-U3BK Uni Headset -
This uni-directional headset comes standard with the ECM, PSE, TRC, DHT, DHX, CTS & Traveler Headset Systems. It's comfortable wrap around design goes over both ears and helps ensure that this mic will stay in place. The HS-U3BK can be wired to work with transmitters made by Galaxy Audio, Shure, Sennheiser, AKG and Audio Technica, as well as most other brands of wireless microphone systems.

Galaxy Audio TV5X System Features

  • TV5X Traveler Portable Wireless PA Speaker
  • 40 Watts/60 Watts Peak
  • 5" Neodymium Speaker
  • Built-in Battery and Charger
  • Up to 3 Wireless Microphones Optional
  • One 1/4" Wired Microphone Input
  • 1/8" Output
  • Master Volume Control
  • Universal Power Supply
  • Four-bar battery indicator
  • Voice Priority
  • Small in Size for Portability
  • Built in Shoulder Strap
  • Battery Operation: 6.5-11 hours
  • Tripod/Mic Stand Mount
  • TVMBP Bodypack Transmitter
  • 96 Selectable Channels
  • Channel Selector
  • LCD Display
  • Built-in-Antenna
  • 3-Bar Battery Condition indicator
  • Hi/Low Volume + Mute Switch
  • Functions from 2 AA Batteries (About 14 hours) (Batteries not included)
  • DC Charging Input
  • 8.3 oz. (280g)
  • HS-U3BK Uni Headset
  • Uni directional headset microphone
  • Hooks over both ears

What's in the box:

  • Galaxy Audio TV5X Traveler Portable Wireless PA Speaker
  • TV5-REC UHF Receiver
  • HS-U3BK Headset Microphone
  • TVMBP Bodypack Transmitter- Galaxy Audio 3 Year Limited Warranty
