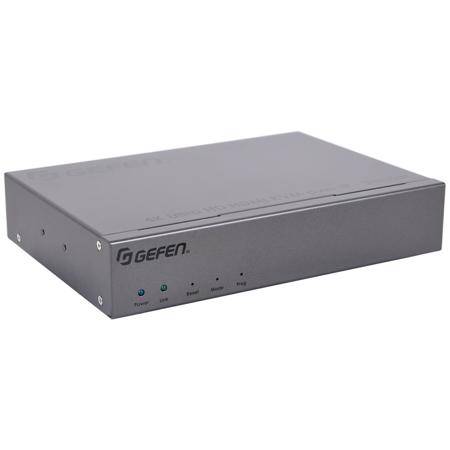

Gefen 4K Ultra HD HDMI KVM Over IP Sender

From the renowned brand Gefen, the 4K Ultra HD HDMI KVM Over IP Sender is a high-quality, durable, and innovative solution for AV routing and distribution over a standard Gigabit Local Area Network. This user-friendly and reliable product is part of Gefen's second-generation KVM line, offering enhanced performance, features, and functionality.

Designed for superior image quality, it supports 4K Ultra HD with HDR and has built-in scalers for optimal image adjustment. The product boasts a maximum input resolution of 4K 60 Hz 4:2:0 and a maximum output resolution of 4K 30 Hz 4:4:4. With HDCP 2.2 and 1.4 compatibility, it ensures secure digital content transmission.

The Sender unit is equipped with a local video output for source monitoring and supports 7.1 channels of HBR (High Bit Rate) lossless and LPCM digital audio. It allows independent routing of USB, RS-232, IR, and audio between any Sender and Receiver unit, providing users with the flexibility to control any of the sources and displays within their network.

The Receiver unit features a built-in scaler and a powerful video wall controller, accommodating any screen configuration up to 16x16. It also includes digital and analog audio break-out to enhance the impact of presentations. The integrated USB hub, with two USB 2.0 and two USB 1.1 ports, supports touch panels, keyboard, mouse, and other devices, making it ideal for collaborative and interactive installations.

The product's KM Emulation feature facilitates real-time, simultaneous Keyboard and Mouse control of each source from all connected workstations. Power-over-Ethernet allows the Sender and Receiver units to be powered through a standard PoE-enabled IP network switch, eliminating the need for external power supplies.

The Gefen 4K Ultra HD HDMI KVM Over IP Sender is designed for use with the Gefen Syner-G software, simplifying initial IP configuration. It supports cable runs up to 100 meters (330 feet) from a Sender to a Receiver or from a Sender or Receiver to the network switch. The built-in 2-port Gigabit switch on the Receiver allows daisy-chaining of additional Receivers or other IP-enabled devices.

This product is perfect for high performance AV and signage systems in various settings, including sports bars, clubs, restaurants, boardrooms, command and control centers, museums, airports, classrooms, auditoriums, hotels, and retail establishments. The Sender unit features a 1U tall and half-rack-width enclosure, making it suitable for rack-mounting, surface-mounting, or placement on a shelf. The low-profile Receiver unit is also versatile in its placement options.

Experience the power and flexibility of Gefen's 4K Ultra HD HDMI KVM Over IP Sender, a solution that fully addresses the ever-growing needs of systems integrators.
