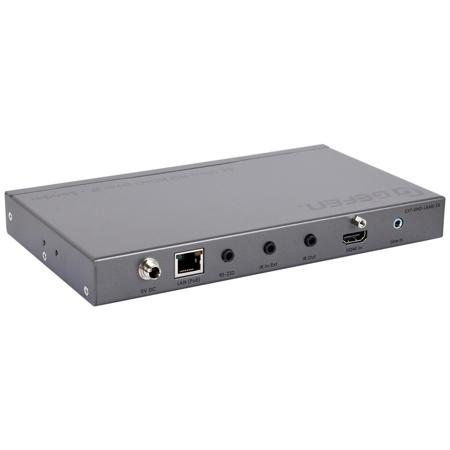

Gefen 4K Ultra HD HDMI Over IP Sender

SKU: GE4KULHIPSDP MFR: EXT-UHD-LANS-TX
Earn VIP Reward Points

Key Features

  • Distribute 4K Ultra HD HDMI video over IP networks with this Gefen HDMI over IP Sender.
  • Achieve seamless connectivity using the Gefen Sender's HDMI, RS-232, and IR ports.
  • Power your Gefen 4K Sender via 5V DC or PoE for flexible installation options.
  • Enjoy a reliable HDMI over IP transmission with a MTBF of 50,000 hours, backed by Gefen.
  • Control devices remotely by using the IR extension port on this Gefen HDMI sender.
  • Easily mount your Gefen HDMI Sender with included brackets for a clean setup.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Gefen Sender Specifications

  • Video Input Connector

    (1) HDMI Type A 19-pin, female, locking

  • Line Input

    (1) 3.5mm mini-stereo jack

  • RS-232 Port

    (1) 3.5mm stereo jack, female, DB-9 adapters included

  • IR In/Ext

    (1) 3.5mm mini-stereo jack

  • IR Out

    (1) 3.5mm mini-mono jack

  • Ethernet Port

    (1) RJ-45, shielded, PoE

  • Mode Button

    (1) tact-type, recessed

  • Reset Button

    (1) tact-type, recessed

  • Program Button

    (1) tact-type, recessed

  • Program Select Switch

    (1) slide-type, recessed

  • Link Indicator

    (1) LED, green

  • Power Indicator

    (1) LED, blue

  • Power Supply Jack

    5V DC, 2.5mm pin and 5.5mm barrel, locking

  • Power Requirement

    5V DC, or PoE (802.3af standard)

  • Power Consumption (maximum)

    6.1W

  • Operating Temperature

    32 to 122 deg. F (0 to 50 deg. C)

  • Operating Humidity

    5% to 90% RH, non-condensing

  • Storage Temperature

    -4 to 185 deg. F (-20 to 85 deg. C)

  • Storage Humidity

    0% to 95% RH, non-condensing

  • MTBF

    50000 hours

  • Dimensions (WxHxD)

    8.4 x 1.0 x 4.9" (21.34 x 2.54 x 12.45cm) (without connectors or feet)

  • Weight

    1.6 lbs (0.73kg)

  • UPC Code

    888814999709

About Gefen Sender

Become a part of the digital revolution with Gefen's 4K Ultra HD HDMI Over IP Sender. This high-quality, durable, and reliable device is a part of Gefen's AV over IP solutions, known for their high performance, scalability, and secure AV routing and distribution over a standard Gigabit Local Area Network.

The Gen 2.0 KVM products, including this HDMI Over IP Sender, are packed with innovative features and enhanced performance. They support 4K Ultra HD with HDR, have built-in scalers, and offer video-wall control. They also provide independent RS-232, IR, and audio routing, and are backward-compatible with Gefen's first-generation products.

This user-friendly device supports a maximum input resolution of 4K 60 Hz 4:2:0 and a maximum output resolution of 4K 30 Hz 4:4:4. It also supports HDCP 2.2 and 1.4, and can pass through 7.1 channels of HBR (High Bit Rate) lossless and LPCM digital audio.

The HDMI Over IP Sender allows for independent routing of video, RS-232 2-way IR, and audio between any Sender and Receiver unit. This gives users the flexibility to control any of the sources and displays within their network.

The Receiver features a built-in scaler to optimize the image for various displays and viewing environments. It also includes a powerful video wall controller that can accommodate any screen configuration up to 16x16. This provides great flexibility in sizing and manipulating live and signage content in demanding installations.

The HDMI Over IP Sender also features Power-over-Ethernet, allowing the Sender and Receiver units to be powered through a standard PoE-enabled IP network switch, eliminating the need for external power supplies.

When used with the EXT-CU-LAN Matrix Controller, system configuration is automated and quick. The EXT-CU-LAN also enhances network security by separating the control and AV networks.

The HDMI Over IP Sender is designed for use with the Gefen Syner-G software, which simplifies initial IP configuration. The Sender and Receiver can be used as extenders in a one-to-one system, or as nodes in a virtual matrix environment where any source can be routed to any or all displays.

This device is perfect for high-performance AV and signage systems in various settings, including sports bars, clubs, restaurants, boardrooms, command and control centers, museums, airports, classrooms, auditoriums, hotels, and retail establishments.

The low-profile Sender and Receiver units can be rack-mounted using the Gefen EXT-RACK-1U-GRY rack tray (available separately), surface-mounted, placed on a shelf, or tucked away in an equipment closet or behind a display.

Experience the future of audio and video transmission with Gefen's 4K Ultra HD HDMI Over IP Sender.

Gefen Sender Features

  • Extends HDMI, RS-232, analog audio, and IR, using a Gigabit Local Area Network
  • Independent video, RS-232, IR, and audio routing
  • Backward-compatible with first generation Gefen AV over IP products
  • Supports input resolutions up to 4K 60Hz 4:2:0
  • Supports output resolutions up to 4K 30Hz 4:4:4
  • Supported HDMI Features: HDR; HDCP 2.2 and 1.4; Deep Color; Lip-Sync; Uncompressed LPCM digital audio up to 7.1 channels; Up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos, Dolby, TrueHD, DTS:X and DTS-HD Master Audio
  • When used with Gefen DVI-to-HDMI cables (not included), supports the use of DVI sources and DVI displays up to 1080p Full HD and 1920x1200 (WUXGA)
  • Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
  • Built-in video wall controller accommodates any number of rows and columns up to 16x16
  • Built-in Audio De-Embedder on Receiver breaks out 2 channel analog, 2 channel PCM, and up to 5.1 channels of Bitstream audio from the HDMI signal, allowing the audio content to be sent to external amplifiers and music distribution systems for added impact
  • MFU (Mass-Firmware-Update), quick and automated configuration, and enhanced control capabilities and system security when used with the Gefen EXT-CU-LAN Matrix Controller
  • Enhanced API for added functionality with third-party control systems
  • Built-in web interface, Telnet, and UDP
  • Compatible with the Gefen Keyboard Switching Controller
  • Supports 39,900 Senders and a combination of over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch
  • 802.3af standard Power-over-Ethernet allows the Sender and Receiver units to be powered through a standard PoE-enabled IP network switch, without the need for external power supplies
  • Two-port Gigabit Ethernet switch built into the Receiver unit
  • Mode switch on Sender for sharpness or motion-optimization of image
  • Field-updatable firmware via EXT-CU-LAN controller or the built-in web server interface
  • Locking power supply connectors
  • Low-profile, half-rack width Sender and Receiver enclosures are rack-mountable using EXT-RACK-1U-GRY
  • Sender and Receiver can also be surface-mounted using the included L-brackets
  • Low profile Receiver enclosure features an IR Extender port and can be hidden away behind the display

Key Features

  • Distribute 4K Ultra HD HDMI video over IP networks with this Gefen HDMI over IP Sender.
  • Achieve seamless connectivity using the Gefen Sender's HDMI, RS-232, and IR ports.
  • Power your Gefen 4K Sender via 5V DC or PoE for flexible installation options.
  • Enjoy a reliable HDMI over IP transmission with a MTBF of 50,000 hours, backed by Gefen.
  • Control devices remotely by using the IR extension port on this Gefen HDMI sender.
  • Easily mount your Gefen HDMI Sender with included brackets for a clean setup.

What's in the box:

  • Gefen 4K Ultra HD HDMI Over IP Sender
  • 5V 2.6A Power Supply
  • 3.5mm to DB-9 Adapter
  • IR Emitter
  • 4x Self-Adhesive Rubber Feet
  • 2x L-Shaped Mounting Brackets
  • 4x Machine Screws for L-Shaped Mounting Brackets
  • Quick-Start Guide
  • Gefen 3 Year Warranty
