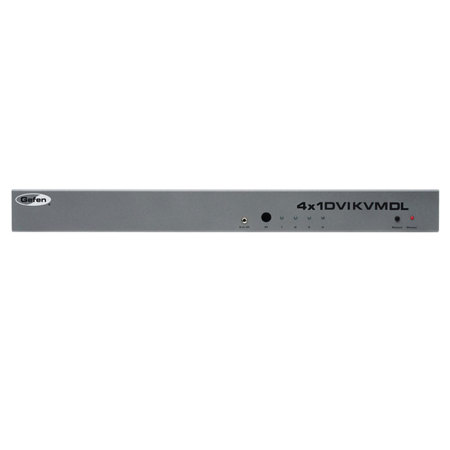

Gefen 4x1 DVI KVM Dual-Link/Single-Link Switcher

Switch between any four Mac or PC computers using a single Dual Link DVI Display
Gefen's 4x1 DVI KVM DL Switcher provides you with greater flexibility in integrating cross-platform computer equipment easily and without networking. It enables you to switch easily and reliably between any combination of four dual link or single link DVI computers using one dual link DVI-compliant display. The 4x1 DVIKVM DL Switcher supports USB 2.0 for USB keyboard/mouse and other high-speed peripherals. Audio is switched for each computer as well, allowing for the creation of multimedia desktop environments and you can even choose between a Macintosh or PC keyboard/video/mouse combination. Switching can be controlled through the included IR remote, the front panel source selector button or the built-in serial port using RS-232 serial communications.

How It Works
Simply plug your display, keyboard/mouse and audio peripherals directly into the 4x1 DVI KVM DL Switcher's outputs and connect the supplied cables to the four computers you want to control. Select the computer you want to work on using the remote that is supplied with the unit.

Note

Switching between computers is done can be done using the source selector button on the front panel or via the included infrared remote control.

Features
• Switches a workstation between any four computers with support for Dual-link or Single-link DVI, USB 2.0 and audio signals
• Saves space on your desktop
• Supports 1080p Full HD at 120Hz and dual-link resolutions up to 3840 x 2400 (WQUXGA) or single-link resolutions up to 1920 x 1200 (WUXGA)
• Supports DDWG standards for DVI monitors
• Advanced EDID management for rapid integration of sources and displays
• Locking Power Supply
• Switching is controlled via included IR remote, RS-232 commands or Front-panel buttons
• Rack-mountable
