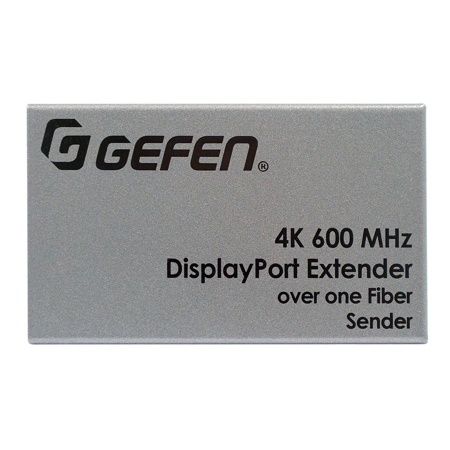

Gefen 600' 4K Ultra HD 600MHz DisplayPort 1.2 Extender Over One SC-Terminated Fiber Optic Cable

SKU: GEDP4K6001SC MFR: EXT-DP-4K600-1SC
Earn VIP Reward Points

Key Features

  • Experience reliable connection with this DisplayPort extender over a single fiber cable.
  • Enjoy high resolution video up to 4K Ultra HD at 60Hz with zero latency.
  • Set up is easy; simply connect and extend your DisplayPort signal up to 600 feet!
  • Wide compatibility: Works seamlessly with various DisplayPort-enabled devices.
  • Achieve long range signal extension without compromising video quality or reliability.
  • Perfect for broadcast equipment, ensuring pristine video across extended distances.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Gefen EXT-DP-4K600-1SC Specifications

  • Video

    3840x2160 at 60 Hz
    WQUXGA (4K; 3840x2400 at 60Hz)
    4K Ultra HD (3840x2160 at 60Hz)
    4K Cinema - DCI (4096x2160 60Hz)

  • Input (Sender)

    1x DisplayPort, 20-pin, female

  • Output (Receiver)

    1x DisplayPort, 20-pin, female

  • Link Connector (Sender/Receiver)

    1x SC-type, female

  • Link Indicator (Sender/Receiver)

    1x LED, green

  • Power

    1x 1.3mm barrel jack

  • Video Bandwidth

    21.6Gbps (5.4 Gbps per lane, 4 lanes)

  • Optical Wavelength

    850nm

  • Power Input

    5V DC

  • Power Consumption (Sender)

    1.75W

  • Power Consumption (Receiver)

    2W

  • Optical Power Budget

    6.5dB

  • Operating Temperature

    32 to 122 deg. F (0 to 50 deg. C)

  • Operating Humidity

    10% to 85% RH, non-condensing

  • Storage Temperature

    -4 to 158 deg. F (-20 to 70 deg. C)

  • Storage Humidity (RH)

    10% to 85% RH, non-condensing

  • Dimensions (W x H x D)

    Sender and Receiver: 1.75 x 0.87 x 3.12" (4.45 x 2.21 x 7.92cm) (Not including connectors)

  • Weight

    4.8 oz (136.08g) (each)

  • UPC Code

    888814999631

About Gefen EXT-DP-4K600-1SC

From the trusted brand Gefen, comes the advanced DisplayPort 1.2-compliant extender, an innovative solution for extending HDCP 2.2, HDCP 1.4, and DPCP compliant DisplayPort 600 MHz 4K audio/video over fiber. This high-quality extender supports a wide range of resolutions including WQUXGA (3840 x 2400), 4K Ultra HD (3840 x 2160), and 4K Cinema - DCI (4096 x 2160), up to a 60 Hz frame rate and 4:4:4 Chroma sub-sampling.

Designed to provide long-distance transmission, this reliable extender can stretch the AV signal up to 200m (660'), over a single strand of SC-terminated 50/125 Mum OM3 or superior multi-mode fiber-optic cable. It ensures full electrical isolation between the Sender and the Receiver, meeting the rigorous safety and EMC requirements for critical applications.

This durable extender is compliant with medical safety and EMC standards EN 60601-1 and EN 60601-1-2 when used with the Gefen EXT-PS52AU-M-1.3-6-AL power supply. It offers versatile power options, capable of being powered from sources and displays featuring powered USB ports or by using external power supplies.

The Gefen DisplayPort 1.2-compliant extender is designed for ease of use. In most applications, the Sender and Receiver are plug-and-play, requiring no complex set-up. For unique requirements of a source and/or a display, both units feature user-friendly EQ switches for signal optimization.

Supporting popular DisplayPort technologies such as Multi-streaming and Auxiliary Channel, this extender is ideal for connecting multiple daisy-chained displays to one DisplayPort output and transporting data and controls along with the AV signal. Its compact and sturdy metal enclosures are easy to install, can be discreetly hidden, and provide added immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI).

Perfect for applications in medical imaging, military and industrial command and control rooms, flight simulators, digital signage, gaming, and other areas where 4K full-bandwidth uncompressed video or end-to-end electrical isolation are essential, the Gefen DisplayPort 1.2-compliant extender is a superior choice for your audio and video needs.

Gefen EXT-DP-4K600-1SC Features

  • Supports Full-Bandwidth 4K 60 Hz 4:4:4 (600MHz)
  • Fully compliant with DisplayPort 1.2 standard
  • Supports WQUXGA (4K; 3840 x 2400), 4K Ultra HD (3840 x 2160), and 4K Cinema - DCI (4096 x 2160) at 60Hz, 4:4:4
  • Extension up to 200m (660') over one (1) SC-terminated multi-mode OM3 or better (50/125um) fiber-optic cable
  • HDCP 2.2, HDCP 1.4, and DPCP compliant
  • Supports DisplayPort Auxiliary/l2C channel
  • Supports DisplayPort Multi-stream technology
  • Compact enclosures are easy to install and can be hidden away
  • Sturdy metal construction of the enclosures help provide further immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI)
  • Plug & Play - no configuration or set-up required for most applications
  • EQ switches on Sender & Receiver ensure compatibility with most sources & displays
  • Medical Safety (EN 60601-1) & EMC Compliant (EN 60601-1-2) when used with two EXT-PS52AU-M-1.3-6-AL power supplies (available separately)

Key Features

  • Experience reliable connection with this DisplayPort extender over a single fiber cable.
  • Enjoy high resolution video up to 4K Ultra HD at 60Hz with zero latency.
  • Set up is easy; simply connect and extend your DisplayPort signal up to 600 feet!
  • Wide compatibility: Works seamlessly with various DisplayPort-enabled devices.
  • Achieve long range signal extension without compromising video quality or reliability.
  • Perfect for broadcast equipment, ensuring pristine video across extended distances.

What's in the box:

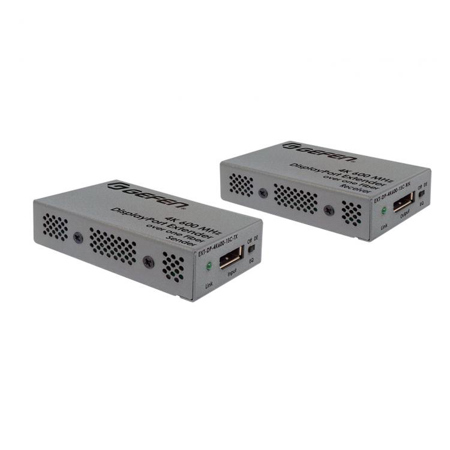

  • Gefen EXT-DP-4K600-1SC-TX Sender Unit
  • EXT-DP-4K600-1SC-RX Receiver Unit
  • 2x 6' DisplayPort Male-to-Male Cable
  • 2x 2.3' USB-to-DC Cable
  • 2x EXT-PS52AIP-1.3-6-AL Power Supplies and 2 Sets of Regional AC Plugs (US/UK/EU and AU)
  • Quick Start Guide
  • Gefen 2 Year Limited Warranty
