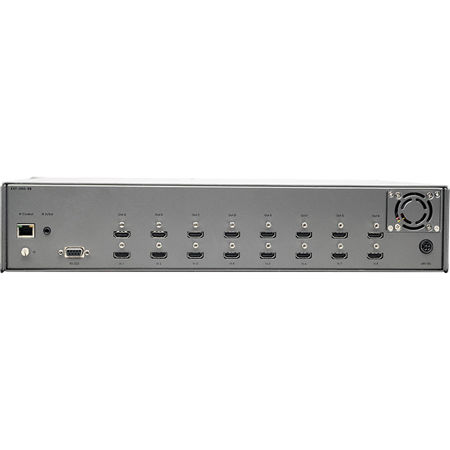

Gefen EXT-UHD-88 4K Ultra HD 8x8 HDMI Matrix Switcher with HDCP 2.2

The Gefen 4K Ultra HD 8x8 Matrix for HDMI routes eight 4K sources to any combination of up to eight 4K displays. This IP and serial controlled matrix acts as the central hub for Ultra HD and 4K Cinema-DCI AV systems. With support for Gefen's Syner-G software's Discovery and Show-Me features as well as advanced EDID management, the EXT-UHD-88 can be configured and deployed quickly into new and existing AV systems.

Video Support
Resolutions up to 4K Cinema-DCI (4096 x 2160 at 24 or 30 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 or 30Hz 4:4:4) are supported. This product is compliant with the latest HDCP 2.2 protocol as well as HDCP 1.4. The Gefen 8x8 Matrix also supports 1080p Full HD, 1920 x 1200 (WUXGA), 3DTV and Deep Color (up to 1080p resolution).

Audio Support
The EXT-UHD-88 supports Stereo and Multichannel digital audio including 7.1 channels of LPCM as well as High Bit Rate (HBR) digital audio formats such as Dolby TrueHD and DTS-HD Master Audio.

Control Interface
The Gefen Syner-G software' s Discovery and Show-Me features simplify initial IP configuration. Each source can be routed to any or all displays, using the front-panel push buttons or the included handheld IR Remote Control. The matrix can also be controlled via RS-232, Telnet, UDP and Gefen's intuitive and easy-to-use web server interface. An easy-to-read, super-bright OLED front panel display indicates routing status and IP settings.
