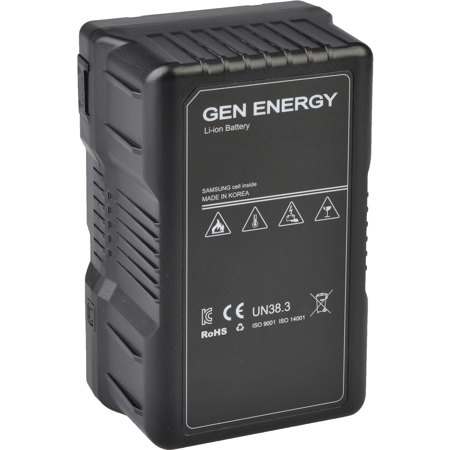

GEN Energy 290Wh 22A V-Mount Li-ion Battery
See all GEN Energy items

GEN Energy 290Wh 22A V-Mount Li-ion Battery

SKU: GEGB100290W
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

GEN Energy Battery Specifications

  • Mount/Series Type

    V-Mount

  • Cell chemistry

    Li-ion

  • Nominal voltage

    DC 14.4V

  • Capacity

    20Ah (290Wh)

  • Charge voltage

    16.8V

  • Charge current

    Max. 6A

  • Min. discharge power

    22A ( 264W)

  • D-Tap

    Output nominal voltage: 14.4V
    Min. Discharge power: 12A (144W)

  • USB

    Output voltage: DC 5.0V
    Max. load: 2.3A
    Auto power off: 30 minutes after no use

  • End voltage

    12V

  • Battery protection circuit

    Over-charge, Over-discharge, Over-current ( Cell and Pack separately), Over-temperature, Reverse charge

  • Ambient temperature

    To charge : 10 Degree C - 30 Degree C (32 Degree F - 104 Degree F recommended)
    To discharge: -20 Degree C - 50 Degree C (-4 Degree F - 122 Degree F), 10 Degree C - 40 Degree C (50 Degree F - 104 Degree F recommended)
    To store : -20 Degree C - 40 Degree C (-4 Degree F - 104 Degree F) (<85% RH) (less than 1 month)

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Quantity

    1

  • Battery Type

    Non-universal

  • Dimension

    3.82 x 5.75 x3.07" (97 x 146 x 78mm)

  • Weight

    3.35lbs (1.52kg) (Approx.)

About GEN Energy Battery

Charge
• Do not use the battery (Main, D-Tap, USB) while charging. If so, it may cause a charging error or damage the charger.
• Charge the battery to full before first use.
• When you charge this battery, Battery capacity LED gauge button will turn on indicating the capacity being charged.
• Lithium ion batteries have a slight self discharge, therefore it is recommended to charge prior to use.

Discharge
• Do not use the battery (Main, D-Tap, USB) while charging. If so, it may cause a charging error or damage the charger.
• Camera's low voltage alarm is recommended to set 13-13.5V
• Battery will stop at 12V to extend its life. Microwave transmitters with 5W outputs or over should be kept as far away from the battery. It may disrupt or stop supplying power.
• Be sure to remove the battery from the device after use. If so, it will consume large standby power and over-discharge protection may be activated.
• USB is activated by pushing Battery capacity LED gauge button. USB power will turn on automatically 30 minute after no use.
• Battery run time reduces when it is working below or above the recommended temperature range.

GEN Energy Battery Features

  • This battery has 22A Min. 264W, the biggest power in the world, which was born for ALEXA LF and Skypanel S60 full power working solution
  • You can use only 1 pc of 14.4V battery for ALEXA LF and 2 pcs of batteries for Skypanel S60
  • G-P22ALF plate is needed for ALEXA LF with this 1 battery
  • G-PB48 power bank is needed for Skypanel S60 with these 2 batteries
  • Shock-proof, Short-proof, Lowest impedance

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • You can use only 1 pc of 14.4V battery for ALEXA LF and 2 pcs of batteries for Skypanel S60
  • G-P22ALF plate is needed for ALEXA LF with this 1 battery
  • G-PB48 power bank is needed for Skypanel S60 with these 2 batteries
  • Shock-proof, Short-proof, Lowest impedance

What's in the box:

  • GEN Energy 290Wh 22A V-Mount Li-ion Battery
  • GEN Energy 2 Year Limited Warranty
