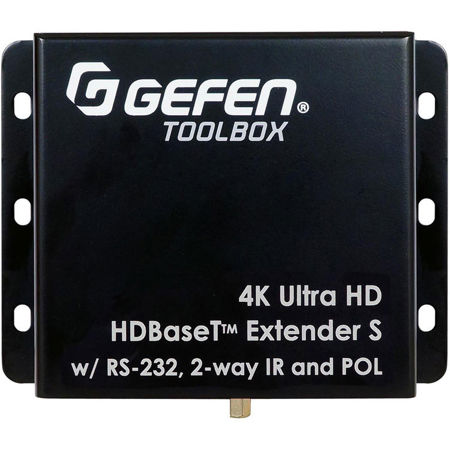

Gefen 4K Ultra HD Over One Cat5e/6A HDBaseT Extender with RS-232, 2-Way IR and Bidirectional POL

SKU: GEGTBUHDHBT MFR: GTB-UHD-HBT
Earn VIP Reward Points

Key Features

  • Extend your 4K Ultra HD signal with this HDBaseT Extender, ensuring top video performance.
  • Enjoy seamless control with 2-way IR and RS-232, perfect for remote equipment management.
  • This HDMI extender kit includes locking HDMI cables for a secure, reliable connection.
  • Power over HDBaseT (PoL) simplifies installation, reducing cable clutter and setup time.
  • Experience robust connectivity with Gefen's reliable KVM extender for demanding applications.
  • Backed by a 3-year warranty, this durable extender offers peace of mind and longevity.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2018-07-10T11:25:52

Rated 5 out of 5

Great product and ordering experience

Great experience with the order, delivery and pick up. Everything was simple.

Michael G.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Gefen HDBaseT Extender Specifications

  • Maximum Pixel Clock

    300MHz

  • Video Input Connector

    (1) HDMI Type A 19-pin, female, locking (Sender)

  • Video Output Connector

    (1) HDMI Type A 19-pin, female, locking (Receiver)

  • Link Connector

    (1) RJ-45, shielded (Sender/Receiver)

  • RS-232 Port

    Sender: (1) 3-pin Phoenix - DB-9 adaptor cable included
    Receiver: (1) 3-pin Phoenix - DB-9 adaptor cable included

  • IR Ext/In Port

    (1) 3.5mm mini-stereo jack (Sender/Receiver)

  • IR Extender type

    EXT-RMT-EXTIRN

  • IR Out Port

    (1) 3.5mm mini-mono jack (Sender/Receiver)

  • Power/Link Indicator LED

    (1) Bi-color: Blue/Green (Sender/Receiver)

  • Power Supply

    (1) 24V DC, locking

  • Power Consumption

    12W Maximum (Sender and Receiver combined)

  • Operating Temperature

    32 to 122 deg. F (0 to 50 deg. C)

  • Operating Humidity

    5% to 90% RH, non-condensing

  • Storage Temperature

    -4 to 185 deg. F (-20 to 85 deg. C)

  • Storage Humidity

    0% to 95% RH, non-condensing

  • MTBF

    50000 hours

  • Dimensions (WxHxD)

    Sender/Receiver: 4.3 x 1 x 3.2" (109.22 x 25.40 x 81.28mm)

  • Weight

    Sender/Receiver: 0.4 lbs (0.18kg) each

  • UPC Code

    888814999549

About Gefen HDBaseT Extender

FEATURED REVIEWS

Great product and ordering experience

By Michael G.

Great experience with the order, delivery and pick up. Everything was simple.

Explore the advanced capabilities of the GTB-UHD-HBT 4K Ultra HD Extender, a high-performance device that leverages Gefen's cutting-edge HDBaseT technology. This extender allows you to transmit HDMI signals up to 495 feet/150 meters at 1080p (8 bits) and up to 330 feet/100 meters at 4K, making it an ideal solution for high-definition video and audio transmission over long distances.

Designed with compact, low-profile enclosures, this device can be securely surface-mounted and conveniently concealed from view. It supports video resolutions up to 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0), ensuring crystal-clear visuals for your viewing pleasure. The GTB-UHD-HBT is compliant with the latest HDCP 2.2 protocol and HDCP 1.4, offering enhanced compatibility with a wide range of devices.

Experience superior audio quality with the GTB-UHD-HBT's support for Stereo and Multichannel digital audio, including 7.1 channels of LPCM and High Bit Rate (HBR) digital audio formats such as Dolby TrueHD and DTS-HD Master Audio. It also allows for TOSLINK Optical Digital Audio to be sent from the display side back to the source, and analog audio can be extended from the source side to the Receiver.

The GTB-UHD-HBT also offers IP & Serial Extension, providing RS-232 and 2-way IR extension between the Sender and the Receiver units. This feature facilitates the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit.

One of the standout features of this product is its Bi-Directional Power Over HDBaseT. Gefen's Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. This simplifies installation, especially in scenarios where an electrical outlet may not be readily available near the source or the display.

Please note that shielded (STP) CAT-5e or CAT-6A is recommended for optimal performance. Unshielded (UTP) CAT-5e or CAT-6A may be acceptable depending on cable quality but is not the preferred choice. Always ensure these cables are kept away from power lines and other sources of electromagnetic interference.

The GTB-UHD-HBT supports sources up to 4K 300 MHz (60 Hz 4:2:0 or 30 Hz 4:4:4). However, it is not compatible with sources that are capable of HDR or 4K 600 MHz (60 Hz 4:4:4).

Key HDMI features supported by this device include HDMI 2.0, HDCP 2.2 and 1.4, 12-bit Deep Color, LPCM 7.1 audio, Dolby Atmos, Dolby TrueHD, DTS:X and DTS-HD Master Audio pass-through, 3DTV pass-through, CEC pass-through, and Lip Sync pass-through. With the GTB-UHD-HBT 4K Ultra HD Extender, you can enjoy a seamless, high-quality audio and video experience.

Gefen HDBaseT Extender Features

  • IR extension from Sender to Receiver and from Receiver to Sender
  • Gefen Bi-Directional POL feature provides power to the Sender or the Receiver unit over the link cable - only one side will need external power
  • Uses Gefen's implementation of HDBaseT technology with enhanced features
  • Advanced EDID Management
  • Firmware updatable via RS-232
  • Locking power connector
  • Surface mountable

Key Features

  • Extend your 4K Ultra HD signal with this HDBaseT Extender, ensuring top video performance.
  • Enjoy seamless control with 2-way IR and RS-232, perfect for remote equipment management.
  • This HDMI extender kit includes locking HDMI cables for a secure, reliable connection.
  • Power over HDBaseT (PoL) simplifies installation, reducing cable clutter and setup time.
  • Experience robust connectivity with Gefen's reliable KVM extender for demanding applications.
  • Backed by a 3-year warranty, this durable extender offers peace of mind and longevity.

What's in the box:

  • Gefen GTB-UHD-HBT-S Sender Unit
  • GTB-UHD-HBT-R Receiver Unit
  • CAB-HD-LCK-06MM 6' Locking HDMI Cable (M-M)
  • EXT-RMT-EXTIRN IR Extender
  • EXT-IREMIT IR Emitter
  • 3-Pin Phoenix-to-DB-9 (M-F) Adapter
  • 3-Pin Phoenix-to-DB-9 (M-M) Adapter
  • EXT-PS24U1AIP-6 24V DC Locking Power Supply
  • Quick-Start Guide
  • Gefen 3 Year Warranty
