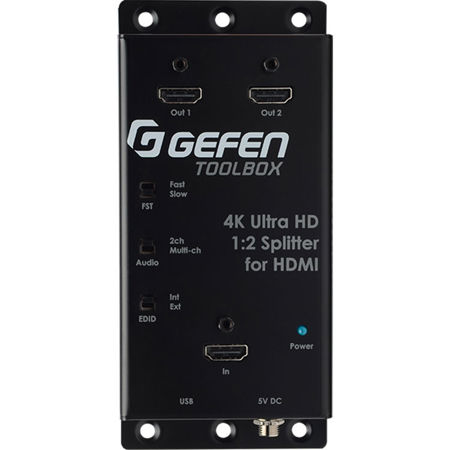

Gefen 4K DCI & Ultra HD 1:2 HDMI Splitter

Where cutting-edge technology meets professional-grade distribution, the Gefen GTB-HD4K2K-142C Ultra HD Splitter stands out as an essential tool for high-resolution video systems. This 1:2 HDMI splitter efficiently routes one Ultra HD source to two 4K Ultra HD displays, ensuring that your content is delivered with the highest fidelity and clarity.

Designed to support the latest in video resolution, the splitter accommodates 4K Ultra HD (3840 x 2160 at 60 Hz, 4:2:0 color space) and 4K DCI (4096 x 2160 at 24 and 30 Hz), as well as 1080p Full HD and 1920x1200 (WUXGA). This HDCP-compliant device not only maintains the integrity of the video signal but also supports Deep Color and 3D content, making it a versatile choice for a variety of multimedia setups.

The Gefen 1:2 Splitter boasts Fast Switching Technology (FST), a unique Gefen firmware implementation that enhances HDMI product performance. This technology significantly reduces the HDMI authentication process time, allowing for quick disconnecting, reconnecting, or powering down of HDTV displays without causing any picture loss in other displays within the same distribution system.

Audio quality is not compromised, as the splitter passes through multichannel digital audio, including 7.1 channels of LPCM and High Bit Rate (HBR) lossless formats. This ensures that both the visual and auditory elements of your media are presented as intended, providing a fully immersive experience.

For larger video distribution and signage applications, the Gefen splitter is engineered to support multilayer cascading. This capability allows for multiple splitters to be connected in series, enabling the distribution of HDMI content to hundreds of displays without compromising signal quality.

Setting up the Ultra HD 4K Splitter is straightforward. It is placed between the Ultra Hi-Def source and two Ultra HD displays, with the option to connect one or both outputs to additional Gefen splitters for a cascaded system. Each splitter requires connection to an AC outlet using the included power supply. Once the source, displays, and splitter(s) are powered on, the 4K picture materializes on all connected screens without the need for further configuration.

The Gefen GTB-HD4K2K-142C Ultra HD Splitter is a high-performance solution that caters to the operational requirements of any AV system, offering both built-in and passed-through EDIDs and the flexibility to configure the EDID for 2-channel or multichannel audio. Whether for a small home theater or a large-scale video distribution network, this splitter delivers uncompromised quality and reliability.
