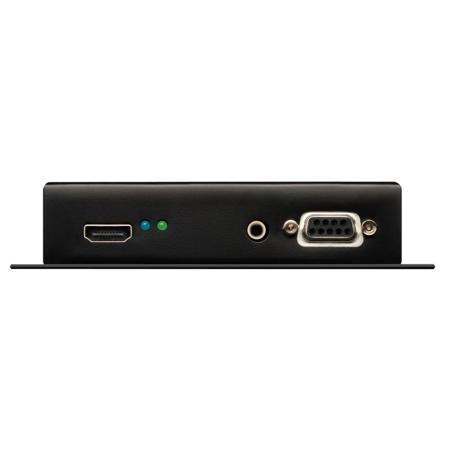

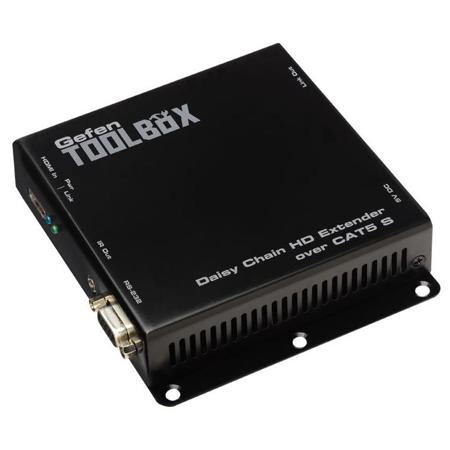

Gefen Daisy Chain HD Extender Over CAT5 Sender, Black

With Gefen's innovative Daisy Chain HD System, you can distribute high-definition video to multiple displays in a series using advanced Video Over IP techniques. This robust system allows you to connect up to 30 displays using CAT-5e cables in a Daisy Chain mode, and up to 100 displays when combining Daisy Chaining and Tree Topology distribution.

The system comprises three key modules: The Sender, which connects to the HD source, the Splitter module, which links to the Sender unit using a CAT-5e cable, and the Receiver unit, which connects to the Sender or Splitter via CAT-5e cable and to the display via an HDMI cable. The Splitter unit also features an HDMI output for direct display connection.

This user-friendly system simplifies the extension of HDMI and control signals, creating a sophisticated network of displays with the capability to route IR-control back from each display location to the source. RS-232 commands can also be distributed over this daisy-chained network to execute commands such as turning all displays on or off.

Each CAT-5e cable between the Source, Splitter, and Receiver units can be extended up to 330 feet (100 meters), supporting up to 100 high-definition displays at resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA). A guaranteed latency of less than a frame ensures that all displays reproduce audio and video in perfect sync.

Ideal for digital signage applications and commercial entertainment solutions, this system is perfect for establishments like bars, restaurants, and stores that play back the same content using multiple screens.

The Daisy Chain HD System supports HDMI features such as resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA), HDCP compliance, 12-bit Deep Color, LPCM 7.1 Audio, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio, 3DTV pass-through, and Lip Sync pass-through.

The system also features field-upgradable firmware (via the RS-232 port on the Sender unit), locking power supply connectors, and is wall or under-shelf mountable, making it a versatile and reliable choice for your audio and video needs.
