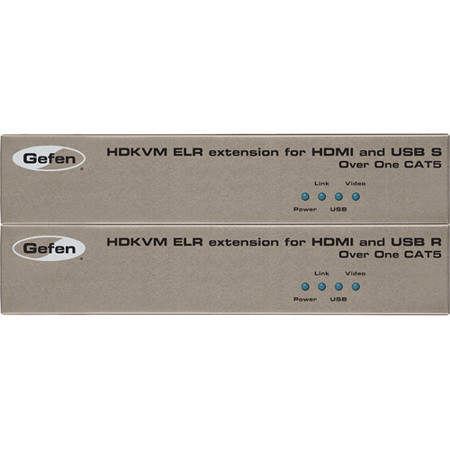

Gefen HDKVM Extra Long Range Extender for HDMI and USB Over One CAT-5 Cable

SKU: GEHDKVMELRE MFR: EXT-HDKVM-ELR
Earn VIP Reward Points

Key Features

  • Extend HDMI and USB signals up to 330 feet with this reliable KVM extender kit.
  • Enjoy seamless performance with 300MHz clock, ensuring crisp, clear video quality.
  • This HDMI KVM extender supports full HD, perfect for high-resolution applications.
  • Use locking HDMI cables for secure connections and prevent accidental disconnections.
  • This KVM switch includes USB ports for keyboard, mouse, and other peripherals.
  • This Gefen KVM extender offers simple setup with included power supplies and cables.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Gefen HDKVM Extender Specifications

  • Compatibility

    HDMI and USB Over One CAT-5 Cable

  • Maximum Pixel Clock

    300MHz

  • Maximum TMDS Clock

    300MHz

  • Video Input Connector

    HDMI Type A, 19-pin, female, locking (Sender)

  • Video Output Connector

    HDMI Type A, 19-pin, female, locking (Receiver)

  • USB Connector

    (1) Type B, female (Sender)
    (3) Type A, female (Receiver)

  • Link Connector

    RJ-45, Shielded (Sender/Receiver)

  • Service Connector for Field Upgrades

    USB mini-B (Sender / Receiver)

  • Power Supply

    5V DC, locking (Sender / Receiver)

  • Power Consumption

    10W (max.) (Sender / Receiver)

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Dimensions (WxHxD)

    8.5 x 1.75 x 4.5" (215.90 x 44.45 x 114.30mm)

  • UPC Code

    845344056319

About Gefen HDKVM Extender

Because professional setups demand high-quality, reliable connectivity solutions, the Gefen HDMI KVM Extra Long Range Extender is an innovative and user-friendly choice for extending HDMI and USB signals. This durable device is capable of transmitting high-definition content and USB data up to an impressive distance of 330 feet (100 meters) using a single CAT-5 cable, making it an ideal solution for large-scale venues and complex installations.

With support for a variety of resolutions, including 4K Ultra HD (3840 x 2160 at 60Hz 4:2:0 or at 30Hz 4:4:4), 4K Cinema-DCI (4096 x 2160 at 24 or 30Hz), 1080p Full HD, and 1920 x 1200 (WUXGA), this extender ensures that your video content is displayed with crystal-clear quality. The HDCP 1.4 protocol compliance guarantees secure content delivery, preserving the integrity of digital signals.

The receiver unit of this extender is particularly versatile, accommodating up to three USB devices. This allows for seamless access to essential peripherals such as keyboards, mice, touch-panels, printers, scanners, and external storage media. It's an excellent choice for remote workstations, interactive digital signage, and touch-screen applications where distance from the source is a challenge.

Gefen's ELR (Extra Long Range) technology, which incorporates the robust HDBaseT technology with advanced EDID Management capabilities, ensures that HDMI and USB signals are transported efficiently over the same CAT-5e cable. This not only reduces cabling costs but also simplifies installation, providing a more streamlined and reliable setup.

In terms of audio support, the extender is equipped to handle LPCM 7.1 audio, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio pass-through, ensuring that high-fidelity sound accompanies your high-resolution video.

Furthermore, the extender offers RS-232 and USB extension between the Sender and Receiver units, enhancing control over A/V sources and enabling the transmission of automation commands to displays or other devices. This feature also extends human input device (HID) functionality, which is essential for interactive systems.

In summary, the Gefen HDMI KVM Extra Long Range Extender is a comprehensive solution that combines HDMI and USB transmission over long distances with ease of use, making it a top choice for those seeking to maintain high-quality audiovisual experiences in expansive settings.

Gefen HDKVM Extender Features

  • Extends 4K Ultra HD (3840 x 2160 at 60Hz, 4:2:0 or 30Hz, 4:4:4), and USB over a single CAT-5e cable up to 330 feet/100 meters (8-bit color)
  • Extends 4K Cinema (DCI) (4096 x 2160 at 24 or 30Hz 4:4:4), and USB over a single CAT-5e cable up to 330 feet/100 meters (8-bit color)
  • Extends HDMI at 1080p Full HD, and USB over a single CAT-5e cable up to 330 feet/100 meters (up to 12-bit Deep Color)
  • Supported HDMI features: HDMI 2.0, HDCP 1.4 compliant, 12-bit Deep Color, LPCM 7.1 audio, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio pass-through, 3DTV pass-through, CEC pass-through, Lip Sync pass-through
  • Supports up to 30 Mbps when using USB 2.0
  • Backward-compatible with USB 1.1
  • EDID management for rapid integration of source and display devices
  • ELR and HDBaseT technologies
  • Locking power supplies
  • 1U tall, half-rack width enclosures are rack-mountable using EXT-RACK-1U

Key Features

  • Extend HDMI and USB signals up to 330 feet with this reliable KVM extender kit.
  • Enjoy seamless performance with 300MHz clock, ensuring crisp, clear video quality.
  • This HDMI KVM extender supports full HD, perfect for high-resolution applications.
  • Use locking HDMI cables for secure connections and prevent accidental disconnections.
  • This KVM switch includes USB ports for keyboard, mouse, and other peripherals.
  • This Gefen KVM extender offers simple setup with included power supplies and cables.

What's in the box:

  • Gefen EXT-HDKVM-ELRS Sender Unit
  • EXT-HDKVM-ERR Receiver Unit
  • CAB-HDMI-LCK-06MM Locking HDMI Cable
  • CAB-USB-6 6' (1.83m) USB Cable
  • 2x EXT-PS54AULPN 5V DC Power Supplies
  • 2x CAB-POWERCORD-US AC Power Cords
  • Quick-Start Guide
  • Gefen 2 Year Warranty
