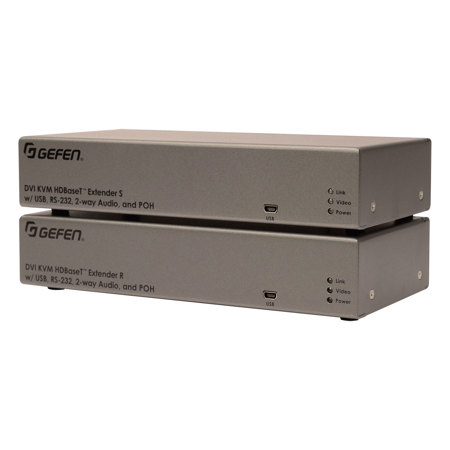

Gefen DVI KVM HDBaseT 2.0 Extender with USB, RS-232, 2-way IR, 2-way Audio and Bi-directional POH

SKU: GETDVIKAHBT2 MFR: EXT-DVIKA-HBT2
Earn VIP Reward Points

Key Features

  • Extend your DVI KVM signals up to 330 feet with this HDBaseT 2.0 extender kit!
  • Enjoy crystal-clear video with the DVI KVM extender, supporting up to 300 MHz.
  • Control your server remotely using the USB KVM extender's four USB Type-A ports.
  • Integrate seamlessly with RS-232 control for remote management via this KVM cable.
  • Utilize 2-way audio capabilities for enhanced communication via the Gefen KVM extender.
  • Power over HDBaseT (POH) simplifies setup with single-cable convenience using KVM switch.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Gefen Extender Specifications

  • Maximum Pixel Clock

    300 MHz

  • Video Input connector

    Sender: DVI 29-pin, female, digital only

  • Video Output connector

    Receiver: DVI 29-pin, female, digital only

  • Link connector

    Sender/Receiver: RJ-45, shielded, female

  • USB Host Interface port

    Sender: USB Type B, female

  • USB Device ports

    Receiver: 4x USB Type A, female

  • USB port for Gefen Syner-G interface

    Sender/Receiver: Mini-B

  • RS-232 port

    Sender: DB-9, female
    Receiver: DB-9, male

  • Audio Input connector

    Sender: 3.5mm mini-stereo jack (Analog L/R Line)

  • Input connector

    Receiver: 3.5mm mini-stereo jack (Analog L/R Mic/Line Audio)

  • Analog L/R Audio Output connector

    Sender/Receiver: 3.5mm mini-stereo jack

  • Mic/Line selector switch

    Receiver: Slide type

  • Power/Video/Link Indicator LEDs

    Blue, Amber, Green

  • Power Supply connector

    Sender/Receiver: 48V DC, locking

  • Power Consumption

    Sender/Receiver: 13W

  • Operating Temperature

    32 to 122 deg. F (0 to 50 deg. C)

  • Operating Humidity

    5% to 90% RH, non-condensing

  • Storage Temperature

    -4 to 185 deg. F (-20 to 85 deg. C)

  • Storage Humidity

    0% to 95% RH, non-condensing

  • MTBF

    50000 hours

  • Dimensions (W x H x D)

    Sender/Receiver: 8.4 x 1.7 x 4.3" (213.36 x 43.18 x 109.22mm) (not including connectors and feet)

  • Weight

    Sender/Receiver: 1.1lbs (0.50kg) each

  • UPC Code

    888814983609

Related Articles & Videos

Adorama: Your Sports Photography Authority

Adorama: Your Sports Photography Authority

Whether you're shooting your kid's PeeWee league games or are trying to break into the big time (not an easy task!...

Read more
Here's a Quick Way to Whisk Away Color Fringing in Your Digital Images

Here's a Quick Way to Whisk Away Color Fringing in Your Digital Images

You've tried soaking them out and scrubbing them out. But you still get color fringing on the collar...and on other high-contrast transition areas of your digital photos. Here's how to whisk them away..

Read more
PhotoZAP 75: High ISO Spotted

PhotoZAP 75: High ISO Spotted

"While capturing a beastie in the wild like this is a true challenge and consists of infinite patience and waiting... you didn't set your camera properly in advance." ~Mason Resnick

Read more
Handling Noise in the Digital Darkroom

Handling Noise in the Digital Darkroom

Noise always increases with ISO and there is no magic bullet for it, but it is controllable with a little care.

Read more

About Gefen Extender

Before diving into the technical details, let's introduce the EXT-DVIKA-HBT2, a state-of-the-art DVI KVM HDBaseT 2.0 Extender with USB, RS-232, 2-way IR, 2-way Audio, and Bi-directional POH. This device is a product of Gefen's innovative implementation of the latest HDBaseT 2.0 technology. It's designed to extend DVI over a single CAT-5e cable for an impressive distance of up to 495 feet (150 meters).

The EXT-DVIKA-HBT2 is built on the new HDBaseT 2.0 Colligo platform, which not only provides additional features such as USB and 2-way audio extension but also ensures a more robust and resilient connection than the industry-standard HDBaseT. It supports resolutions up to 1080p and 1920 x 1200 (WUXGA), making it a perfect choice for high-definition video transmission.

When it comes to HDMI resolutions, this device doesn't disappoint. It supports up to 4K DCI-Cinema (4096 x 2160 at 30 Hz 4:4:4) and 4K Ultra HD (3840 x 2160 at 60 Hz 4:2:0). For audio enthusiasts, it supports 7.1 channels of LPCM and HBR (High Bit Rate) lossless digital audio when using Gefen DVI to HDMI cables. The supported HBR formats include Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio.

The EXT-DVIKA-HBT2 is more than just a DVI extender. It's a complete workstation solution, extending USB, RS-232, and 2-way L/R analog audio between the Sender and the Receiver. This allows for the connection of a keyboard, mouse, select USB peripherals, microphone, headphones, and powered speakers.

One of the standout features of this device is its POH (Power Over HDBaseT) technology. This provides power from the Receiver to the Sender unit, using the same CAT-5 cable that extends the DVI, audio, and control signals. This means only the Receiver unit needs an external power supply, simplifying your setup.

The EXT-DVIKA-HBT2 is also compatible with other POH class-compliant devices, thanks to the POH standard. To make configuration easier and faster, it comes with Gefen Syner-G software, which offers powerful EDID Management capabilities, real-time performance analysis via Link Monitoring, and simplifies in-field firmware updates.

Finally, the device is housed in a 1U tall, half-rack-width enclosure that can be surface-mounted, installed in a standard 19-inch rack using the EXT-RACK-1U-GRY rack tray, or simply placed on a shelf. This makes it a versatile addition to any professional or home setup.

Gefen Extender Features

  • Extends DVI, USB, RS-232, and 2-way Audio over a single CAT-5e
  • 1080p Full HD (1920 x 1080 at 60Hz, 4:4:4, 12-bit), up to 330 feet/100 meters
  • 1080p Full HD (1920 x 1080 at 60Hz, 4:4:4, 8-bit), up to 495 feet/150 meters
  • WUXGA (1920 x 1200 at 60Hz, 8-bit), up to 495 feet/150 meters
  • Extends HDMI, USB, RS-232, and 2-way Audio over a single CAT-5e
  • 4K Ultra HD (3840 x 2160 at 60Hz, 4:2:0, 8-bit), up to 330 feet/100 meters
  • 4K Ultra HD (3840 x 2160 at 30Hz, 4:4:4, 8-bit), up to 330 feet/100 meters
  • 4K DCI-Cinema (4096 x 2160 at 30Hz 4:4:4, 8-bit), up to 330 feet/100 meters
  • 1080p Full HD (1920 x 1080 at 60Hz, 4:4:4, 12-bit), up to 330 feet/100 meters
  • 1080p Full HD (1920 x 1080 at 60Hz, 4:4:4, 8-bit), up to 495 feet/150 meters
  • WUXGA (1920 x 1200 at 60Hz, 8-bit), up to 495 feet/150 meters
  • HDMI Features Supported: HDMI 2.0 up to 4K 60Hz, 4:2:0, 8-bit color, HDCP 2.2 and 1.4, 12-bit Deep Color, LPCM 7.1 audio, Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio pass-through, 3DTV pass-through, CEC pass-through, Lip Sync pass-through
  • Analog L/R Stereo Audio extension from Sender to Receiver and from Receiver to Sender
  • Receiver audio input accommodates a microphone or a line level audio source
  • POH (Power Over HDBaseT) feature provides power to Sender unit over the link cable - only the Receiver needs external power
  • Advanced EDID Management via Gefen Syner-G software
  • Link Quality Monitoring via Gefen Syner-G software
  • In-field firmware update via USB, using Gefen Syner-G software
  • Locking power connector
  • 1U tall, half-rack-width enclosures can be: Surface-mounted, Installed in a standard 19-inch rack using the EXT-RACK-1U-GRY rack tray (available separately), Placed on a shelf

Key Features

  • Extend your DVI KVM signals up to 330 feet with this HDBaseT 2.0 extender kit!
  • Enjoy crystal-clear video with the DVI KVM extender, supporting up to 300 MHz.
  • Control your server remotely using the USB KVM extender's four USB Type-A ports.
  • Integrate seamlessly with RS-232 control for remote management via this KVM cable.
  • Utilize 2-way audio capabilities for enhanced communication via the Gefen KVM extender.
  • Power over HDBaseT (POH) simplifies setup with single-cable convenience using KVM switch.

What's in the box:

  • Gefen DVI KVM HDBaseT 2.0 Sender unit
  • Receiver Unit
  • Quick-Start Guide
  • Gefen 2 Year Limited Warranty
