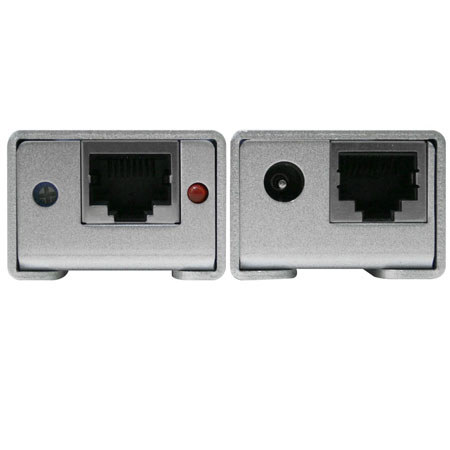

Gefen EXT-VGA-141LR VGA Extender LR with Sender & Receiver, 350MHz Bandwidth

SKU: GEVGA141LR

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Gefen EXT-VGA-141LR Specifications

  • Video Amplifier Bandwidth

    350 MHz

  • Input Video Signal

    1.2 Volts p-p

  • Input Sync Signal

    5 Volts p-p (TTL)

  • Horizontal Frequency Range

    15-70 KHz

  • Vertical Frequency Range

    30-170 KHz

  • Video In

    HD-15

  • Focus

    25 to 330 FT

  • Video out

    HD-15

  • Link Connector

    RJ-45

  • Power Consumption

    5W (per unit, max.)

  • Power Supply

    5VDC (External)

  • Dimensions (H x W x D)

    1.9 x 1.6x 3.5" / 4.82 x 4.06 x 8.89 cm

  • UPC Code

    845344000008

About Gefen EXT-VGA-141LR

The Gefen VGA-141LR Long-Range VGA Extender (LR) is a transmitter and matching receiver kit that allows a user to separate computer components up to 330' (100 m,) far beyond the reach of standard desktop cables. It uses inexpensive and common CAT5 network cable to connect the sender and receiver over great distances. Sample installations include public kiosks where the computer needs to be in a different and/or secure location.

Gefen EXT-VGA-141LR Features

  • Extends any VGA or high definition component display up to 330 feet (100 meters)
  • One CAT-5e cable for extension
  • Supports resolutions up to 1080p, 2K and 1920 x 1200

Key Features

  • One CAT-5e cable for extension
  • Supports resolutions up to 1080p, 2K and 1920 x 1200

What's in the box:

  • Gefen VGA Extender S Sender Unit
  • VGA Extender R Receive Unit
  • 6 ft VGA Cable (M-F)
  • 5V DC Power Supply
  • Gefen 2 Years Warranty
