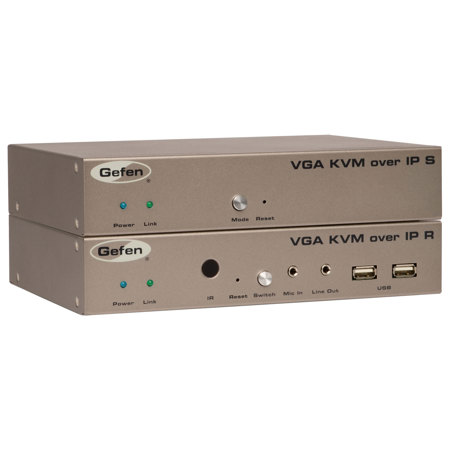

Gefen VGA and KVM Over IP Sender

Where high-quality video and audio transmission is a necessity, the VGA and KVM Over IP Sender is your go-to solution. This advanced device extends and distributes VGA, USB, RS-232, IR, and 2-way audio over a Gigabit Local Area Network (LAN), supporting resolutions up to 1920 x 1200 (WUXGA).

The Sender and Receiver units can be configured either automatically or manually to unique IP addresses, allowing for the connection of multiple units to the same network. This feature enables the creation of a virtual crosspoint matrix of over 65,000 Sender and Receiver units, depending on the network bandwidth and the number of ports on the network switch.

The VGA and KVM Over IP Sender is compatible with any combination of HDMI, DVI, and VGA Senders and Receivers. Each Receiver unit comes equipped with a built-in Ethernet switch and two additional RJ-45 Ethernet ports, facilitating the connection of computers and other IP-enabled devices.

The device supports USB 2.0 data rates up to 480 Mbps and is backward-compatible with USB 1.1. Each Receiver unit provides two USB ports with up to 500mA current draw per connector, offering access to keyboards, mice, and other compatible devices.

The VGA and KVM Over IP Sender also features bi-directional analog audio capability, allowing for the transportation of audio between the Sender and Receiver units. The built-in mic pre-amp on the Receiver unit ensures compatibility with a variety of microphones.

IR commands from the Receiver side can be extended to sources connected to any of the Sender units. RS-232 serial control can also be extended between each Sender and Receiver unit. The built-in Web server interface simplifies operation, set-up, and configuration, making this device an ideal choice for large scale remote workstation access and digital signage applications.

The VGA and KVM Over IP Sender is designed with a Mode button on the Sender for sharpness or motion optimization of image, and field-upgradable firmware via the web server interface. The device comes in 1U tall, half-rack width enclosures that are rack-mountable using EXT-RACK-1U and includes surface mounting brackets.

The VGA and KVM Over IP Sender is a comprehensive solution for high-quality video and audio transmission over a local area network, offering flexibility, high performance, and easy setup. Note that a Gigabit switch is required for operation, and the switch must support 8k jumbo frame packets for multicast mode to operate. If your LAN is not dedicated to Gefen KVM-LAN products exclusively, then a managed switch is highly recommended.
