Gefen HDMI Long-Range 5GHz Wireless Extender System (100', Europe)

SKU: GEWHD10PLREU

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Gefen Wireless Extender System Specifications

  • Number & location of channels

    EU model:
    2: 5.19GHz, 5.230GHz

  • Maximum number of Senders to be linked

    8

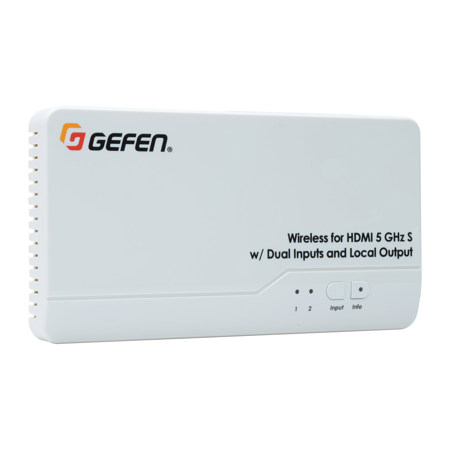

  • Sender unit

    2 HDMI Inputs
    Local HDMI "Mirrored" Output
    IR Output port and included Emitter Array for source control
    Ideal for use with 2 sources in a fixed home theater type installation
    Flexible mounting options: 0.25"-20 thread, wall mounting, shelf placement

  • Receiver unit

    IR Extender module included for hidden installations
    Small and compact form factor - can be installed behind the TV
    Flexible mounting options: 0.25"-20 thread, wall mounting, shelf placement

  • Video Input Connector

    Sender: 2x HDMI Type A, 19-pin, female

  • Video Output Connector

    Sender: 1x HDMI Type A, 19-pin, female
    Receiver: 1x HDMI Type A, 19-pin, female

  • Power Connector

    Sender: 1x 3.5mm barrel-type DC jack
    Receiver: 1x USB Mini-B

  • Power Supply

    Sender: 1x 5V/2A DC with USB Type-A connector
    Receiver: 1x 5V/2A DC with USB Type-A connector

  • Power Consumption

    Sender: 7W (max.)
    Receiver: 6W (max.)

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Operating Humidity

    10 to 85%, Relative Humidity, non-condensing

  • Storage Temperature

    14 to 140 deg. F (-10 to 60 deg. C)

  • Storage Humidity

    5 to 90%, Relative Humidity, non-condensing

  • Dimensions (WxHxD)

    Sender Unit: 7.2 x 1.3 x 3.9" (182.88 x 33.02 x 99.06mm)
    Receiver Unit: 3.8 x 1.4 x 3.8" (96.52 x 35.56 x 96.52mm) (including feet)

  • Weight

    Sender Unit: 0.5 lbs (0.23kg)
    Receiver Unit: 0.3 lbs (0.14kg)

  • UPC Code

    888814050103

About Gefen Wireless Extender System

Wirelessly extends HDMI at 1080p Full HD with multichannel digital audio up to 100 feet (30 meters)
The Wireless for HDMI 5 GHz LR (Long Range) Extender system sends high definition audio and video to any HDTV display up to 100 feet (30 meters). It extends HDCP compliant HDMI AV content from computers, game consoles, set-top boxes, Blu-ray players and other AV sources to a remotely located display. HD resolutions up to 1080p Full HD, 7.1-channels of LPCM digital audio and 5.1 channels of Dolby or DTS formats are supported. This wireless system is comprised of a Sender and a Receiver unit. Both units can be attached to a standard 1/4"-20 camera tripod mount, wall mounted or be placed on a shelf.

The small and low-profile Receiver unit includes a wired IR Extender module and can be hidden away behind the display or inside an equipment cabinet if needed. The Sender features two HDMI inputs and an HDMI output for connection to a local display. The end-user can select between the two HDMI sources by using the included handheld IR remote or by pressing the Input button on the Sender or the Receiver unit. The included IR emitter array can be connected to the Sender unit and attached to the IR sensor windows of the two Hi-Def sources, allowing full control of the source unit from another room simply by pointing the IR remote of the source at the Receiver unit.

This wireless extender system is ideal for high-definition AV extension in a conference room, classroom, auditorium, home theater and multiroom AV installations that feature multiple sources and two displays. Up to eight Sender units can be accessed by a Receiver, one at a time, using its handheld remote control. The Wireless for HDMI 5 GHz LR Extender system can transmit through walls and does not require line-of-sight placement of its transceivers.

Gefen Wireless Extender System Features

  • Wireless extension of HDMI up to 100 feet (30 meters)
  • Supports resolutions up to 1080p Full HD, up to 7.1 channels of LPCM digital audio, and up to 5.1 channels of Dolby and DTS formats
  • Transmits through obstacles - does not require line-of-sight
  • Long Range performance makes it ideal for multi-room use
  • IR Back Channel for source control with carrier frequency selector
  • HDMI Features Supported: CEC, 12-bit Deep Color, 3DTV pass-through, HDCP pass-through, Lip Sync
  • Less than 1 frame latency
  • Uncompressed High Definition A/V from source to display
  • AES 128 Encryption
  • Compatible with legacy DVI displays
  • Handheld IR remote for easy setup and operation
  • Firmware update via Mini-USB port using Gefen Syner-G software
  • WHDI 1.0, FCC Part 15, IC, and ETSI-compliant

What's in the box:

  • Gefen HDMI 5GHz LR Sender Unit
  • HDMI 5GHz LR Receiver Unit
  • 2x 5' HDMI Cables (M-M)
  • 5' USB to Mini USB Cable
  • 3' USB to DC Plug Cable
  • 2x 5V/2A DC Power Supplies
  • IR Remote Control
  • IR Emitter Array Cable
  • IR Extender Module
  • 4x Screws and Wall Anchors for Wall-Mounting Sender and Receiver
  • Quick Start Guide
  • Gefen 2 Year Limited Warranty
