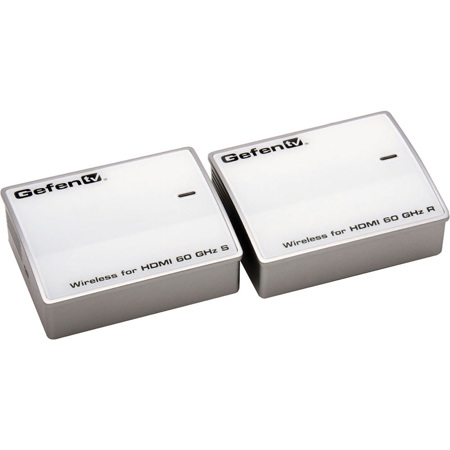

Gefen GefenTV HDMI 60GHz Wireless Extender System

SKU: GEWHD60G

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Gefen HDMI Extender Specifications

  • Frequency Band Range

    60GHz

  • Video Input Connector

    Sender: HDMI Type A, 19-pin, Female

  • Video Output Connector

    Receiver: HDMI Type A, 19-pin, female

  • USB Connector

    Sender/Receiver: Micro-B (firmware upgrade only)

  • Link/Pair Button

    Sender/Receiver: Tact-type push-button switch

  • Power Button

    Sender/Receiver: Latching push-button switch

  • Power Indicator

    Sender/Receiver: LED, blue

  • Power Supply

    Sender/Receiver: 5V/2A DC

  • Power Consumption

    Sender/Receiver: 10W max.

  • Dimensions (W x H x D)

    Sender/Receiver: 3.4 x 1.2 x 2.8" / 86.36 x 30.48 x 71.12mm

  • UPC Code

    845344044040

About Gefen HDMI Extender

Wirelessly Extend HDMI Video at 1080p Full HD with High Resolution Lossless 7.1 Channel Digital Audio Up to 33 Feet (10 meters)
The GefenTV Wireless for HDMI 60 GHz extender system sends high definition audio and video to any HDTV display up to 33 feet (10 meters). It extends HDMI A/V content from computers, set-top boxes and Blu-ray players to a remote HDCP-compliant Hi-Def display. This wireless product is comprised of small table-top Sender and Receiver units. It supports resolutions up to 1080p Full HD, 3DTV, CEC and 7.1-channels of High Bit Rate (HBR) lossless digital audio such as Dolby TrueHD, DTS-HD Master Audio. The Wireless for HDMI 60 GHz is specifically designed to transmit within a room. Its signal will not penetrate through walls, facilitating interference-free operation of multiple units in adjacent venues and close proximity. Line-of-sight placement of transceivers, however, is not necessary. Thanks to its small form-factor, high performance and near-zero latency, this product is ideal for high-definition A/V extension within a conference room or home theater installation.

How It Works
Connect the included HDMI cable from the Hi-Def source to the Sender unit. Connect the other included HDMI cable from the Receiver unit to the HDTV display. Connect the power supplies to both the Sender and Receiver units and to available electrical outlets. Power-up the source and the display. Press the power buttons on the Sender and Receiver units and make sure that they are on. A clear and vivid Hi-Def picture will appear on the screen and high resolution 7.1 channel audio will be played back through the audio system. CEC commands are also transferred seamlessly between connected HDMI components.

Features
• Wireless extension of HDMI up to 33 feet (10 meters)
• Supports resolutions up to 1080p Full HD
• HDMI Features Supported: HDCP pass-through, 3DTV pass-through, CEC pass-through, Dolby TrueHD, DTS-HD Master Audio and LPCM digital audio streams up to 7.1 channels and Lip Sync
• Uncompressed High Definition A/V from source to display
• Near zero latency (less than one frame)
• Specifically designed for in-room operation only
• Operates in the uncluttered 60GHz frequency region, minimizing the chances of interference from household devices such as cordless phones or WiFi equipment
• Field-upgradable via USB port

What's in the box:

  • Gefen GTV-WHD-60GS W Sender Unit
  • GTV-WHD-60GR Receiver Unit
  • 2x CAB-HD-04MM-O 4' HDMI Cable (M-M)
  • 2x EXT-PS52AIP-O 5V DC Power Supply
  • QSG-GTV-WHD-60G Quick-Start Guide
  • Gefen 2 Year Limited Warranty
