X-Rite i1Basic Pro 3 Plus Spectrophotometer and i1iO 3 Automated Chart Reader Bundle

SKU: GH3PLBAS3AST MFR: EO3PLBAS/EO3AST
Earn VIP Reward Points

Key Features

  • Achieve unparalleled color accuracy with the X-Rite i1Basic Pro 3 Plus Spectrophotometer.
  • Automate your color workflow using the i1iO 3 Automated Chart Reader for efficiency.
  • Enjoy wide gamut support for vibrant and true-to-life colors on your HDR displays.
  • Calibrate multiple monitors for consistent color across your entire workstation setup.
  • Ensure your prints match your screen with precise color management using included software.
  • Customize your color profiles with user-friendly software, suitable for any skill level.
See More Product Details

Product Options

Special Order?Estimated to Ship: 08/10/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$679.99

3 Year

$999.99

4 Year

$1,149.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

X-Rite i1Basic Pro 3 Plus Specifications

i1Basic Pro 3 Plus

i1Basic Pro 3 Plus

Jump to...
  • Aperture

    Measurement aperture: 0.31" (8mm) diameter (effective measurement aperture during scanning is depending on the patch size and measurement speed)

  • Available Disk Space

    2GB

  • Calibration

    Manual on external ceramic white reference (included)

  • Communication Interface

    USB 1.1

  • Connectivity

    Powered USB port

  • Display Resolution

    1024x768 pixels or higher

  • Experience Level

    Intermediate to Advanced

  • Humidity

    30 to 85% RH (non-condensing)

  • Illumination Spot Size

    0.47" (12mm)

  • Inter-Instrument Agreement

    0.3 Delta E00 average, 0.8 Delta E00 max. (deviation from X-Rite manufacturing standard at a temperature of 73.4 Degree F (23 Degree C) on 12 BCRA tiles (D50, 2 Degree))

  • Internet Connection

    Required for software install, download and automatic update

  • Languages Supported

    Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish

  • Light Source

    i1Pro3 Plus LED Illumination (including UV)

  • Macintosh

    MacOS X 10.11x, 10.12x or 10.13x (with latest upgrades installed)

  • Measurement Conditions

    M0 - UV included - ISO 13655:2017
    M1 - D50 - ISO 13655:2017
    M2 - UV excluded Filter - ISO 13655:2017
    M3 - Polarization - ISO 13655:2017

  • Measurement Frequency in Scanning Mode

    400 measurements per second

  • Measurement Geometry

    45 Degree /0 Degree ring illumination optics, ISO 13655:2017

  • Measurement Spot

    0.315" (8mm)

  • Media Thickness

    1mm or less

  • Memory

    2GB Minimum

  • Number of Displays

    Up to 4 (Supported per Workstation)

  • Operating Temperature Range

    50 Degree F to 95 Degree F (10 Degree C to 35 Degree C)

  • Patch Size (W x H)

    Minimal Patch Size in Scanning Mode: 0.63 x 0.63" (16 x 16mm) with sensor ruler 0.79 x 0.63" (20 x 16mm) without sensor ruler

  • Photometric Range

    10nm; Sampling interval 3.5nm

  • Processor

    MAC: Intel Core 2 Duo CPU or better; WINDOWS: Intel Core 2 Duo or AMD Athlon XP or better

  • Scan Length

    Maximum: 20.28" (515mm)

  • Scanner Target Support

    Yes

  • Scanning Capability

    Yes

  • Security

    User must have Administrator rights to install and uninstall the application

  • Short Term Repeatability - White

    0.05 Delta E00 on white (D50,2 Degree , mean of 10 measurements every 3 seconds on white)

  • Spectral Analyzer

    i1 technology with built-in wavelengths check; Holographic diffraction grating with 128-pixel diode array

  • Spectral Range

    380 - 730 nm

  • Spectral Reporting

    380 - 730 nm in 10 nm steps

  • Storage Temperature Range

    -4 Degree to 122 Degree F (-20 Degree to 50 Degree C)

  • Supported Profile Format

    ICC version 2, version 4.3, & iccMax

  • User Experience

    Choose between a 'basic', wizard-driven interface or an 'advanced', user-driven interface for highest level professional results

  • Video Card

    MAC: Latest drivers for video card installed
    WINDOWS: Latest drivers for video card installed, dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded

  • Windows

    Windows 7, 8, 8.1, 10 (with latest Service Pack installed)

  • Dimensions (L x W x H)

    i1Pro device: 6.4 x 2.7 x 2.5" (162 x 69 x 64mm)

  • Weight

    10.1 oz (285g)

  • Available Disk Space

    2GB

  • Calibration

    Automatic on Integrated Calibration Reference

  • Communication Interface

    USB 1.1

  • Connectivity

    Powered USB port

  • Experience Level

    Intermediate to Advanced

  • Languages Supported

    Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish

  • Macintosh

    MacOS X 10.13x, 10.14x or 10.15x (with latest upgrades installed)

  • Measurement Background

    White

  • Media Thickness

    Max. 10mm
    Max. 33mm with optional Z Axis Spacer

  • Patch Size

    Minimal Patch Size in Scanning Mode: 0.63 x 0.63" (16 x 16mm) with i1Pro3 Plus

  • Scanning Area (W x H)

    Positioning Area: 12.6 x 9" (32 x 23cm)

  • Scanning Capability

    Yes

  • Single Pass Scan

    Yes

  • Software Development Kit

    Available for OEM customers

  • Software Modes

    Basic & Advanced

  • Unit Color

    Black/Silver

  • User Experience

    Choose between a 'basic', wizard-driven interface or an 'advanced', user-driven interface for highest level professional results

  • Voltage

    100 to 240 VAC, 50 / 60 Hz

  • Windows

    Windows 8.1, 10 (with latest Service Pack installed)

  • Dimensions (L x W x H)

    20 x 18.1 x 6.7" (510 x 460 x 170mm)

  • Weight

    9.9 lbs (4.5kg) (Without i1 Pro device)

  • UPC Code

    7640111925736

About X-Rite i1Basic Pro 3 Plus

Under the umbrella of advanced color management solutions, the i1Basic Pro 3 Plus Spectrophotometer and i1iO 3 Automated Chart Reader Bundle stands out as a sophisticated, professional-grade toolset. This bundle is designed specifically for imaging professionals who demand accurate color calibration for their displays, projectors, and print quality assurance.

The i1Basic Pro 3 Plus Spectrophotometer is an innovative solution that allows for the creation of custom monitor and projector profiles, ensuring true color representation. It supports high brightness levels up to 5000nits, improving emissive measurement for optimal calibration and profiling of monitors and projectors. This device can calibrate and match multiple displays, including up to four displays connected to a single computer, and an unlimited number of monitors connected to different computers, providing consistent color viewing across all platforms.

In addition, the i1Basic Pro 3 Plus supports the latest video standards, including NTSC, ITU-R-Rec.BT.709, and PAL SECAM broadcast video standards. It comes with PANTONE Color Manager software, which allows for accurate capture and management of spot colors, and helps users build palettes of best match PANTONE colors extracted from their own images.

The i1iO 3 Automated Chart Reader, on the other hand, is a robotic, automatic chart reading system designed to eliminate manual strip reading, thereby increasing accuracy and efficiency. It can measure reflective test charts on a variety of substrates up to 10 mm thick, including thin polybag material, ceramics, and textiles. It reads more than 500 patches per minute in scanning mode under the M0 measurement condition, quickly creating custom profiles.

This bundle offers ultimate flexibility through hands-free automation and ease-of-use, and supports automated transmission profiling with i1Pro 3 Plus for backlit film and materials used in signage. The i1iO 3 Automated Chart Reader provides more accurate and consistent profiles than those created by hand, making it an essential tool for photographers, designers, and printers seeking the highest level of color accuracy.

X-Rite i1Basic Pro 3 Plus Features

  • Includes i1 Basic Pro 3 Plus spectrophotometer and i1iO automated chart reading table
  • Spectrophotometer with a custom, full-spectrum LED light source and Large aperture (8mm) for more accurate results with better repeatability for the best possible calibration and profiling - for use with many software packages requiring a hardware device
  • Large aperture spectrophotometer includes polarizing filter for improved profiles on textured and glossy photo media in shadow and highlight regions
  • i1iO table measures reflective test charts on a variety of substrates up to 10 mm thick, including thin polybag material, ceramics, and textiles. Offers ultimate flexibility through hands-free automation and ease-of-use
  • X-Rite i1 Basic Pro 3 Plus does not offer printer profiling using X-Rite software unless used as an upgrade for a device that does have printer profiling installed

Key Features

  • Achieve unparalleled color accuracy with the X-Rite i1Basic Pro 3 Plus Spectrophotometer.
  • Automate your color workflow using the i1iO 3 Automated Chart Reader for efficiency.
  • Enjoy wide gamut support for vibrant and true-to-life colors on your HDR displays.
  • Calibrate multiple monitors for consistent color across your entire workstation setup.
  • Ensure your prints match your screen with precise color management using included software.
  • Customize your color profiles with user-friendly software, suitable for any skill level.

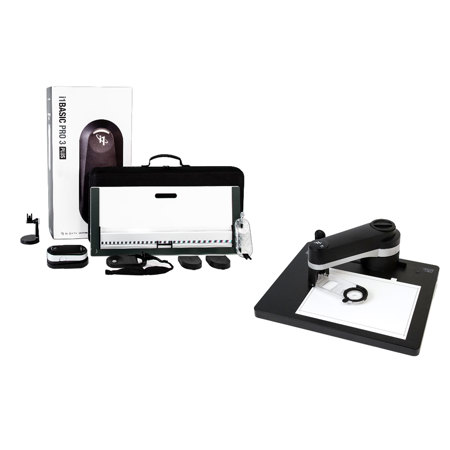

What's in the box:

  • i1Pro 3 Plus Spectrophotometer
  • i1iO Automated Chart Reader
  • i1Profiler Software
  • PANTONE Color Manager Software
  • Calibration Plate
  • Polarizing Filter
  • Ambient Light Measurement Head
  • Monitor Holder
  • Positioning Target
  • XL Scanning Ruler
  • XL Backer Board
  • USB Cable
  • X-Rite 1 Year Limited Warranty
