Questions & Answers

FAQ

What devices is the i1Publish Pro 3 Plus Software Bundle compatible with?

The i1Publish Pro 3 Plus Software Bundle is compatible with a wide range of devices, including cameras, monitors, projectors, scanners, and both RGB and CMYK+ printers.

What comes included in the i1Publish Pro 3 Plus Software Bundle?

The i1Publish Pro 3 Plus Software Bundle includes the i1Publish Pro 3 Plus software, a professional-grade colorimeter, and a calibration target. It also comes with a license card and a USB dongle for easy installation and use.

What is the main function of the i1Publish Pro 3 Plus Software Bundle?

The main function of the i1Publish Pro 3 Plus Software Bundle is to provide advanced color management for imaging and prepress. It profiles and calibrates devices for accurate color representation, ensuring the most color-accurate displays, prints, and proofs.

What is the benefit of the transmissive profiling capabilities of the i1Publish Pro 3 Plus Software Bundle?

The transmissive profiling capabilities of the i1Publish Pro 3 Plus Software Bundle allow for faster measurements and more accurate and consistent profiles. This reduces expensive waste and rework, making the software bundle a cost-effective solution for professionals.

Can I download the i1Publish Pro 3 Plus Software?

Yes, there is an option to download the i1Publish Pro 3 Plus Software for added flexibility and convenience.

Reviews about this item

Review Summary

X-Rite i1Publish Pro 3 Plus Specifications

  • Aperture

    Measurement aperture: 8 mm (0.31") diameter (effective measurement aperture during scanning is depending on the patch size and measurement speed)

  • Available Disk Space

    2GB

  • Calibration

    Manual on External Ceramic White Reference (included)

  • Communication Interface

    USB 1.1

  • Connectivity

    Powered USB port

  • Display Resolution

    1024 x7 68 Pixels or Higher

  • Experience Level

    Intermediate to Advanced

  • Humidity

    30 to 85% RH (Non-Condensing)

  • Illumination Spot Size

    0.47" (12mm)

  • Inter-Instrument Agreement

    0.3 Delta E00 Average, 0.8 Delta E00 Max. (deviation from X-Rite manufacturing standard at a temperature of 73.4 Degree F (23 degree C) on 12 BCRA tiles (D50, 2 Degree))

  • Internet Connection

    Required for software install, download and automatic update

  • Languages Supported

    Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish

  • Light Source

    i1Pro3 Plus LED Illumination (Including UV)

  • Macintosh

    MacOS X 10.11x, 10.12x or 10.13x (With Latest Upgrades Installed)

  • Measurement Conditions

    M0 - UV included - ISO 13655:2017
    M1 - D50 - ISO 13655:2017
    M2 - UV excluded Filter - ISO 13655:2017
    M3 - Polarization - ISO 13655:2017

  • Measurement Frequency in Scanning Mode

    400 Measurements Per Second

  • Measurement Geometry

    45 Degree : 0 Degree ring illumination Optics, ISO 13655:2017

  • Measurement Spot

    0.315" (8mm)

  • Media Thickness

    1mm or Less

  • Memory

    2GB Minimum

  • Number of Displays Supported

    Up to 4 Per Workstation

  • Operating Temperature Range

    50 Degree F to 95 Degree F (10 Degree C to 35 Degree C)

  • Patch Size (W x H)

    Minimal Patch Size in Scanning Mode
    With Sensor Ruler: 0.63 x 0.63" (16 x 16mm)
    Without Sensor Ruler: 0.79 x 0.63" (20 x 16mm)

  • Photometric Range

    10nm; Sampling Interval 3.5nm

  • Processor

    MAC: Intel Core 2 Duo CPU or better; WINDOWS: Intel Core 2 Duo or AMD Athlon XP or Better

  • Scan Length

    Maximum 20.28" (515mm)

  • Scanner Target Support

    Yes

  • Scanning Capability

    Yes

  • Security

    User must have Administrator rights to install and uninstall the application

  • Short Term Repeatability - White

    0.05 Delta E00 on White 5 (D50,2 Degree , mean of 10 measurements every 3 seconds on white)

  • Software Development Kit

    Available for OEM customers

  • Spectral Analyzer

    i1 technology with built-in wavelengths check; Holographic diffraction grating with 128-pixel diode array

  • Spectral Range

    380 - 730nm

  • Spectral Reporting

    380 ... 730nm in 10nm steps

  • Storage Temperature Range

    -4 Degree F to 122 Degree F (-20 Degree to 50 Degree C)

  • Supported Profile Format

    ICC version 2, version 4.3, & iccMax

  • Unit Color

    Black/Silver

  • User Experience

    Choose between a 'basic', wizard-driven interface or an 'advanced', user-driven interface for highest level professional results

  • Video Card

    MAC: Latest drivers for video card installed
    Windows: Latest drivers for video card installed, dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded

  • Windows

    Windows 7, 8, 8.1, 10 (with latest Service Pack installed)

  • Dimensions

    i1Pro device: 6.4 x 2.7 x 2.5" (162 x 69 x 64mm)

  • Weight

    i1Pro device: 10.1 oz (285g)

  • UPC Code

    7640111923060

About X-Rite i1Publish Pro 3 Plus

Color Management for Imaging and Prepress
For designers, photographers, or prepress professionals who rely on accurate color throughout a digital workflow, the i1Publish Pro 3 Plus is the must-have solution to profile and calibrate cameras, monitors, projectors, scanners, and both RGB and CMYK+ printers. Get the most color accurate displays, prints and proofs, with repeatable results every time.

In addition, the i1Publish Pro 3 Plus is equipped with transmissive profiling capabilities for faster measurements and more accurate and consistent profiles to reduce expensive waste and rework.

X-Rite i1Publish Pro 3 Plus Features

  • Large aperture (8mm) gives more accurate results with better repeatability
  • Includes polarizing filter for improved profiles from textiles and other textured media
  • Accommodating a broad range of proficiencies and expertise, i1Publish Pro 3 Plus provides complete power and control to create the highest quality ICC profiles
  • Benefit from perfect printed colors every time with RGB, CMYK and CMYK + any 4 with intelligent iterative profiling technology for best quality results and advanced controls for black generation and separations
  • Achieve true colors on all modern laptop and desktop display technologies, such as LED, Plasma, RG Phosphor, OLED and Wide Gamut
  • Quickly check color output quality with the ColorChecker Proof visual assessment target, included with i1Publish
  • Correct for OBAs in paper with Optical Brightener Correction technology (when combined with i1iSis 2 automated chart reader)
  • Capture spot colors off virtually any surface - ideal for creative design or corporate brand requirements - and keep your PANTONE libraries up-to-date, accurate and ready to use in Adobe and Quark creative applications with PANTONE Color Manager for color palette creation and swatch bridging software

Key Features

  • Large aperture (8mm) gives more accurate results with better repeatability
  • Includes polarizing filter for improved profiles from textiles and other textured media
  • i1Publish Pro 3 Plus provides complete power & control to create the highest quality ICC profiles
  • Benefit from perfect printed colors every time with RGB, CMYK and CMYK + any 4
  • Achieve true colors on all modern laptop and desktop display technologies
  • Quickly check color output quality with the ColorChecker Proof visual assessment target

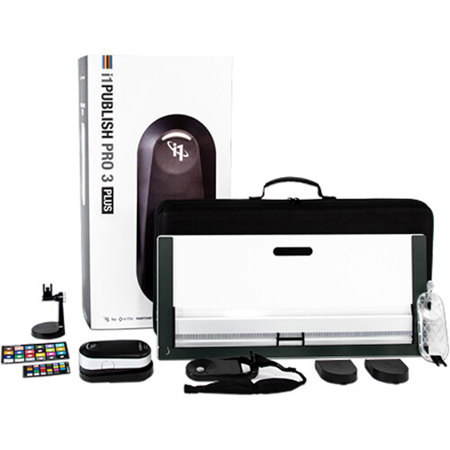

What's in the box:

  • X-Rite i1Pro 3 Plus Spectrophotometer (Measurement Device)
  • Calibration Plate
  • Polarizing Filter
  • Ambient Light Measurement Head
  • Monitor Holder
  • Positioning Target
  • XL Scanning Ruler
  • XL Backer Board
  • USB Cable
  • i1Profiler v3.x Software
  • PANTONE Color Manager Software
  • X-Rite 1 Year Limited Warranty
