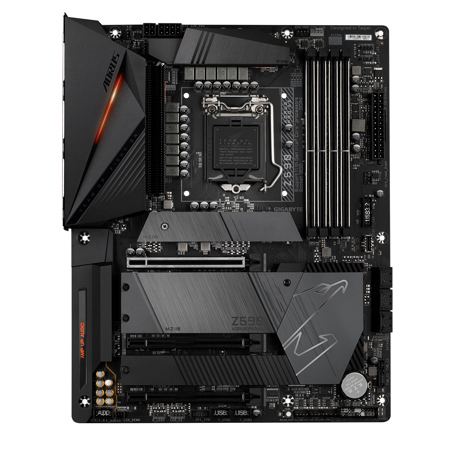

Gigabyte Z590 AORUS PRO AX ATX Motherboard with Triple CPU Gen4 M.2

Z590 AORUS PRO AX motherboard comes with upgraded power solution, all PCIe 4.0 design and outstanding connectivity to elevate your gaming experience to the next level.

Extreme Power Design
To unleash the full potential of the latest Intel 11th Gen CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z590 AORUS PRO AX is a true beast among motherboards

Power Design
• 90A Smart Power Stage for Each vCore Phase
• High Current Capacity MOSFET
• Tantalum Polymer Capacitors Array
• Lower Temperatures
• Improved Transient

Z590 AORUS PRO AX uses an pure digital CPU power design which includes a digital PWM Controller with Smart Power Stages and is capable of providing 90A of power from each phase for a total of 1080A. This 100% digital controller, new Tantalum Polymer Capacitors Array, and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision and stability in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum overclocking performance from the Eight core 11th Gen. Intel Core processors.

VRM Architecture

Power Efficiency

Improved Transient Response
By using brand new VRM design and Tantalum Polymer Capacitor Array, Z590 AORUS motherboard transient response and stability is highly improved under overclocking and heavy loading condition.

Unparalleled Performance
GIGABYTE understands that our customer won't stop chasing better computer performance, and strive to deliver that in our products. For the Z590 series, protective and optimized memory trace enhance the performance; faster read and write speed save time and improve efficiency; and generous M.2 Storage with thermal guards ensure unthrottled read and write performance. Future upgrades to the Z590 are made possible by the use of PCIe 4.0-ready components.

XMP 5000+

Support for DDR4 XMP Up to 5000MHz and Beyond
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

PCIe 4.0 Hardware Design

3 x M.2 PCIe 4.0 Slot
M.2 PCIe 4.0 x4 slot with lower impedance

1X PCIe 4.0 Slot
Reinforced PCIe 4.0 x16 with lower impedance

Mid-Loss PCB

Triple 7G/s Gen4 M.2 PCIe SSDs in RAID 0
The exclusive 3 PCIe 4.0 M.2 from CPU and 2nd Generation 7000 MB/s SSD provides unparalleled Read/ Write performance up to 20987 and 19378 MB/s.

Advanced Thermal Solution
Unthrottled performance is guaranteed by the enhanced thermal solution that incorporates Fins-Array II, Direct-Touch Heatpipe II and Thermal Guards II. The comprehensive solution delivers excellent heat dissipation. The Z590 AORUS PRO AX stays cool on VRMs and M.2 SSD even on full loading, making it most suitable for enthusiasts, overclockers and professional gamers.

Fins-Array II
Fins-Array II use a new louvered stacked-fins design which not only increases surface area by 300% compared to traditional heatsinks but also improves thermal efficiency with better

4X M.2 Thermal Guard
Enlarged double-sided M.2 heatsink prevents high-speed, large capacity PCIe 4.0/3.0 SSDs with double side flash from throttling due to overheating

Direct-Touch Heatpipe II
With an extra large 8mm heatpipe and made from a new manufacturing process that narrows the gap between the heatpipe and heatsink, the new Direct-Touch Heatpipe greatly help transfers heat on the MOSFET

LAIRD 7.5 W/mK Thermal Pad
By using 1.5mm thicker 7.5 W/mK thermal conductivity pads, it can transfer 4x more heat compared to traditional thermal pads in the same time

2X Copper PCB
2X Copper PCB design effectively lower the component temperature by its high thermal conductivity and low impedance

Fins-Array II
Fins-Array II uses brand new louvered stacked fins technology which is usually only used on industrial equipment that need compact heat exchangers. It has a special secondary fins structure that enhances heat transfer performance.

Circulation Zone
Because of pressure difference and flow separation, a circulation zone will be formed between louvered fins. This circulation will cause flow entrain and eject in the vortice form which improves thermal efficiency.

AORUS M.2 Thermal Guard II
With durability in mind, GIGABYTE provides a new thermal solution for large capacity M.2 SSD devices with double side flash. The M.2 Thermal Guard II uses a double-sided heatsink design and prevents throttling and bottlenecks on high speed M.2 SSDs by dissipating heat before it becomes an issue.

Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Headers & Sensors
• 8 PWM/DC Fan Headers
• 9 Internal Temperature Sensors
• 2 External Temperature Sensor Cables

Cooling Features

High Current Support
Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

Precision Control
Up to 7 temperature/fan speed control points for precise fan curve

Dual Curve Mode
Slope/Stair dual mode for different user scenario

Fan Stop
Fan can stop completely below users' specified temperature point

Smart Fan 6 BIOS UI

Improve fan curve UI
We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.

Slope/Stair dual graph mode
Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.

Manual Input
For advanced users, we provide fan speed manual input for more precise control.

EZ Tuning
Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.

Fan curve profile
Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.

Intelligent Fan Control Design

Fan Stop
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature-all of it can be customized to your liking.

Noise Detection
With the new Noise Detection function, you can monitor noise level of all devices including fans, CPU coolers, graphics card, etc. in real time, and you can determine how fast your fan speed needs to be. Our bundled Noise Detection cable doesn't include any sound recording function, it simply detects sound pressure while protecting your privacy.

Next Generation Connectivity
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. Z590 AORUS PRO AX provides all next generation network, storage, and WIFI connectivity to keep you up to speed.

Intel 2.5GbE LAN Onboard

2X Faster than ever
Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience. Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 ethernet

New Introduce Intel WiFi 6 802.11ax + BT 5 Module
Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Benefit of WIFI 6
• 5.5X throughput than 802.11ac 1x1
• 4X better network capacity, no traffic jams especially in those dense area with lots of devices
• Network efficiency increase for better user experience

Hi-Res Audio
Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times.

Immersive Gaming ViBes

Realtek High-End HD Audio Codec
• Supports audio format up to 32-bit/384KHz and output SNR up to Rear/Front 120dB 110dB.
• Automatically detects impedance of audio device, preventing low volume and distortion.
• Stream voice with up to 110dB(A) SNR via microphone.

Definitive Aesthetics
Z590 AORUS PRO AX features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make their PC more unique and stylish.

RGB Fusion

Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard
