Questions & Answers

FAQ

Can the Thunderbolt 3 Dock with 500GB NVMe M.2 SSD be used with both Mac and Windows systems?

Yes, it is preformatted for Mac but can be easily reformatted for compatibility with Windows systems.

What is the data transfer speed of the Thunderbolt 3 Dock with 500GB NVMe M.2 SSD?

The dock provides a high-speed data transfer rate of up to 40Gbps.

Can I connect multiple devices to the Thunderbolt 3 Dock with 500GB NVMe M.2 SSD?

Yes, the dock allows for the connection of multiple peripherals and has the ability to daisy chain up to five additional devices.

Is the NVMe SSD in the Thunderbolt 3 Dock upgradeable?

Yes, the Thunderbolt 3 Dock features a user-upgradeable NVMe SSD slot, allowing you to expand storage without compromising performance.

What is the build quality of the Thunderbolt 3 Dock with 500GB NVMe M.2 SSD?

The dock is encased in a rugged aluminum frame, designed for durability and daily use.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Glyph Technologies Dock Specifications

Connections

Connections

Jump to...
  • USB

    1x USB 3.1 Gen 2 Type-C (3 A)
    2x USB 3.1 Gen 1 Type-A (1.2 A)

  • Thunderbolt

    1x Thunderbolt 3 (87W), 40Gbps

  • Ethernet

    1x RJ45 (10/100/1000 Mbps)

  • Display

    1x DisplayPort 1.2

  • Audio

    1x 1/8" / 3.5 mm Headphone
    1x 1/8" / 3.5 mm Microphone

  • Memory Card Slots

    1x SD (Unspecified Type) (UHS-II [312 MB/s])

Host Connections

Jump to...
  • System Connection

    1x Thunderbolt 3 Female

  • Connection Type

    Detachable Cable

Hardware

Jump to...
  • Storage Capacity

    500GB SSD

  • Power Source

    AC Adapter

  • Power Port

    Barrel Connector (Unspecified Diameter) (Input)

General

Jump to...
  • Supports

    Single 5k display at 60Hz (5120x2880)
    Dual 4K displays at 60Hz
    Supports 87W power delivery
    SD (UHS-II) speeds up to 270MB/s
    USB 3.0 type-A supports 5Gbps / 5V at 1.2A
    USB 3.0 type-C supports PD 5V at 3A
    M.2 socket supports PCI-e Gen.3 x2

  • Data Transfer Rate

    NVMe SSD speeds up to 1500MB/s

  • Operating System Support

    Mac OS 10.X or above, Windows 10 or later, Computer with Thunderbolt 3 port

  • UASP Support

    No

  • Enclosure Material

    Aluminum

  • Lock Slot

    No

  • Cooling

    Passive heat dissipation

  • Dimensions

    9.4 x 3.75 x 0.9" (23.88 x 9.53 x 2.29cm)

  • UPC Code

    691450003668

7 Accessories for Glyph Technologies Thunderbolt 3 Dock with 500GB NVMe M.2 SSD

  • All Accessories (7)
  • Cables & Adapters (6)
  • Bags & Cases (1)

About Glyph Technologies Dock

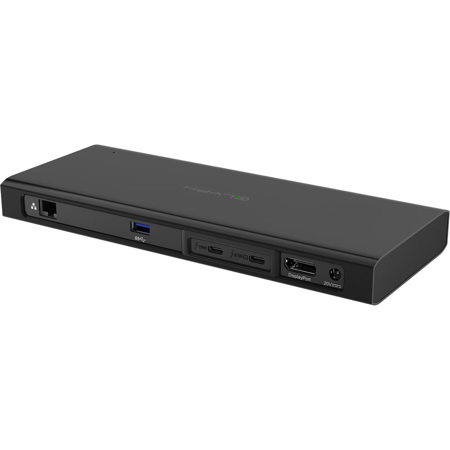

For professionals seeking a high-tech, durable, and compact solution to their data storage and connectivity needs, the Glyph Thunderbolt 3 Dock with 500GB NVMe M.2 SSD is the ideal choice. This stylish, portable device is designed to serve as the hub of your digital workspace, delivering a multitude of ports, exceptional power, and ample storage at unparalleled speeds.

As the only Thunderbolt 3 Dock that truly stands out, it is perfect for those looking to optimize their workstation setup or digital imaging technicians (DITs) aiming to streamline their equipment cart. The Glyph Thunderbolt 3 Dock offers all the ports you could need, with the added benefit of a user-upgradeable NVMe SSD option.

Encased in a rugged aluminum frame, this dock is built to withstand the rigors of daily use. It allows you to connect all your peripherals and charge your Thunderbolt 3 (USB-C) enabled MacBook Pro with a single cable, simplifying your workspace and reducing clutter.

Boasting up to 40Gbps of throughput for data and video, this Thunderbolt 3 Dock ensures rapid data transfer and seamless video streaming. It also offers the ability to daisy chain up to five additional devices, expanding your capabilities without compromising on performance or space.

This Glyph Thunderbolt 3 Dock is the first to integrate the power of NVMe SSDs, delivering speeds of up to 1,500 MB/s. This means you can increase your storage capacity without sacrificing performance. Preformatted with HFS+ with Journaling, it is Time Machine compatible right out of the box. A simple reformat is all it takes to make it compatible with Windows systems, making it a versatile choice for multi-platform users.

Glyph Technologies Dock Features

  • Connect all your peripherals and charge your Thunderbolt 3 (USB Type-C) enabled MacBook Pro with a single cable
  • Thunderbolt 3 Dock integrates the power of NVMe SSDs and includes a 500GB NVMe PCIe 3.0 x2 M.2 SSD

Key Features

  • Thunderbolt 3 Dock with integrated 500GB NVMe M.2 SSD for high-speed data transfer
  • Single-cable connectivity to charge and connect multiple peripherals
  • Up to 40Gbps throughput for lightning-fast data and video streaming
  • Durable aluminum frame for a rugged, portable, and stylish design
  • User-upgradable SSD slot to expand storage without sacrificing speed
  • Preformatted for Mac with easy reformatting for Windows compatibility

What's in the box:

  • Glyph Technologies Thunderbolt 3 NVMe Dock (500GB SSD)
  • Thunderbolt 3 Cable
  • 87W External Power Supply
  • Glyph Technologies 3 Year Limited Warranty
