Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
24 AWG Solid/ 28-26 AWG Stranded: (0.037 - 0.04") 0.95 - 1.05mm
0.240" (6.1mm )
Yes
Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroCla
UL94 V0, IEC 60695-11-1
Phosphor Bronze - .012" thick
Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
Polycarbonate
Hard Brass
80 Micro-Inch minimum Nickel Platin
Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
Solid and Strande
104 Degree to 158 Degree F (-40 Degree C to +70 Degree C)
2000 Minimum Cycle
20 Milli-Ohms max
30 VAC/42 VDC at 1.5 Amps
UL Listed, RoHS, FCC, NEC
817777017786

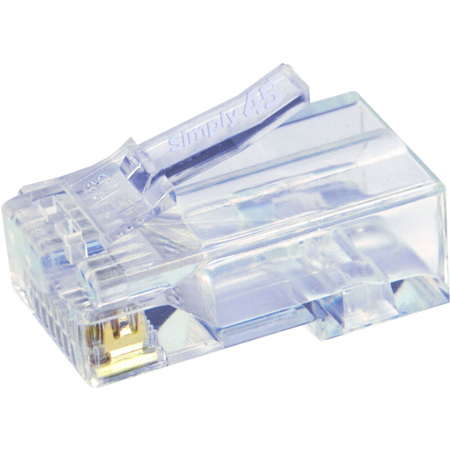

A top-tier solution for your networking needs, the Simply45 Shielded Internal Ground Standard WE/SS RJ45 Modular Plugs are designed for optimal performance and reliability. These high-quality RJ45 modular plugs are perfect for 24 AWG Cat5e STP Solid and 28-24AWG Cat5e/6/6a STP Stranded cables, accommodating wire conductor diameters of 0.95-1.05mm (0.037-0.041") and a maximum cable OD of 6.10mm (0.24").
As a leading brand in the industry, Simply45 is renowned for its innovative and performance-driven products. The S45-1050 model is a testament to this reputation, featuring a single piece fully shielded design with an internal ground. This unique design eliminates the need for a load bar and provides superior protection against electromagnetic and radio frequency interference.
These RJ45 modular plugs support performance standards such as ANSI/TIA 568.2-D for Cat5e, ISO/IEC 11801 Class D, and applicable patch cord standards for Cat6a, Cat6, and Cat5e. The 3 Prong Pin Design with 50micro of True 24ct Gold Plating ensures improved electrical performance and signal integrity, providing three points of contact with the copper wire conductor for a stronger hold and better connection.
Ideal for both solid and stranded LAN cables, the S45-1050 model is versatile and efficient. It works exceptionally well with most Cat5e STP (shielded twisted pair) solid 24 AWG LAN cables and supports wire diameters of 0.95mm - 1.05mm. It's also compatible with stranded shielded LAN cables used on patch cords/leads, including 10G rated Cat6a S/FTP patch leads.
The unique internal design of the S45-1050 RJ45 modular plug allows the LAN cable to be inserted further into the plug, reducing the length of untwisted wires and improving NEXT performance. These plugs are UL94 V0 rated for all commercial installations and are recommended for CMP Plenum, CMR, CM; and LSZH up to B2ca rated LAN cables.
The S45-1050 model comes with a light blue tinted plug with overall internal ground shielding for easy identification. Packaged in a convenient 50pc plastic jar, these RJ45 modular plugs are UL Listed, bearing the UL Logo on the Simply45 packaging for quality assurance. Ideal for PoE/PoH applications, these plugs are compliant with industry standards like ANSI/TIA 568.2-D, 1096-A; ISO/IEC 11801, 60603-7, 8877:1992; FCC.
