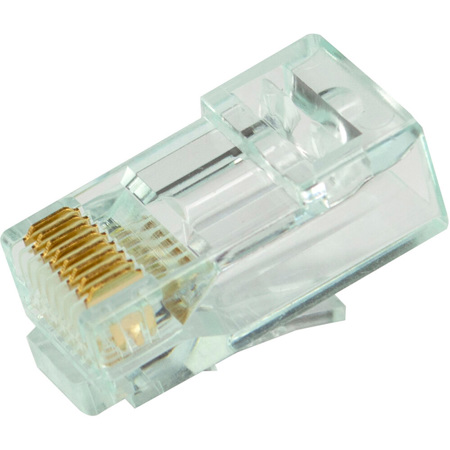

Go Simply Connect Shielded External Ground Standard WE/SS RJ45 Modular Plugs with Bar45 for Cat6 STP, Green Tint, 50-Pack, Jar

After extensive research and development, Simply45 presents the Shielded External Ground Standard WE/SS RJ45 Modular Plugs for Cat6 STP. This pack of 50 plugs, housed in a convenient jar, is a testament to Simply45's commitment to innovation and performance in the field of networking solutions.

These RJ45 modular plugs are designed specifically for PE Insulated Wire Conductors, typically found in Cat6 Shielded STP and Cat6a F/UTP LAN cables. They offer superior signal isolation and terminated performance, ensuring reliable and efficient networking.

The unique two-piece design of these plugs separates the metal shell shield from the RJ45 body, resulting in a more efficient termination process. This design allows larger diameter shielded LAN cables to be inserted further into the plug, improving Near-End Crosstalk (NEXT) performance by reducing the length of untwisted wires inside the plug.

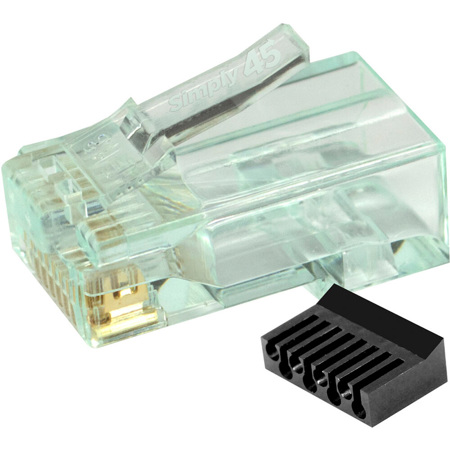

The Simply45 S45-1150 RJ45 modular plugs come with the exclusive Bar45 load bars. These are designed to improve termination performance and simplify the termination process. The Bar45 load bars are made of materials that provide better signal isolation and substantially reduce the effects of crosstalk inside the RJ45 modular plug.

These RJ45 modular plugs are equipped with a 3-prong pin design with 50 micro of True 24ct Gold Plating. This design provides three points of contact with the copper wire conductor, improving electrical performance and signal integrity.

The S45-1150 RJ45 modular plugs are ideal for most Cat6 STP and Cat6a F/UTP solid 23 AWG LAN cables with a maximum cable diameter of 8.0mm and wire conductor sizes between 1.10mm - 1.20mm.

These plugs are UL94 V0 rated for all commercial installations and are recommended for CMP Plenum, CMR, CM; and LSZH up to B2ca rated LAN cables. They come with a light green tint for easy identification and are housed in a wide-mouth jar for easy hand access.

The S45-1150 RJ45 modular plugs are UL Listed and bear the UL Logo on the Simply45 packaging, representing the highest quality and safety standards. They are also ideal for Power over Ethernet (PoE) and Power over HDBaseT (PoH) applications, ensuring lower resistance and less heat build-up than cheaper made RJ45 that are out on the market.

In conclusion, the Simply45 Shielded External Ground Standard WE/SS RJ45 Modular Plugs for Cat6 STP are a reliable, high-quality, and cost-effective solution for your networking needs. They adhere to industry standards including ANSI/TIA 568.2-D Class E, 1096-A; ISO/IEC 11801 Class E, 60603-7, 8877:1992; FCC.
