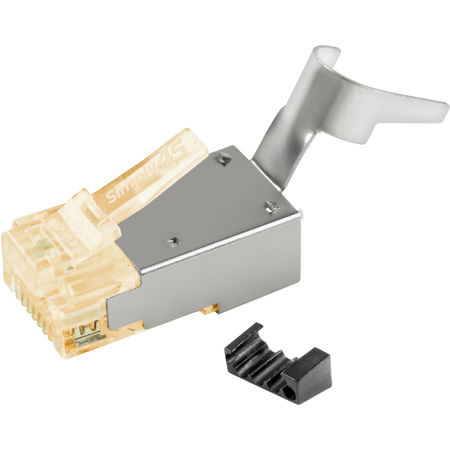

Go Simply Connect 10G Shielded External Ground Standard WE/SS RJ45 Modular Plugs with Bar45 for Cat7/7a/6a STP, Orange Tint, 50-Pack, Jar
SKU: GOS451155 MFR: S45-1155
$109.95
Key Features
- Ensure reliable connections with these shielded RJ45 modular plugs for Cat7/7a/6a STP cables.
- Achieve superior 10G data transfer speeds with these high-performance Ethernet connectors.
- Simplify termination with the included Bar45 load bar, designed for easy cable management.
- Built to last: these durable RJ45 plugs feature robust construction and gold-plated contacts.
- Wide compatibility: these standard WE/SS RJ45 plugs work with solid and stranded conductors.
- Get a lifetime limited warranty with these UL Listed, RoHS compliant modular plugs.
Special Order?Estimated to Ship: 08/20/2025
Calculate Shipping
See Options
1
Need help? Ask our experts.
Overview
Compare
Specs
Q&A
About Go Simply Connect RJ45 Modular Plugs
It's time to elevate your networking capabilities with the Simply45 10G Shielded External Ground Standard WE/SS RJ45 Modular Plugs. This 50-pack jar of high-quality, durable RJ45 modular plugs is designed for optimal performance with 10G STP LAN cables, including Cat7a, Cat7, and Cat6a.
These stylish, orange-tinted plugs are not just visually appealing but also serve a practical purpose, making it easy to identify and differentiate your Ethernet cables. Each plug is designed to support 23 AWG FPE Insulated Wire Conductors with a size range of 1.21-1.45mm/0.047"-0.057", and a maximum cable OD of 8.0mm (0.315").
The Simply45 RJ45 modular plugs are renowned for their innovative design and reliable performance. They are engineered to simplify and improve the termination process of shielded 10G LAN cables, which traditionally can be time-consuming and frustrating. The two-piece plug design separates the metal shell shield from the RJ45 body, allowing for a faster, easier, and more efficient termination process.
The unique Bar45 Load Bar is designed to enhance termination performance and simplify the process. It's made of materials that provide superior signal isolation, reducing the effects of crosstalk inside the RJ45 modular plug. This innovative design also reduces the length of untwisted wires inside the plug, improving twisted pair signal performance.
The Simply45 RJ45 modular plugs are UL94 V0 Commercial Rated, making them suitable for all commercial installations. They are also PoE/PoH Rated, ensuring lower resistance and less heat build-up than other RJ45 plugs in the market.
These RJ45 modular plugs are compliant with industry standards including ANSI/TIA 568.2-D Class E, 1096-A; ISO/IEC 11801 Class E, 60603-7, 8877:1992; FCC.
Whether you're setting up a large-scale networking project or simply upgrading your home office, the Simply45 10G Shielded External Ground Standard WE/SS RJ45 Modular Plugs provide a reliable, cost-effective, and high-performance solution.
Go Simply Connect RJ45 Modular Plugs Features
- Two Piece Plug
- Bar45 Load Bar
- 3 Prong Pin Design with 50micro of True 24ct Gold Plating
- Solid LAN Cables
- Improved Crosstalk Performance
- Commercial Rated
- Color Tinted RJ45 Modular Plugs
- Wide Mouth Jar for Easy Hand Access
- Color Coded Jar Caps
- UL Listed
- PoE/PoH Rated
- Compliant to Industry Standards
