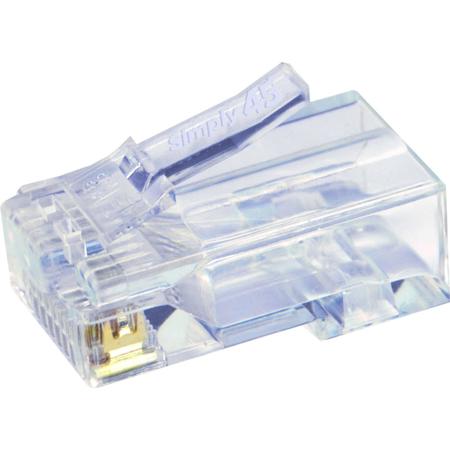

Go Simply Connect Unshielded Pass Thru RJ45 Modular Plugs for Cat5e UTP, 50-Pack

A comprehensive solution for your networking needs, the Simply45 Unshielded Pass Through RJ45 Modular Plugs are designed for optimal performance and reliability. This 50-pack set is perfect for those seeking a cost-effective solution for connecting multiple Ethernet cables.

These modular plugs are compatible with 24AWG Solid (Cat5e UTP), 28-26AWG Stranded (Cat5e/6 Stranded) LAN cables, accommodating wire conductors of 0.95 - 1.05mm/ 0.037" - 0.041" and a maximum cable OD of 6.5mm (0.255"). They are UL94 V0 Commercial Rated, ensuring they meet the highest standards for safety and quality.

The Simply45 brand is renowned for its innovative and high-performing RJ45 modular plug solutions. This particular model, the S45-1601, mirrors the S45-1600 but is conveniently packaged in a 50-piece plastic clamshell.

Notable features of these modular plugs include a single piece design, eliminating the need for a load bar, and a 3 Prong Pin Design with 50micro of True 24ct Gold Plating. This design provides three points of contact with the copper wire conductor, improving electrical performance and signal integrity.

These RJ45 modular plugs are ideal for both solid and stranded LAN cables, specifically Cat5e UTP (unshielded twisted pair) solid 24 AWG LAN cables and stranded 28-26 AWG. They also work well with most Cat6 and Cat5e stranded unshielded LAN cables used on patch cords/leads.

The straight-line wire insert allows for easy insertion of LAN cable wire conductors, while the unique internal design reduces the length of untwisted wires, improving NEXT performance.

Commercially rated, these RJ45 modular plugs are UL94 V0 (IEC 60695-11-10) rated for all commercial installations. They are recommended for CMP Plenum, CMR, CM; and LSZH up to B2ca rated LAN cables.

For easy identification, the S45-1501 comes with a light blue tint. The convenient 50pc plastic clamshell packaging is sturdy and can be repurposed after use.

These pass-through RJ45 modular plugs are UL Listed, bearing the UL Logo on the Simply45 packaging, signifying the highest quality and safety standards. They are also ideal for PoE/PoH applications, ensuring lower resistance and less heat build-up than cheaper alternatives.

In compliance with Industry Standards: ANSI/TIA 568.2-D, 1096-A; ISO/IEC 11801, 60603-7, 8877:1992; FCC, these Simply45 Unshielded Pass Through RJ45 Modular Plugs are the perfect choice for your networking setup.
