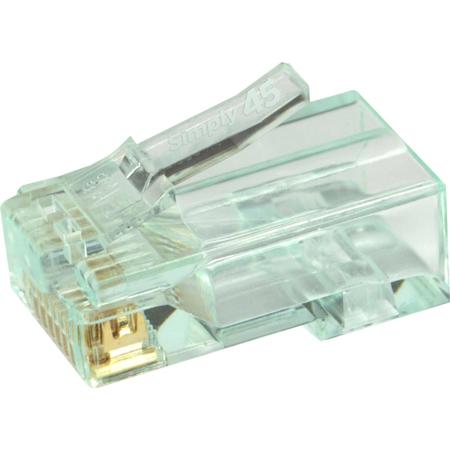

Go Simply Connect Unshielded Pass Thru RJ45 Modular Plugs for Cat6 UTP, 100-Pack, Jar

Explore the unparalleled performance and innovation of the Simply45 Unshielded Pass Through RJ45 Modular Plugs. This 100-pack jar of high-quality, durable RJ45 modular plugs is designed for use with Cat6 UTP (unshielded twisted pair) solid 23 AWG LAN cables, as well as 26-24AWG stranded Cat5e/6 UTP stranded cables.

These reliable RJ45 modular plugs are crafted by Simply45, a leading brand in the industry, known for its commitment to quality and performance. Each plug features a single-piece design, eliminating the need for a load bar and ensuring a straightforward, efficient setup.

The S45-1600 model is equipped with a 3-prong pin design, coated with 50micro of True 24ct Gold Plating. This unique design provides three points of contact with the copper wire conductor, enhancing electrical performance and signal integrity while ensuring a stronger grip on the wire conductors.

These RJ45 modular plugs are ideal for both solid and stranded LAN cables. The straight-line wire insert allows for easy, straight-line arrangement of LAN cable wire conductors, accommodating sizes from 0.95mm - 1.05mm (0.037" - 0.041").

The S45-1600 model also boasts improved crosstalk performance. Its unique internal design allows the LAN cable to be inserted further into the RJ45 plug, reducing the length of untwisted wires and enhancing NEXT performance.

These RJ45 modular plugs are UL94 V0 (IEC 60695-11-10) rated for all commercial installations and are recommended for CMP Plenum, CMR, CM; and LSZH up to B2ca rated LAN cables.

The S45-1600 model comes with a light green tint for easy identification, and the jar features a wide mouth for easy hand access. The jar cap is also color-coded to match the color tint of the RJ45 modular plug, making it easy to identify the items in your bag or kit.

These RJ45 modular plugs are UL Listed and bear the UL Logo on the Simply45 packaging, representing the highest quality and safety standards. They are also ideal for PoE/PoH applications, ensuring lower resistance and less heat build-up than cheaper made RJ45 that are out on the market.

Compliant with Industry Standards: ANSI/TIA 568.2-D Class E, 1096-A; ISO/IEC 11801 Class E, 60603-7, 8877:1992; FCC.

In conclusion, the Simply45 Unshielded Pass Through RJ45 Modular Plugs offer a cost-effective, high-quality solution for your large-scale networking projects.
