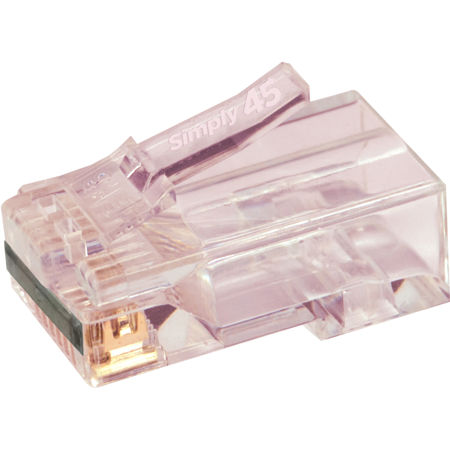

Go Simply Connect ProSeries Unshielded Pass-Through RJ45 Modular Plugs with Cap45 for Cat6/6a UTP, Red Tint, 100-Pack, Jar

Where precision and protection are paramount in network installations, the Simply45 ProSeries Unshielded Pass-Through RJ45 Modular Plugs with Cap45 emerge as the pinnacle of connectivity solutions. These high-quality, durable plugs are designed to facilitate a seamless and reliable connection for your Cat6/6a UTP cables, ensuring optimal performance for your networking needs.

Crafted with a meticulous eye for detail, the ProSeries plugs feature a unique High/Low Staggered Wire Insert, allowing for straightforward and efficient wire alignment. This design accommodates 23 AWG Solid LAN cable wire conductors ranging from 1.05mm to 1.2mm, making it an ideal choice for larger unshielded LAN cables. The wide mouth jar packaging provides easy hand access, ensuring that each of the 100 red-tinted plugs is readily available for quick and effortless installations.

The innovative Cap45, a patented isolation cap/bar, is a standout feature of these RJ45 modular plugs. After termination, it snaps onto the front of the plug, safeguarding against electrical shorting in the RJ45 socket. This revolutionary addition not only enhances safety but also promotes peace of mind, knowing that your connections are secure from potential wiring mishaps.

Each plug boasts a 3 Prong Pin Design with 50 microinches of true 24-carat gold plating, offering three points of contact with the copper wire conductor, as opposed to the standard two-prong design. This not only improves electrical performance and signal integrity but also ensures a more robust connection to the wire conductors.

The ProSeries plugs are not only easy to install but also affordable, making them a cost-effective solution for both commercial and certified system terminations. They are UL94 V0 Commercial Rated, signifying adherence to the highest safety and quality standards. Additionally, the plugs are color-coded for easy identification, with a light red tint that distinguishes them from other connectors in your toolkit.

These RJ45 modular plugs are also PoE/PoH rated, signifying their suitability for Power over Ethernet and Power over HDBaseT applications. The meticulous internal design allows for larger size LAN cables to be inserted further into the RJ45 plug, reducing the length of untwisted wires and improving NEXT performance.

Compliant with industry standards, including ANSI/TIA 568.2-D for Cat6 and Cat6a, ISO/IEC 11801 Class E and Ea, and more, the Simply45 ProSeries Unshielded Pass-Through RJ45 Modular Plugs with Cap45 are the quintessential choice for professionals seeking a reliable, high-performance connectivity solution.
