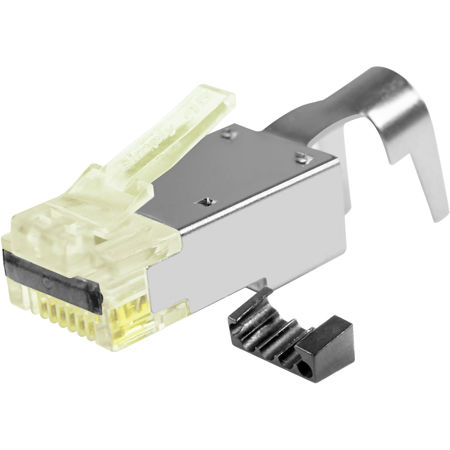

Go Simply Connect ProSeries 10G Shielded External Ground Pass-Through RJ45 Modular Plugs with Cap45 & Bar45 for Cat7a/7/6a STP, Yellow Tint, 50-Pack, Jar

Overcome network interference and ensure high-speed data transfer with the ProSeries 10G Shielded External Ground Pass-Through RJ45 Modular Plugs. These durable and reliable plugs are designed to provide superior protection against electromagnetic interference (EMI) and radio frequency interference (RFI), enhancing the overall performance of your connection.

These high-quality RJ45 modular plugs are compatible with Cat7a/7/6a STP, making them ideal for networks with high bandwidth requirements. They are designed to support 10GBase-T performance applications over shielded twisted pair cables, adhering to the ANSI/TIA 568.2-D, ISO/IEC 11801 Class F, Ea, and E performance standards.

The ProSeries RJ45 plugs feature a unique two-piece design, separating the metal shell shield from the RJ45 body. This innovative design allows large diameter 10G LAN cables to be inserted further into the plug, reducing the length of untwisted wires inside the plug and improving NEXT performance.

The plugs also include the exclusive Cap45, an isolation cap that snaps onto the front of the pass-through RJ45 plug after termination, covering exposed wire ends and eliminating any electrical risks. The Bar45 load bar, made of a material that provides better signal isolation, improves signal integrity and simplifies the termination process.

These RJ45 modular plugs are designed to accommodate large diameter shielded LAN cables, including Cat7a, Cat7, Cat6a with S/FTP, U/FTP, F/FTP, and F/UTP constructions. They work with a multitude of jacket materials, including PVC, Plenum, LSZH, Extruded, and even PUR, and can accommodate LAN cable diameters up to 8.0mm.

The ProSeries RJ45 plugs feature a 3-prong pin design with 50micro of true 24ct gold plating, ensuring improved electrical performance and signal integrity. They are UL94 V0 commercial rated, recommended for CMP Plenum, CMR, CM, and LSZH up to B2ca rated LAN cables.

Available in a convenient 50-pack jar with a yellow tint for easy identification, these RJ45 modular plugs are an affordable and easy-to-install solution for all your networking and telecommunications needs.
