Goodview Dynamic Detection Display Temperature Scanner Kiosk with Wall Mount
See all Goodview items

Goodview Dynamic Detection Display Temperature Scanner Kiosk with Wall Mount

SKU: GOSV1080W

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Goodview Temperature Scanner Specifications

Camera

Camera

Jump to...

  • Resolution

    2 Million Pixels

  • Type

    Binocular (Wide Dynamic Camera)

  • Aperture

    F2.4

  • Focus

    50-150cm

  • White Balance

    Auto

  • Photo Flood Light

    LED & IR Dual Photo Flood Light

Screen

Jump to...

  • Size

    8" (20.32cm) IPS LCD Screen

  • Resolution

    800 x1280

  • Touch

    Not supported (optional support)

Processor

Jump to...

  • CPU

    RK3288 quad-core (optional RK3399 6-core, MSM8953 8-core)

  • Storage

    EMMC 8G

Interface

Jump to...

  • Network Module

    1x Ethernet RJ-45 Port, WiFi

  • Audio

    2.5W / 4R speakers

  • USB

    1 USB OTG, 1 USB HOST standard A port

  • Serial

    1 RS232 serial port

  • Relay Output

    1

  • Euroblock

    1x input
    1x output

Function

Jump to...

  • Card Reader

    Optional IC card reader, ID card

  • Facial Recognition

    Supports Simultaneous detection and tracking

  • Face Library

    Up to 30,000

  • 1:N Facial Recognition

    Supported

  • 1:1 Face Comparison

    Supported

  • Identify Distance Configuration

    Supported

  • UI Interface Configuration

    Supported

  • Firmware Upgrades

    Supported

  • 3rd Party Interface

    Interfaces include device management, personnel / photo management, record query, etc.

  • Deployment

    Support for Cloud Deployment, LAN, Stand-Alone

Thermal Imaging Module

Jump to...

  • Temperature Detection

    Supported
    Distance: 1m (optimal distance 0.5 meter)

  • Temperature measurement

    Accuracy: <= +/-0.5 Degree C
    Range: 50-107 Degree F (10-42 Degree C)

  • Thermal field of view

    89.6 x 89.6 Degree F (32 X 32 Degree C)

  • Temperature Alarm

    Supported

General

Jump to...

  • Power

    DC12V

  • Operating temperature

    32 - 140 Degree F (0 - 60 Degree C)

  • Storage temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Power Consumption

    13.5W¼Max¼

  • Installation method

    Gate bracket installation

  • Dimensions

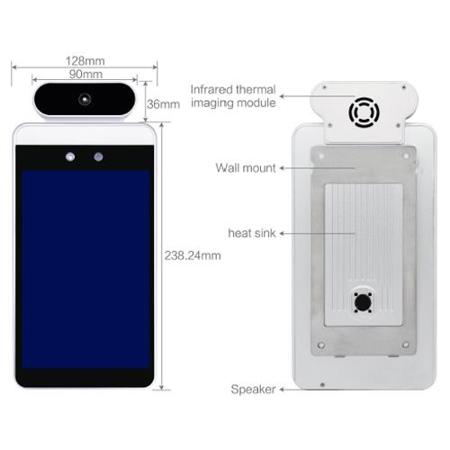

    10.7 x 5 x 0.84" (274 x 128 x 21.5mm)

About Goodview Temperature Scanner

Providing real-time protection and peace of mind for your organization and its customers. Temperature and facial scanners with <= .5 Degree C accuracy

Optimize your Organizational AV Safety Solutions
The Dynamic Detection Display line utilizes advanced thermal detection technology to quickly scan internal body temperatures. Combined with intuitive EZ-Pass software, Dynamic Detection Displays can quickly identify potential safety threats and help mitigate large-scale exposure.

Goodview Temperature Scanner Features

  • <= .5 Degree C Accuracy
  • Non-Touch Scanning
  • Network Capabilities
  • 3rd Party Integration Options
  • Toggle Capability for Facial Recognition Features
  • Optional Card Reader Features
  • Wall, Table & Podium Mounting Options

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • <= .5 Degree C Accuracy
  • Non-Touch Scanning
  • Network Capabilities
  • 3rd Party Integration Options
  • Toggle Capability for Facial Recognition Features
  • Optional Card Reader Features

What's in the box:

  • Dynamic Detection Display Temperature Scanner Kiosk with Wall Mount
  • Goodview 1 Year Limited Warranty
