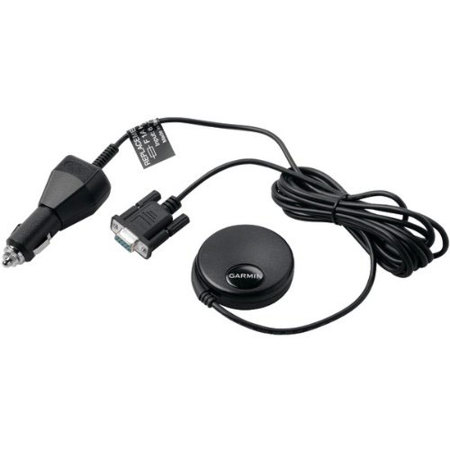

Garmin GPS 18x PC OEM Serial 12-Channel WAAS-Enabled Sensor

The GPS 18x is an OEM, high-sensitivity GPS sensor for use in automotive, fleet vehicle and electronics applications that require a small, highly accurate GPS receiver.

Use in Small Spaces
This high-sensitivity, 12-parallel-channel, WAAS-enabled GPS receiver is available in CMOS-level serial or USB 2.0 full-speed versions and comes with an integrated magnetic base. The puck-like receiver is 2.4" (6.1 cm) in diameter and weighs just a few ounces, making it an ideal solution for applications where space is at a premium.

Choose Your Connection Type
The GPS 18x is offered in 3 different cable configurations. All 3 versions of the GPS 18x come complete with non-volatile memory for storage of configuration information, a real-time clock and raw measurement output data for sophisticated customer applications.

• GPS 18x PC - has DB-9 pin serial connector with a 12 V cigarette lighter adapter; can output data in NMEA 0183 format (industry standard) or proprietary Garmin format
• GPS 18x USB - has A-style USB connector, compatible with USB 2.0 and 1.1 full-speed hosts; can output data in Garmin proprietary format only
• GPS 18x LVC - has bare wire for connection to a variety of applications; can output data in NMEA 0183 format (industry standard) or proprietary Garmin format; provides a pulse-per-second logic-level output with a rising edge aligned to within 1 microsecond of UTC time

The GPS 18x OEM is a high-sensitivity GPS sensor that replaces the GPS 18 OEM.

GPS 18x PC
The GPS 18x PC interfaces to a serial port of a computer via a DB-9 connector and receives power through a 12-volt cigarette lighter adapter. The unit accepts TIA-232-F (RS-232) level inputs and transmits voltage levels that swing from zero V (ground) to 5 V TIA-232-F (RS-232) polarity.

The GPS 18x PC can cause an issue with Windows operating systems if the DB9 connector is plugged into the computer before the navigation software is up and running. The Windows operating system may interpret the serial connector on the GPS 18x as a serial mouse.
