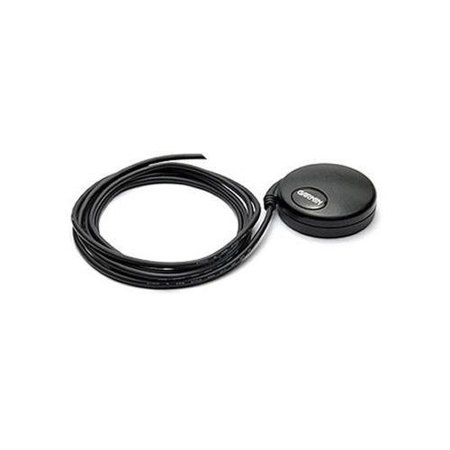

Garmin GPS 18x LVC 5m OEM Serial 12-Channel WAAS-Enabled Sensor

The GPS 18x is an OEM, high-sensitivity GPS sensor for use in automotive, fleet vehicle and electronics applications that require a small, highly accurate GPS receiver.

Use in Small Spaces
This high-sensitivity, 12-parallel-channel, WAAS-enabled GPS receiver is available in CMOS-level serial or USB 2.0 full-speed versions and comes with an integrated magnetic base. The puck-like receiver is 2.4" (6.1 cm) in diameter and weighs just a few ounces, making it an ideal solution for applications where space is at a premium.

Choose Your Connection Type
The GPS 18x is offered in 3 different cable configurations. All 3 versions of the GPS 18x come complete with non-volatile memory for storage of configuration information, a real-time clock and raw measurement output data for sophisticated customer applications.

• GPS 18x PC - has DB-9 pin serial connector with a 12 V cigarette lighter adapter; can output data in NMEA 0183 format (industry standard) or proprietary Garmin format
• GPS 18x USB - has A-style USB connector, compatible with USB 2.0 and 1.1 full-speed hosts; can output data in Garmin proprietary format only
• GPS 18x LVC - has bare wire for connection to a variety of applications; can output data in NMEA 0183 format (industry standard) or proprietary Garmin format; provides a pulse-per-second logic-level output with a rising edge aligned to within 1 microsecond of UTC time

The GPS 18x OEM is a high-sensitivity GPS sensor that replaces the GPS 18 OEM.

GPS 18x LVC-5m
The unit accept TIA-232-F (RS-232) level inputs and transmit voltage levels that swing from ground to the positive supply voltage, TIA-232-F (RS-232) polarity. They also have reverse polarity protection. The cable contains wires for power, ground, receive, transmit and measurement pulse output. At the end of the cable, the wires are terminated in a connector that is used by Garmin for testing purposes.
