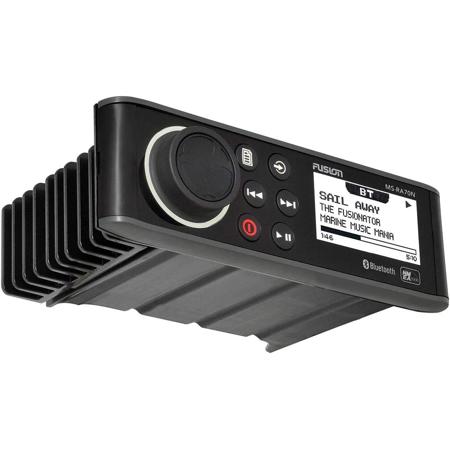

Garmin Fusion MS-RA70N Monochrome LCD Marine Stereo, NMEA 2000 Connectivity

SKU: GP0100151611 MFR: 010-01516-11
Earn VIP Reward Points

Key Features

  • Enjoy crystal-clear audio with this Garmin marine stereo's powerful 200W peak output.
  • Stay connected on the water with integrated Bluetooth & ANT wireless technology.
  • Easily control your marine audio via Fusion-Link with your smartphone or Garmin watch.
  • This durable marine stereo is IPX7 rated, safeguarding against splashes and weather.
  • Seamlessly connect to NMEA 2000 networks for integrated marine system control.
  • Upgrade your boat's sound with multi-zone technology for personalized audio experiences.
See More Product Details
Special Order?Estimated to Ship: 08/11/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$28.99

2 Year

$51.99

3 Year

$64.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Garmin Fusion MS-RA70 Specifications

General

General

Jump to...
  • Water Rating

    IPX7 (Front Panel Only, When Properly Installed)

  • Power Input

    10.8-16 VDC

  • Operating Temperature Range

    32 Degree to 122 Degree F (0 Degree to 50 Degree C)

  • Current (Max)

    15 A

  • NMEA 2000 Len

    1 (50 mA)

  • Bluetooth Wireless Range

    Up to 30' (10m)

  • ANT Wireless Range

    Up to 10' (3m)

  • Wireless Frequencies/Protocols

    Bluetooth 2.4 Ghz @ +1.9 dBm Nominal
    ANT 2.4 Ghz @ +1.9 dBm Nominal

  • Compass-Safe Distance

    5.9" (150mm)

Stereo Features

Jump to...
  • Display

    128 x 64 Optically Bonded Monochrome LCD

  • Built-In Amplifier

    Class-AB

  • Peak Power

    200 W

  • Rated Power Output (4 Ohm)

    26 W RMS x4 @ 14.4 V Input < 10% THD

  • Fusion-Link Control

    Yes (MFD, Smartphone and Garmin Watch)

  • Multi-Zone Technology

    2 Zones

  • Bluetooth Wireless Technology

    Yes

  • ANT Wireless Technology

    Yes

  • DAB+ Ready

    Yes (Requires DAB100A Antenna Module)

  • NRX Remote Compatibility

    Yes

  • Multi-Language Interface

    Dutch/English/French/German/Italian/Spanish

  • Fits Din-Sized Cutout

    Yes

  • Software Updates

    USB

Connectivity

Jump to...
  • Auxiliary Input

    One RCA Input (AUX)

  • NMEA 2000

    1 Port

  • USB 2.0

    1 Port

  • AM/FM Radio

    1 Motorola Antenna Connector Port

  • Speaker

    2x Speaker Connections (2 Zone Amplified)

  • RCA Pre-Out (Left, Right and Subwoofer)

    2 Zones (Requires External Amplification)

  • Line Out

    2 (1x L + R Per Zone, Requires External Amplification)

  • Subwoofer Out

    1x Mono Output (Requires External Amplification)

Physical

Jump to...
  • Dimensions (H x W x D)

    2.36 x 7.40 x 4.87" (60 x 188 x 123.5mm)

  • Weight

    19.6 oz (556g)

  • UPC Code

    753759149840

About Garmin Fusion MS-RA70

With the Fusion MS-RA70N Monochrome LCD Marine Stereo, elevate your on-water audio experience to new heights. This industry-leading marine entertainment system is expertly designed to retrofit seamlessly into your vessel's existing DIN-sized stereo compartment, offering a blend of high-quality sound and robust functionality.

Crafted to withstand the rigors of the marine environment, the RA70 Series boasts an IPX7-rated water-resistant front panel, ensuring that it not only performs but also endures the challenges of moisture and splashes encountered at sea. The MS-RA70N's durability is matched by its versatility, providing a plethora of source options to suit any audiophile's preference. With built-in BLUETOOTH technology, you can wirelessly stream your favorite playlists from any compatible device, ensuring a cord-free and convenient listening experience.

For those who enjoy the clarity of digital audio broadcasting, the RA70 Series is equipped with DAB+ radio, alongside traditional AM/FM radio capabilities, allowing you to stay connected to your preferred stations. The inclusion of AUX and USB connections further expands your audio sources, offering easy plug-and-play options for a variety of media devices.

Installation flexibility is a key feature of the Fusion MS-RA70N, offering multiple mounting options to suit your boat's design. Opt for a conventional flush finish for a sleek and unobtrusive look, or integrate the stereo into a glass helm setup for a modern, flat finish that complements the aesthetics of your vessel.

The monochrome LCD display provides clear visibility of the system's status and settings, ensuring ease of use even in bright sunlight or during nighttime voyages. With the added convenience of NMEA 2000 connectivity, the RA70 Series integrates seamlessly with your onboard network, allowing for streamlined communication between marine electronics.

In summary, the Fusion MS-RA70N Monochrome LCD Marine Stereo is a testament to Fusion's commitment to quality, innovation, and the marine lifestyle. It's an essential addition for any boater looking to enhance their audio experience with a system that's as resilient as it is entertaining.

Garmin Fusion MS-RA70 Features

  • Seamlessly retrofit your existing DIN-sized cutout without needing to reconfigure dash space
  • Optically bonded monochrome LCD improves screen visibility
  • Built-in Class-AB amplifier delivers efficiency with reduced distortion
  • Multi-Zone Technology gives you control of two separate audio zones
  • Control your music from a compatible multifunction display (MFD), smart device or Garmin watch

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Enjoy crystal-clear audio with this Garmin marine stereo's powerful 200W peak output.
  • Stay connected on the water with integrated Bluetooth & ANT wireless technology.
  • Easily control your marine audio via Fusion-Link with your smartphone or Garmin watch.
  • This durable marine stereo is IPX7 rated, safeguarding against splashes and weather.
  • Seamlessly connect to NMEA 2000 networks for integrated marine system control.
  • Upgrade your boat's sound with multi-zone technology for personalized audio experiences.

What's in the box:

  • Garmin Fusion MS-RA70N Monochrome LCD Marine Stereo
  • DIN Mounting Plate
  • 4x 8-Gauge/Self-Tapping Screws
  • Power and Speaker Wiring Harness
  • Auxiliary-In/Line-Out and Subwoofer-Out Wiring Harnesses
  • 6' NMEA 2000 Drop Cable
  • Documentation
  • Garmin 1 Year Limited Warranty
