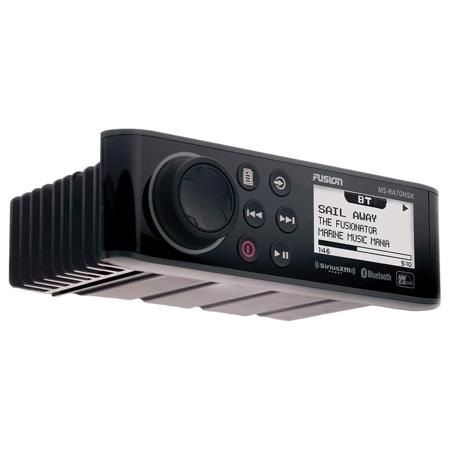

Garmin Fusion MS-RA70NSX Monochrome LCD Marine Stereo, NMEA 2000 and SiriusXM-Ready

SKU: GP0100151630 MFR: 010-01516-30
Earn VIP Reward Points

Key Features

  • Enjoy crisp audio with this marine stereo's powerful 200W peak output.
  • Stream music via Bluetooth on your boat with this Fusion marine stereo.
  • This NMEA 2000-ready stereo easily integrates with your Garmin devices.
  • SiriusXM-ready, just add a tuner to enjoy satellite radio on the water.
  • Control your marine audio via smartphone with Fusion-Link technology.
  • IPX7 water-resistant face protects your stereo from splashes and rain.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$28.99

2 Year

$51.99

3 Year

$64.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Garmin Fusion MS-RA70 Specifications

General

General

Jump to...
  • Water Rating

    IPX7 (Front Panel Only, When Properly Installed)

  • Power Input

    10.8-16 VDC

  • Operating Temperature Range

    32 Degree to 122 Degree F (0 Degree to 50 Degree C)

  • Current (Max)

    15 A

  • NMEA 2000 Len

    1 (50 mA)

  • Bluetooth Wireless Range

    Up to 30' (10m)

  • ANT Wireless Range

    Up to 10' (3m)

  • Wireless Frequencies/Protocols

    Bluetooth 2.4 Ghz @ +1.9 dBm Nominal
    ANT 2.4 Ghz @ +1.9 dBm Nominal

  • Compass-Safe Distance

    5.9" (150mm)

Stereo Features

Jump to...
  • Display

    128 x 64 Optically Bonded Monochrome LCD

  • Built-In Amplifier

    Class-AB

  • Peak Power

    200 W

  • Rated Power Output (4 Ohm)

    26 W RMS x4 @ 14.4 V Input < 10% THD

  • Fusion-Link Control

    Yes (MFD, Smartphone and Garmin Watch)

  • Multi-Zone Technology

    2 Zones

  • Bluetooth Wireless Technology

    Yes

  • ANT Wireless Technology

    Yes

  • SiriusXM-Ready

    Yes (Requires SiriusXM Connect Vehicle Tuner)

  • NRX Remote Compatibility

    Yes

  • Multi-Language Interface

    Dutch/English/French/German/Italian/Spanish

  • Fits Din-Sized Cutout

    Yes

  • Software Updates

    USB

Sources

Jump to...
  • Sources

    AM/FM/Bluetooth/USB Audio/iPhone/iPod/AUX X1/AOA

Connectivity

Jump to...
  • Auxiliary Input

    One RCA Input (AUX)

  • NMEA 2000

    1 Port

  • USB 2.0

    1 Port

  • SiriusXM Satellite Radio

    1 Port (Requires SiriusXM Connect Vehicle Tuner, Does Not Support Traffic and Weather)

  • AM/FM Radio

    1 Motorola Antenna Connector Port

  • Speaker

    2x Speaker Connections (2 Zone Amplified)

  • RCA Pre-Out (Left, Right and Subwoofer)

    2 Zones (Requires External Amplification)

  • Line Out

    2 (1x L + R Per Zone, Requires External Amplification)

  • Subwoofer Out

    1x Mono Output (Requires External Amplification)

Physical

Jump to...
  • Dimensions (H x W x D)

    2.36 x 7.40 x 4.87" (60 x 188 x 123.5mm)

  • Weight

    19.6 oz (556g)

  • UPC Code

    753759216269

About Garmin Fusion MS-RA70

Over the horizon, as you set sail on your nautical adventures, the Fusion MS-RA70NSX Monochrome LCD Marine Stereo stands as the industry benchmark for marine entertainment. This high-tech, sleek, and stylish marine stereo is expertly designed to seamlessly retrofit into your existing DIN-sized stereo compartment, offering an advanced and innovative upgrade to your on-board audio experience.

Crafted with the marine environment in mind, the RA70 Series boasts an IPX7-rated water-resistant front panel, ensuring durability and consistent performance amidst the splashes and sprays of the open waters. Its monochrome LCD display is a clear choice for boaters, offering superior visibility in the bright sunlight often encountered at sea.

Installation flexibility is at the forefront with the RA70 Series, providing multiple mounting options to suit your vessel's aesthetics and design. Opt for a conventional flush finish or a modern, integrated look within a glass helm for a flat, seamless appearance that complements your boat's interior.

The Fusion MS-RA70NSX offers a freedom of choice that is unparalleled, with a wide array of source options to cater to every audiophile's preference. Connect effortlessly via BLUETOOTH technology for wireless streaming, or utilize the advanced SiriusXM features to access a vast selection of satellite radio channels. Traditional AM/FM radio, AUX, and USB connections are also available, ensuring that your favorite tunes and audio content are always at your fingertips.

For those who demand the best in marine audio, the RA70 Series is SiriusXM-Ready, allowing you to enjoy a selection of advanced features and premium content provided by SiriusXM's satellite radio service. With compatibility with both NMEA 2000 and SiriusXM, this marine stereo is the ultimate choice for boaters seeking a high-quality, versatile entertainment system that keeps them connected to music, news, and weather while navigating the open seas.

Elevate your marine audio experience with the Fusion MS-RA70NSX Monochrome LCD Marine Stereo, where cutting-edge technology meets robust design, ensuring that every voyage is accompanied by the perfect soundtrack.

Garmin Fusion MS-RA70 Features

  • Seamlessly retrofit your existing DIN-sized cutout without needing to reconfigure dash space
  • Optically bonded monochrome LCD improves screen visibility
  • Built-in Class-AB amplifier delivers efficiency with reduced distortion
  • Multi-Zone Technology gives you control of two separate audio zones
  • Control your music from a compatible multifunction display (MFD), smart device or Garmin watch

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Enjoy crisp audio with this marine stereo's powerful 200W peak output.
  • Stream music via Bluetooth on your boat with this Fusion marine stereo.
  • This NMEA 2000-ready stereo easily integrates with your Garmin devices.
  • SiriusXM-ready, just add a tuner to enjoy satellite radio on the water.
  • Control your marine audio via smartphone with Fusion-Link technology.
  • IPX7 water-resistant face protects your stereo from splashes and rain.

What's in the box:

  • Garmin Fusion MS-RA70NSX Monochrome LCD Marine Stereo
  • DIN Mounting Plate
  • 4x 8-Gauge/Self-Tapping Screws
  • Power and Speaker Wiring Harness
  • Auxiliary-In/Line-Out and Subwoofer-Out Wiring Harnesses
  • 6' NMEA 2000 Drop Cable
  • Documentation
  • Garmin 1 Year Limited Warranty
