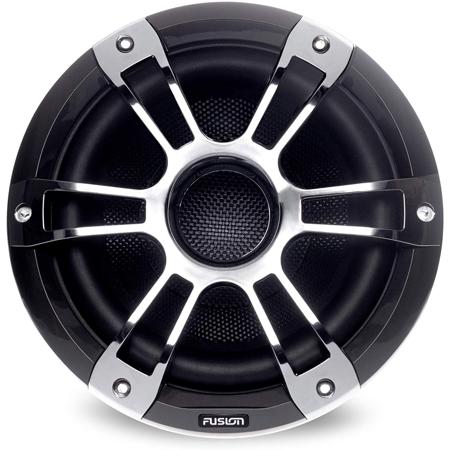

Garmin Fusion Signature Series 3 10" 600W Sports Chrome Marine Subwoofer with CRGBW

SKU: GP0100243511

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Garmin Fusion Signature Series 3 Specifications

General

General

Jump to...
  • Water and dust rating

    IP65

  • Speaker size

    10" (25.4cm)

  • Peak power (Watts)

    600W

  • RMS power (Watts)

    300W

  • Sensitivity (1 W / 1m)

    86 dB

  • Magnetic structure

    68 oz (1927.7g)

  • Frequency response

    30Hz - 2kHz

  • Nominal impedance

    4 ohms

  • Recommended

    50-600 W (amplifier power (RMS))

  • LED lighting

    yes - CRGBW (sports-style only)

  • LED Supply Voltage

    10.8-16 VDC (sports-style only)

  • LED load current @ 14.4 VDC

    300 mA (sports-style only)

  • Operating temperature range

    32 Degree to 122 Degree F (0 Degree to 50 Degree C)

  • Voice coil diameter

    2" (5cm)

  • Cone material

    Polypropylene cone with rubber surround

  • Compass-safe distance

    205" (520cm)

Mounting Dimensions

Jump to...
  • Mounting diameter clearance

    8.78" (223mm)

  • Mounting depth clearance

    5.24" (133mm)

Optimum Enclosure Recommendations

Jump to...
  • Sealed enclosure volume

    0.6 cubic ft (17.2 L) (fully filled with absorption material)

  • Ported

    1.6 cubic ft (45 L) (vented) enclosure volume (lined with absorption material))

  • Port diameter

    4" (104mm)

  • Port length

    10.43" (265mm)

Physical

Jump to...
  • Dimensions

    10.83 x 6.77" (275 x 172mm)

  • UPC Code

    753759254742

About Garmin Fusion Signature Series 3

Experience The Power of Music
Exceptional Mechanical Design And Brilliant Acoustic Engineering Have Created The New Revamped Signature Series 3 Marine Subwoofers, Which Deliver Premium Low Frequencies For A Truly Memorable Audio Entertainment Experience.


• Experience industry-first marine subwoofers with CRGBW LED lighting
• The new Signature Series 3 subwoofers now pack an enhanced 600 watts of peak power
• Enjoy high-resolution bass reproduction from the quality polypropylene cone
• With an increase in real power, the voice coil provides a sound exclusive to the Signature Series 3
• The subwoofers are available in 10" designs with both classic and sports style grilles

Designed And Engineered to True-Marine Standards
Built On The True-Marine Design Philosophy From Fusion, The Signature Series 3 Subwoofers Have An Ip65 Rating For Protection Against Dust And Water Ingress And Have Been Tested to A High Level of Protection Against Salt Fog, Temperature, Vibration And Uv.

Designed to Comply With iso12216
Tested to International Standards For Pressure And Watertightness, The Signature Series 3 Subwoofers Are Designed And Built to The Highest Industry Standards For Quality And Robustness.

The Finest Materials And Acoustic Engineering
The Signature Series 3 Subwoofers Incorporate Premium Materials And Marine-Specific Design Elements. This Communicates Not Only Their Premium Aesthetics But Also Their Ability to Reproduce High-Quality Audio While Out On The Water.

Take Your Boating Experience to Another Level With Premium Low Frequencies

Polypropylene Cone Technology
Defined, High-Resolution Low-Frequency Acoustics Are A Result of The Excellent Self-Damping And Bass Reproduction From The Quality Polypropylene Cone.

Large-Diameter Voice Coil
Delivering An Increase In Real Power And Efficiency, The Large-Diameter Voice Coil Provides A Signature Sound With Wave-Rippling Bass Exclusive to The Signature Series 3 Subwoofers.

High-Grade Basket Construction
The Basket is Constructed Using High-Grade Engineered Plastics to Deliver Unprecedented Durability When Exposed to The Marine Environment.

Experience An Unprecedented Spectrum of Colors to Match Your Audio.

Remium Crgbw Led Lighting
Industry-First Marine Subwoofers With Crgbw (Cool White, Red, Green, Blue, Warm White) Illuminate An Unprecedented Spectrum of Colors - From Premium Pastels to Vibrant Hues - to Enhance Your Audio Entertainment Experience.

Controlling The CRGBW Lighting
Control The Color (Static Or Dynamic), Brightness, Light Mode And Speed By Using The Optional Ms-Crgbwrc Wireless Remote Control (Sold Separately) Or From A Garmin Multifunction Display Via Onehelm Integrated Digital Switching (Lighting Partner Controller Required).

Premium Aesthetics to Match Modern Boat Design Trends.

Sports Chrome Subwoofer
The Signature Series 3 Sports Chrome Subwoofer is Available In A 10" Size And Features Industry-First Crgbw Led Lighting Options.

Garmin Fusion Signature Series 3 Features

  • Designed And Engineered To True-Marine Standards
  • Designed To Comply With Iso12216
  • The Finest Materials And Acoustic Engineering
  • Polypropylene Cone Technology
  • Large-Diameter Voice Coil
  • High-Grade Basket Construction
  • Premium Crgbw Led Lighting
  • Controlling The Crgbw Lighting
  • Sports Chrome Subwoofer

Key Features

  • Experience industry-first marine subwoofers with CRGBW LED lighting1
  • The new Signature Series 3 subwoofers now pack an enhanced 600 watts of peak power
  • Enjoy high-resolution bass reproduction from the quality polypropylene cone
  • With an increase in real power, the voice coil provides a sound exclusive to the Signature 3
  • The subwoofers are available in 10" designs with both classic and sports style grilles

What's in the box:

  • Fusion Signature Series 3 10" 600W Sports Chrome Marine Subwoofer with CRGBW
  • Documentation
  • Garmin 3 Year Limited Warranty
