Garmin LiveScope Plus Specifications

General

General

Jump to...
  • Display resolution

    800 x 480 pixels

  • Display type

    WVGA display

  • Water rating

    IPX7

  • Power consumption

    6.2 W

  • Antenna

    Internal or external over NMEA 2000

  • Transmit power

    500 W

  • Receiver

    5 Hz

  • Garmin Marine Network Ports

    1 Panoptix port

  • Display size

    7.8 x 4.8" (19.9 x 11.3cm); 9" (22.9cm) diagonal

Outdoor Recreation

Jump to...
  • Tide tables

    Yes

Chartplotters Features

Jump to...
  • Garmin sonar compatible

    Yes

Sonar Features

Jump to...
  • Frequencies supported

    530 - 1,100 kHz

  • Maximum depth

    Down and Forward: 200' (61.0 m)

  • Bottom Lock

    Yes (Shows return from the bottom up)

  • Water temperature log and graph

    Yes

  • Sonar recording

    Yes

  • Sonar history rewind

    Yes

Connections

Jump to...
  • NMEA 2000 compatible

    Yes

  • Transducer pin numbers

    21

  • NMEA 0183 inport ports

    1

  • NMEA 0183 output ports

    1

  • Wireless connectivity

    Yes

Additional

Jump to...
  • Bag size

    Extra large (XL)

  • Included transducer

    Panoptix LiveScope Plus System

Battery

Jump to...
  • Type

    16.5 Ahr Lithium-ion

  • Runtime (0 Degree C 100% backlight)

    11.4 hrs

  • Battery Info

    required, included

  • Battery Material

    lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Weight

    3.4 lbs

Physical

Jump to...
  • Dimensions

    13.8 x 12.2 x 13" (35 x 31 x 33cm)

  • Weight

    28 lbs (12.7kg)

  • UPC Code

    753759304362

About Garmin LiveScope Plus

The Best of The Best Just Broke New Ice
Get improved resolution, reduced noise, clearer images and better target separation with the LiveScope Plus ice fishing bundle LI. It includes an ECHOMAP UHD 95sv combo, LiveScope Plus sonar system and lightweight lithium battery.

Image Definition Like You've Never Seen

Echomap UHD Combo
Revolutionary real-time sonar pairs with a large ECHOMAP UHD 95sv combo touchscreen display, allowing you to see up to 200' in any direction.

Two Modes, One Transducer
Adapt your fishing technique with a LiveScope Plus system, which offers two live-scanning sonar modes - Down and Forward - with improved resolution, reduced noise, clearer images and better target separation.

LiveScope Forward
LiveScope Forward sonar shows up to 200' all around you and below the ice, so you can locate schools of fish and know where to drill the next hole.

LiveScope Down
LiveScope Down sonar shows live sonar images of what is below the ice, so you can watch fish respond to your jig.

LakeVu G3 Maps
The unit comes preloaded with LakeVu g3 maps with integrated Garmin and Navionics data, covering more than 18,000 lakes in the U.S. It also supports Garmin Navionics+ cartography (sold separately).

Built-In Flasher
The built-in flasher (requires an accessory purchase) provides accurate jig and fish detection as they swim into the sonar beam.

Custom Combos
You can create custom pages that combine LiveScope Plus sonar, flasher and map on your display.

Lithium Battery
Fish even longer with a lightweight lithium battery that won't weigh you down on the ice.

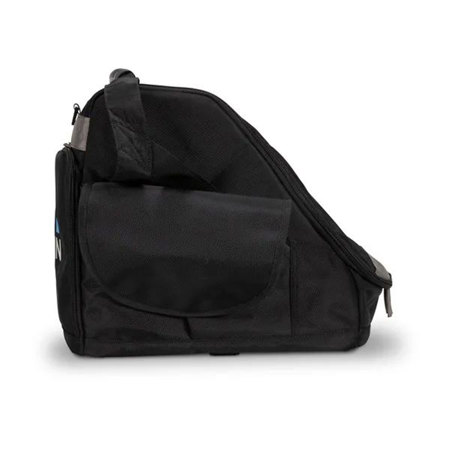

Carrying Case
Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.

Garmin LiveScope Plus Features

  • See images clearly with improved sonar clarity, transducer sensitivity and target separation
  • Scan surroundings with sharper images, reduced noise and fewer sonar artifacts
  • Scout for schools of fish with LiveScope Forward mode so you know where to drill your next hole
  • Keep an eye on your jig and see how fish react to it with LiveScope Down mode
  • Only the fish will weigh you down. This bundle comes with a lightweight lithium battery
  • Everything goes where you go. All accessories fit in the portable carrying case

Key Features

  • See images clearly with improved sonar clarity, transducer sensitivity and target separation
  • Scan surroundings with sharper images, reduced noise and fewer sonar artifacts
  • Scout for schools of fish with LiveScope Forward mode so you know where to drill your next hole
  • Keep an eye on your jig and see how fish react to it with LiveScope Down mode
  • Only the fish will weigh you down. This bundle comes with a lightweight lithium battery
  • Everything goes where you go. All accessories fit in the portable carrying case

What's in the box:

  • LiveScope Plus System
  • ECHOMAP UHD 9" 95sv Chartplotters
  • Zero Degree Mount
  • LiveScope Ice Fishing Mount
  • Tilt/Swivel Mount
  • Power Cable
  • Portable Fishing Kit (Bag with Handle/Lithium-Ion Battery and Charger)
  • Documentation
  • Garmin 1 Year Limited Warranty
