Garmin ECHOMAP UHD2 Specifications

Maps & Memory

Maps & Memory

Jump to...
  • Preloaded Maps

    U.S. LakeVu g3 (Inland Maps)

  • Accepts Data Cards

    1 microSD card; 32 GB maximum size

  • Waypoints

    5000

  • Track Points

    50000

  • Tracks

    50 saved tracks

  • Navigation Routes

    100

Sensors

Jump to...
  • Has Built-In Receiver

    Yes

  • Receiver

    5 Hz

  • GPS

    Yes

  • Supports WAAS

    Yes

Chartplotter Features

Jump to...
  • Activecaptain Compatible

    Yes

  • Sailing Features

    Yes

Sonar Features

Jump to...
  • Displays Sonar

    Yes

  • Power Output

    500 W

  • Traditional Sonar (Dual Frequency/Beam)

    Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)

  • ClearVu

    Built-in 260/455/800/1000/1200 kHz

Connections

Jump to...
  • 4-Pin Transducer Ports

    1

  • Wi-Fi Network (Local Connection)

    Yes

Electrical Features

Jump to...
  • Power Input

    9 to 18 Vdc

  • Typical Current Draw At 12 VDC

    1.0 A

  • Maximum Current Draw At 12 VDC

    1.5 A

  • Maximum Power Usage At 10 VDC

    18W

General

Jump to...
  • Input

    Keyed

  • Display Size

    6.1 x 3.4" (15.5 x 8.7cm)

  • Display Resolution

    800 x 480 pixels

  • Display Type

    WVGA, TN

  • Waterproof

    IPX7

  • Mounting Options

    Bail or flush

  • Dimensions

    9.1 x 5.6 x 2.6" (23.2 x 14.3 x 6.7cm)

  • Weight

    24 oz (680.38g)

  • UPC Code

    753759284664

About Garmin ECHOMAP UHD2

Why Talk to a Local When You Can Fish Like One?
They say locals know best. But anyone who says that hasn't fished with the ECHOMAP UHD2 7" chartplotters with clear, crisp sonar and mapping.

Sonar Support
With crisp, clear traditional sonar and brilliant ClearVu sonar, the fish will have nowhere to hide.

Vivid Color Palettes
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Bundle Your Transducer
Your ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVu scanning sonars.

Preloaded Charts
Know the waters you're in as if you grew up fishing them by using built-in LakeVu g3 inland maps with support for Garmin Navionics+ and Garmin Navionics Vision+ marine cartography.

Wireless Networking
If you have another compatible ECHOMAP UHD2 chartplotter on your boat, the 7" models can wirelessly share information - such as sonar, waypoints and routes - with them.

Activecaptain App
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin Quickdraw Community data and more.

Garmin ECHOMAP UHD2 Features

  • The bright 7" keyed display is made for convenience
  • Get double the views with Garmin CHIRP traditional and ClearVu scanning sonars
  • What's under the water looks even better with high-contrast vivid color palettes
  • Wi-Fi connectivity between compatible chartplotters makes it easy to share info
  • Enjoy No. 1 in mapping with our LakeVu g3 maps with Navionics data

Key Features

  • The bright 7" keyed display is made for convenience
  • Get double the views with Garmin CHIRP traditional and ClearVu scanning sonars
  • What's under the water looks even better with high-contrast vivid color palettes
  • Wi-Fi connectivity between compatible chartplotters makes it easy to share info
  • Enjoy No. 1 in mapping with our LakeVu g3 maps with Navionics data

What's in the box:

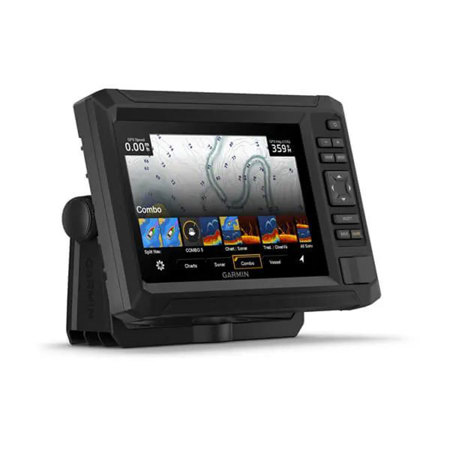

  • Garmin ECHOMAP UHD2 7" 73cv Chartplotters with GT20-TM Transducer (U.S. LakeVu g3)
  • Power/Data Cable
  • Tilt Mount
  • Flush Mount
  • Hardware
  • Documentation
  • Garmin 1 Year Limited Warranty
