Questions & Answers

FAQ

What are the key features of the Garmin LiveScope Plus LVS34 Transducer?

The LiveScope Plus LVS34 Transducer features advanced LiveScope Plus technology, enhanced target separation, easy upgrade compatibility with existing LiveScope System, seven vivid color palettes, multi-mode support, and a built-in image stabilization system.

What modes are supported by the LiveScope Plus LVS34 Transducer?

The LiveScope Plus LVS34 Transducer supports Forward, Down, and Perspective modes, each designed to provide a unique perspective of the underwater environment.

How does the image stabilization feature of the LiveScope Plus LVS34 Transducer work?

The built-in image stabilization system of the LiveScope Plus LVS34 Transducer maintains a steady sonar image on your compatible chartplotter, even in rough water conditions, ensuring clear and stable underwater vision at all times.

What is the benefit of the vivid color palettes in the LiveScope Plus LVS34 Transducer?

The seven vivid color palettes in the LiveScope Plus LVS34 Transducer help to visualize fish and underwater structures with unparalleled clarity and contrast. The color options include Aqua, Caribbean, and Lava, among others.

Can I upgrade my existing LiveScope System with the LiveScope Plus LVS34 Transducer?

Yes, you can easily upgrade your existing LiveScope System's black box (GLS 10 sonar module) with the LiveScope Plus LVS34 Transducer, unlocking a new level of detail in your marine exploration.

Shopper : Why Did You Choose This?Brad B : Need a replacement or current transducerDwayne D : Up gradeMike M : ClarificationBrian W : Fishing

Reviews about this item

Review Summary

Garmin LiveScope Plus LVS34 Specifications

Sonar Features

Sonar Features

Jump to...
  • Frequency

    530 - 1,100 kHz

  • Maxdepth

    Down and Forward: 200' (61m)

Connections

Jump to...
  • Connections

    Garmin Marine Network Ports: 1 (small connector)

Electrical Features

Jump to...
  • Power Input

    10-32 V

  • Power Usage

    21 W typical, 58 W max

  • Transmit Power

    500 W

  • Fuse

    7.5 A

  • Compass-Safe Distance

    4" (10.16cm)

General

Jump to...
  • Minimum Depth

    36' (91.44cm)

  • Sonar Type

    Live

  • Beamwidth

    20 Degree x 135 Degree

  • Transducer Cable Length

    20' (6m)

  • Transducer Number Of Pins

    21

Physical

Jump to...
  • Waterproof

    IPX7

  • Temperature Range

    Operating: 32 to 104 Degree F (0 to 40 Degree C)

  • Dimensions

    6.4 x 3.1 x 1.9" (16.2 x 7.8 x 4.8cm)

  • Weight

    2.25 lbs (1.02kg)

  • UPC Code

    753759298463

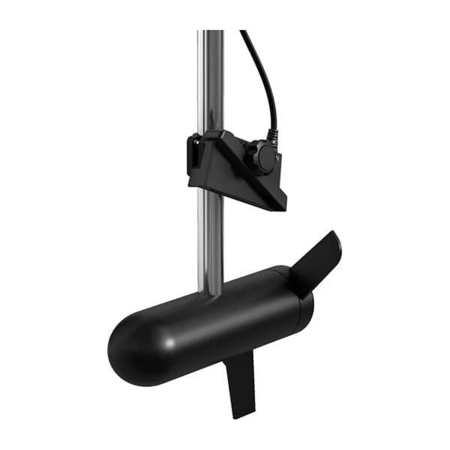

About Garmin LiveScope Plus LVS34

Are you ready to experience unparalleled clarity in marine navigation and fish finding The Garmin LiveScope Plus LVS34 Transducer is the epitome of high-tech marine electronics, designed to elevate your time on the water with its advanced sonar capabilities. This state-of-the-art transducer offers a significant upgrade in resolution, delivering crisp, clear images that make identifying fish and underwater structures easier than ever.

With the LiveScope Plus System, you can expect sophisticated performance, including enhanced screen clarity, heightened transducer sensitivity, and superior target separation. The innovative technology ensures that you can scan your surroundings with sharper images, significantly reduced noise, and minimal sonar artifacts, providing a pristine underwater view.

This cutting-edge transducer is not just about improved visuals; it's also about seamless integration. Effortlessly upgrade your existing LiveScope System's black box (GLS 10 sonar module) with this new transducer, and unlock a new level of detail in your marine exploration.

The LiveScope Plus LVS34 Transducer is designed for maximum contrast and clarity, featuring vivid color palettes that bring the underwater world to life. Choose from seven dynamic color options, such as Aqua, Caribbean, and Lava, to visualize fish and structures with unparalleled clarity.

Don't miss a moment of the action with the supported Forward, Down, and Perspective modes, complete with the necessary mount. Each mode is tailored to fit your environment, whether you're scouting ahead of your boat in Forward Mode, exploring the depths directly beneath you in Down Mode, or viewing the underwater landscape from your perspective above the water in Perspective Mode.

Real-time sonar ensures that the images you see are as accurate as possible, providing you with the confidence to make informed decisions while navigating or locating fish. Moreover, the built-in stabilization system maintains a steady sonar image on your compatible chartplotter, even when conditions get rough, ensuring clear vision at all times.

Select the LiveScope mode that best suits your marine adventure and witness image definition like never before. With the Garmin LiveScope Plus LVS34 Transducer, you're not just observing the underwater world; you're immersing yourself in a high-definition, real-time experience that sets a new standard in marine technology.

Garmin LiveScope Plus LVS34 Features

  • Live sonar images with improved screen clarity, increased transducer sensitivity and better target separation
  • Sharper images with reduced noise and fewer sonar artifacts that impede a clear picture of fish and structure
  • New transducer can be used with existing LiveScope System black box (GLS 10) for easy upgrade
  • Vivid color palettes for enhanced detail and clarity
  • Supports Forward, Down and Perspective mode with all necessary mounts included in the box

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Advanced LiveScope Plus LVS34 technology for high-resolution, real-time sonar imaging
  • Enhanced target separation and screen clarity for superior underwater visibility
  • Easy upgrade compatibility with existing LiveScope System (GLS 10 sonar module)
  • Seven vivid color palettes for optimal contrast and clear structure identification
  • Multi-mode support including Forward, Down, and Perspective for versatile marine exploration
  • Built-in image stabilization for steady sonar imagery, even in rough water conditions

What's in the box:

  • Garmin LiveScope Plus LVS34 Transducer
  • Perspective Mount
  • Trolling Motor Barrel Mount
  • Shaft Mount
  • Documentation
  • Garmin 1 Year Limited Warranty
