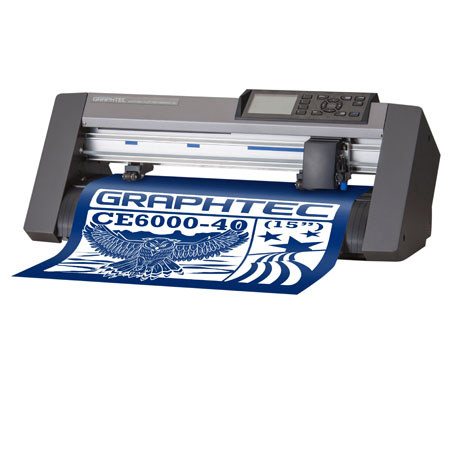

Graphtec CE6000-40 15" Wide E-Class Vinyl Cutter, 24" per second Cutting Speed, 10 mils Media Thickness, 14.76"x164' Max Cutting Area

SKU: GRCE600040

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Graphtec CE6000-40 Specifications

  • CPU

    32-bit CPU

  • Configuration

    Grit-rolling friction feed

  • Drive

    Digital Servo Drive

  • Maximum Cutting Area

    375mmx50m [14.8"x164']

  • Range of Guaranteed Precision

    356mmx2m

  • Compatible Media Widths

    Minimum: 50mm [2"]
    Maximum: 484mm [19"]

  • Number of Push Rollers

    2 Rollers

  • Maximum Media Thickness

    0.25mm [10mils]

  • Maximum Cutting Speed

    60cm/s (at 45deg. direction)

  • Maximum Acceleration

    21.2m/s2 (at 45deg. direction)

  • Maximum Guaranteed Cutting Force

    2.94N (300 gf) in 31 steps

  • Instantaneous Max Force

    Un Guaranteed: 3.2N (330gf)

  • Minimum character matrix

    5mm [0.2"] High

  • Mechanical Resolution

    0.005mm

  • Blade Type

    Supersteel

  • Pen Type

    Oil Based Ballpoint
    Water Based Fiber Tip Pen

  • Media Types

    Self Adhesive Vinyl Film, Fluorescent Film, Commercial Grade Reflective Film, Polyester Film

  • Perforation Cutting

    Yes

  • Interfaces

    RS-232C serial, USB2 (Full Speed)

  • Data buffer

    2MB

  • Command Sets

    GP-GL / HP-GL emulation (control panel selectable)

  • Registration Mark Sensing

    Optical sensor ARMS5.0

  • Power Requirements

    100 to 120 VAC, 220 to 240 V AC (Auto Switch), 50/60 Hz

  • Software Includes

    Windows Driver, Graphtec Studio, Cutting Master 3, Plot Controller

  • Compatible OS

    Windows 8/8 Pro/7 (Excluding Starter & Home Basic)/Vista/XP
    Mac OS 10.5.8, 10.8

  • Operating Environment

    10 to 35deg.C [50 to 95deg.F], 35 to 75% RH (non-condensing)

  • Dimensions (WxDxH)

    672x338x266mm (26.45x13.30x10.47")

  • Weight

    10.50 kg (23.14 lbs)

About Graphtec CE6000-40

The Graphtec CE6000-40 15" Wide E-Class Vinyl Cutter sets the standards for high performance cutting plotters. It features professional level functions including registration mark sensing, SmartFeed auto material pre-feed function for enhanced media tracking and has more punch with its 300gf cutting force.

The Graphtec CE6000-40 15" Wide E-Class Vinyl Cutter features faster cut time, precision cutting and a fast and accurate digital servo motor. Graphtec is known for quality and long-lasting machines and their new CE6000 cutter don't disappoint. This cutter also comes equipped with the new Graphtec Studio Software, which makes designing and cutting an easy task. Graphtec Studio is an easy to use design software that has been developed exclusively for Graphtec to create original designs to be used for a variety of graphics applications such as signs, banners, print and cut decals, apparel decoration and other two-dimensional projects. This cutter features a plug-in for Adobe Illustrator and CorelDraw.

Graphtec CE6000-40 Features

  • Auto registration mark sensor (perfect for print and cuts)
  • Fast and accurate digital servo motor
  • 4 point, dual-axis skew correction
  • Tangential control enhanced precision
  • Plug-ins available for Adobe Illustrator and CorelDraw

Key Features

  • Auto registration mark sensor (perfect for print and cuts)
  • Fast and accurate digital servo motor
  • 4 point, dual-axis skew correction
  • Tangential control enhanced precision
  • Plug-ins available for Adobe Illustrator and CorelDraw

What's in the box:

  • Graphtec CE6000-40 15" Wide E-Class Vinyl Cutter
  • Power Cord
  • Cutting Blade Holder
  • Cutting Blade
  • Separate Cutter
  • Fiber Tip Pen Holder
  • Water Based Fiber Tip Pen
  • Carrier Sheet of Media
  • Tray for Roll Media Stock
  • USB Cable
  • DVD ROM
  • Graphtec Warranty
