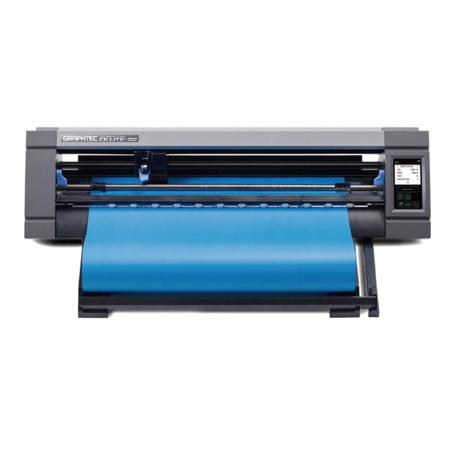

Graphtec CE LITE-50 20" Wide E-Class Desktop Cutter, 19.68"/sec Cutting Speed, 19.6x118.11" Max Cutting Area

Graphtec Ce Lite-50 is the perfect machine for expanding into new markets or turning a hobby into a business. Features such as its 4.3" touch screen and numbered blade holder make operation intuitive for new and experienced users alike. Included, Cutting Master 4 Plugin for Illustrator or Corel Draw and a Standalone drawing program Graphtec Pro Studio Software provide all of the design tools needed to create a large variety of stunning Products.

Unique superior quality, high reliability and affordable price of Graphtec CE Lite-50 is suitable cutting plotter for small-to-medium production runs for heat transfer vinyl, decals, singage, automotive sign, and more!

The 20" CE Lite-50, cleanly cut vinyl for apparel, decals, and more with 210g of cutting force. The CE Lite-50 is compatible with both sheets and rolls of media using the included roll holder attachment. Renowned Graphtec ARMS 7.0 (Advanced Registration Mark Sensing System) technology provides efficient functions and high precision contour cutting (Print & cut) results. USB offline barcoding automatically loads file, sets tool conditions, and processes the job at the push of a button - without requiring a PC connection. Its sensor is able to detect registration marks on various materials including glitter and metallic, expanding the range of compatible media for print & cut applications, smaller side margin and the ability to cut printed objects outside of the registration mark area yields up to 30% additional output compared to alternative brands.

Easy to Print & Cut
The edge of the media aligns with the position of the contour cut line to the printed image without registration marks (fixed size). The max. cutting area can be utilized regardless of color or shading of the media because registration marks do not need to be printed.

Superior Quality, High Reliabilit, Entry-Level Cutting Plotter
Small-to-medium production runs for heat transfer vinyl, decals, signage, and more!

Desktop Roll-feed Cutter Graphtec CE Lite-50 offers high cutting quality, productivity, and cost-effectiveness. Enable to create original goods easily with 4.3 inch touch panel and enhanced software

4.3" Touch Screen Operation
Intuitive and easy to use operation by mounting 4.3 inch touch panel.

Support 10 languages: english, french, german, spanish, italian, portuguese, russian, chinese, korean, japanese

USB Offline Operation
Saved cut-data on USB memory, USB offline barcoding automatically loads file, sets tool conditions, and processes the job at the push of a button - without requiring a PC connection.

ARMS 7.0 Detects Registration Marks
ARMS 7.0 technology ensures efficient, high precision print and cut jobs. CE Lite-50 detects registration marks on the media to accurately align the position of the cutting line to the printed image on various materials including glitter and metallic.

Support Roll Media up to 9' 10"
Continuously cut roll media designs up to 9 Ft, 10 In (3 m) (Accuracy guarantee 1 m. depends on the cutting condition and media type.) long using the included roll media stocker.

Mountable Roll Media up to 20" width
Maximum mountable media width of 20 inches (508 mm) efficient and convenient for you production.

Aligns the contour cut line position
CE LITE-50 finds the edge of the media and aligns the position of the contour cut line to the printed image without registration marks. (Must use a standard size) The maximum cutting area can be utilized regardless of color or shading of media because registration marks do not need to be printed.

Start Cutting Immediately with Enhanced Software

Cutting Master 4
Adobe Illustrator and CoreIDRAW plug-in software

Cutting Master 4 is a plug-in software for Adobe Illustrator and CorelDRAW Graphics Suite. Sendcutting data to the plotter, view cut preview, add registration marks, edit tool conditions / job settings and more. This easy to use plug-in enables you to get the best performance from your plotte.

Compatible OS:
• Windows 10/8.1/8/ 7 | Mac OS X 10.7 - macOS 10.12 (Sierra)
• Supported Software: Adobe Illustrator CC2017 / CC2015.3 / CC2015 / CC2014 / CC / CS6 / CS5 / CS4
CorelDRAW Graphics Suite 2017 / X8 / X7 / X6 / X5 / X4

Graphtec Pro Studio / Graphtec Studio
Graphic Design Software

Easy-to-use application software for creating original designs. Includes enhanced functions such as auto-shapes, shading, and editing functions. It can also configure the cutting condition and other settings on the plotter. EPS / Ai / CMX / PDF File compatibility allows users to import pre-existing design.

Compatible OS:
• Graphtec Pro Studio for Windows 10/8.1/8/7
• Graphtec Studio for Mac OS X 10.6 - macOS 10.12 (Sierra)
