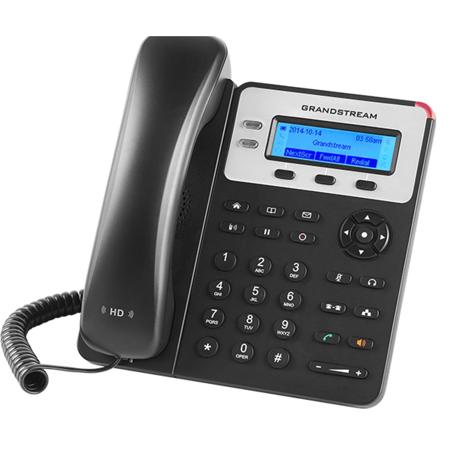

Grandstream Networks GXP1620 Wall Mountable Small Business 2-Line HD IP Phone

SKU: GSGXP1620

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Grandstream Networks GXP1620 Specifications

  • Protocols/Standards

    SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDPMED, LDAP, TR-069, 802.1x, TLS, SRTP

  • Network Interfaces

    Dual switched auto-sensing 10/100 Mbps Ethernet ports

  • Graphic Display

    132 x 48 backlit graphical LCD display

  • Feature Keys

    2 line keys with dual-color LED and 2 SIP accounts, 3 XML programmable context sensitive soft keys, 5 (navigation, menu) keys. 13 dedicated function keys for MUTE, HEADSET, TRANSFER, CONFERENCE, SEND and REDIAL, SPEAKERPHONE, VOLUME, PHONEBOOK, MESSAGE, HOLD, PAGE/INTERCOM, RECORD, HOME

  • Voice Codecs

    Support for G.711Mu/a, G.722 (wide-band), G.723, G.726-32, G.729 A/B, iLBC, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC

  • Telephony Functions

    Hold, transfer, forward (unconditional/no-answer/busy), 3-way conferencing, call park/pickup, shared-call appearance (SCA) / bridged-line-appearance (BLA), Downloadable phone book (XML, LDAP, up to 500 items), call waiting, call history (up to 200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones, server redundancy & fail-over

  • Headset Jack

    RJ9 headset jack (allowing EHS with Plantronics headsets)

  • HD Audio

    Yes, HD handset and speakerphone with support for wideband audio

  • Base Stand

    Yes, 2 angled positions available, wall mountable

  • Wall Mountable

    Yes

  • QoS

    Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

  • Security

    User and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control

  • Multi-language

    English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and more

  • Upgrade/Provisioning

    Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file

  • Power and Green Energy Efficiency

    Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA PoE: ieee802.3af Class 2, 3.84W-6.49W (GXP1625 only)

  • Compliance

    FCC: Part 15 (CFR 47) Class B
    CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1
    RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 60950.1

  • Temperature

    Operation: 0 to 40 deg. C / 32 to 104 deg. F
    Storage: -10 to 60 deg. C / 14 to 140 deg. F

  • Humidity

    10% to 90% Non-condensing

  • Dimensions (L x W x H)

    209 x 184.5 x 76.2mm / 8.23 x 7.26 x 3.00" (with handset)

  • Weight

    0.73kg / 1.61lbs

About Grandstream Networks GXP1620

A reliable IP phone for small business users, the GXP1620 delivers a suite of powerful VoIP features in an easy-to-use fashion with a modern design. The GXP1620 offers support for up to 2 lines and features full HD audio on both the speaker and handset to allow users to communicate with the utmost clarity. Additional features include 3-way conferencing to maximize productivity, 3 XML programmable soft keys for customization and EHS support for Plantronics headsets. These features allow the GXP1620 to be a high-quality and easy-to-use small business IP phone.

As all Grandstream IP phones do, the GXP1620 features state-of-the-art security encryption technology (SRTP and TLS). The GXP1620 supports a variety of automated provisioning options, including zero-configuration with Grandstream's UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.

Grandstream Networks GXP1620 Features

  • 2 SIP accounts, 2 line keys, 3-way conferencing, 3 XML programmable context-sensitive soft keys
  • Dual-switched 10/100 mbps ports, integrated PoE on GXP1625
  • HD audio on speakerphone and handset
  • Up to 500 contacts, call history up to 200 records
  • TLS and SRTP security encryption technology to protect calls and accounts
  • 3-way audio conferencing for easy conference calls
  • The GXP1625 includes built-in PoE to power the device and give it a network connection
  • Use with Grandstream's UCM series of IP PBXs for Zero Config provisioning
  • Electronic Hook Switch (EHS) support for Plantronics
  • Automated provisioning options include TR-069 and XML config files

What's in the box:

  • Grandstream Networks GXP1620 Wall Mountable Small Business 2-Line HD IP Phone
  • Handset with Cord
  • Base Stand
  • Universal Power Supply
  • Network Cable
  • Quick Installation Guide
  • Brochure
  • GPL License
  • Grandstream Networks 1 Year Warranty
