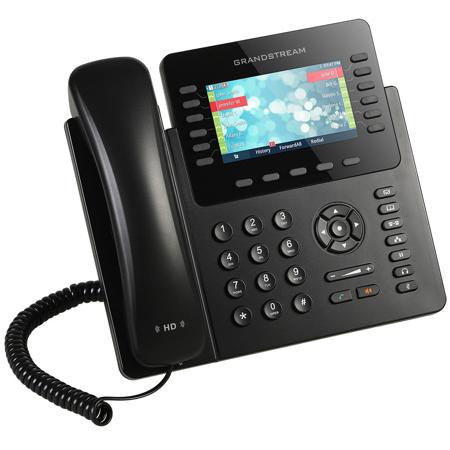

Grandstream Networks GXP2170 Enterprise Color IP Phone

Grandstream Networks GXP2170 Enterprise Color IP Phone, Built-in Bluetooth

SKU: GSGXP2170
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Grandstream Networks GXP2170 Specifications

  • Protocols/Standards

    SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR- 069, 802.1x, TLS, SRTP, IPV6

  • Network Interfaces

    Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE

  • Graphic Display

    4.3 inch (480x272) TFT color LCD

  • Bluetooth

    Yes, integrated

  • Feature Keys

    12 line keys with up to 6 SIP accounts, 5 XML programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for: MESSAGE(with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL-

  • Voice Codecs

    Support for G7.29A/B, G.711Mu/a-law, G.726, G.722(wide-band), in-band and out of- band DTMF(in audio, RFC2833, SIP INFO)

  • Auxiliary Ports

    RJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module port

  • Telephony Function

    Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance( SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to 500 records), XML customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over

  • HD Audio

    Yes, HD handset and speakerphone with support for wideband audio

  • Extension Module

    Yes, can power up to 4 GXP2200EXT modules which features a 128x384 graphic LCD, 20 quick-dial/BLF keys which dual-color LED, 2 navigation keys, and less than 1.2W power consumption per unit

  • Base Stand

    Yes, 2 angle positions available, Wall Mountable

  • QoS

    Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

  • Security

    User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control

  • Multi-language

    English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese

  • Upgrade/Provisioning

    Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file

  • Power and Green Energy Efficiency

    Universal power adapter included: Input:100-240V; Output: +12V, 1.0A; Integrated Power-over-Ethernet(802.3af) Max power consumption: 5.4W(without GXP2200EXT) or 9.2W(with 4 cascaded GXP2200EXTs)

  • Compliance

    FCC: Part 15 (CFR 47) Class B
    CE: EN55022 Class B; EN55024 Class B;EN61000-3-2; EN61000-3-3;EN60950-1
    RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950.1

  • Temperature

    Operation: 0 to 40 deg. C / 32 to 104 deg. F
    Storage: -10 to 60 deg. C / 14 to 140 deg. F

  • Humidity

    10% to 90% Non-condensing

  • Dimensions (W x L x H)

    228 x 206 x 46mm / 8.98 x 8.11 x 1.81"

  • Weight

    0.98kg / 2.16lbs

About Grandstream Networks GXP2170

The GXP2170 is a powerful enterprise-grade IP phone that is ideal for busy users who handle high call volumes. This top-of-the-line Enterprise IP Phone features up to 12 line keys/line appearances and 6 SIP accounts using a 4.3 inch color display LCD and full HD audio. It features up to 48 digital, on-screen speed dial/BLF keys to help users be more productive and efficient. The GXP2170 supports the fastest possible connection speeds with dual Gigabit network ports, features integrated PoE and includes built-in Bluetooth for syncing with mobile devices and Bluetooth headsets. This Enterprise IP phone can connect to up to four GXP2200 EXT modules with LCD display to access up to 160 speed dial/BLF contacts. The GXP2170 is the perfect choice for enterprise users looking for a top-notch executive IP phone with advanced functionality.

As all Grandstream IP phones do, the GXP2170 features state-of-the-art security encryption technology (SRTP and TLS). The GXP2170 supports a variety of automated provisioning options, including zero-configuration with Grandstream's UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.

Grandstream Networks GXP2170 Features

  • 12 dual-color line keys (with 6 SIP accounts), 5 XML programmable context sensitive soft keys
  • Dual switched auto-sensing 10/100/1000Mbps Gigabit network ports
  • 48 digitally programmable & customizable BLF/fast dial keys, and supports up to 4 cascaded GXP2200EXT Modules
  • Built-in Bluetooth for syncing headsets and mobile devices for contact books, calendars & call transferring
  • HD audio to maximize audio quality and clarity; full duplex speakerphone
  • Built-in PoE to power the devices and give it a network connection
  • Supports EHS compatible Plantronics's headsets
  • Automated provisioning options include TR-069 and XML config files
  • Built-in USB port for importing and exporting data
  • TLS and SRTP security encryption technology to protect calls and accounts
  • 5-way audio conferencing for easy conference calls
  • Use with Grandstream's UCM series IP PBX appliance for Zero-Config provisioning, 1-touch call recording & more

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Grandstream Networks GXP2170 Enterprise Color IP Phone
  • Handset with Cord
  • Base Stand
  • Universal Power Supply
  • Network Cable
  • Quick Installation Guide
  • GPL License
  • Grandstream Networks 1 Year Warranty
