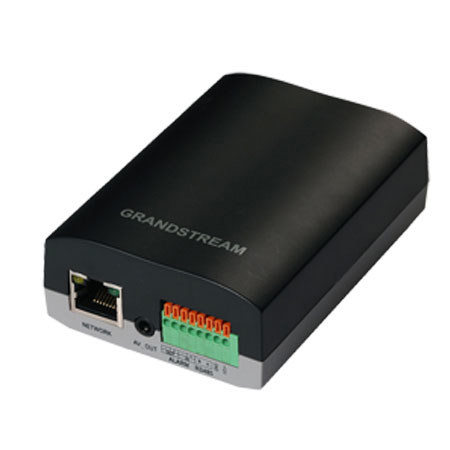

Grandstream Networks Grandstream GXV3500 IP Video Encoder/Decoder

Grandstream Networks GXV3500 IP Video Encoder/Decoder, 32 Kbps-2 Mbps Video Bit Rate

SKU: GSGXV3500
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Grandstream Networks GXV3500 Specifications

  • Channels

    1

  • Video Compression

    H.264 BP at Level 3.0, JPEG, Motion JPEG

  • Max Video Resolution

    Full D1: 720 x 576(PAL)
    720 x 480 (NTSC)

  • Max Frame Rate in Max Video Resolution

    30fps/25fps at D1 (NTSC/PAL)

  • Video Bit Rate

    32 Kbps - 2 Mbps

  • Video Input

    1 BNC (voltage1.0Vp-p,resistance75)

  • Audio Input

    3.5mm LINE IN

  • Audio Output

    3.5mm to RCA LINEOUT

  • Audio Compression

    G.711a/u

  • Alarm Input

    1

  • Alarm Output

    1

  • PTZ Control

    Yes

  • Serial Ports

    RS485

  • Embedded Analytics

    Motion Detection (up to 16 target areas), video loss (pending)

  • Pre-/post alarm buffer

    8MB

  • Snapshots

    Can be sent via email/FTP when events are triggered

  • Multi-streaming-rate

    Yes

  • Security

    On screen display, HTTPS, password

  • Power over Ethernet (PoE)

    Standard, IEEE 802.3af Class 3

  • SIP/VoIP Support

    Yes

  • Temperature / Humidity

    0deg.C - 45deg.C (32deg.F-113deg.F)
    Humidity 10-90% RH (non-condensing)

  • Power

    Output: 12VDC/0.5A; Input: 100-240VAC, 50-60Hz

  • Compliance

    FCC Part15, Subpart B Class B; EN 55022 Class B, EN61000-3-2, EN61000-3-3, EN 55024, EN60950-1; C-tick AS/NZS CISPR 22, CISPR 24

  • Weight

    123 g (4.33 oz)

About Grandstream Networks GXV3500

The Grandstream GXV3500 IP Video Encoder/Decoder is an innovative next generation IP video encoder + decoder + public announcement system 3-in-1 combo device. It features cutting edge H.264 real-time video compression for analog video as well as IP video decoding with excellent image clarity. It offers industry leading SIP/VoIP for 2-way audio, video streaming to mobile phones and video phones, integrated PoE, a large pre-/post-event recording buffer and advanced security protection.

Its integration of comprehensive peripherals including microphone input, alarm control and TV/audio output allows the device to also function as a powerful and flexible voice/video public announcement system using microphones, IP phones, or IP video phones. The GXV3500 can be managed with GSurf, Grandstream's advanced and intuitive video management software that controls up to 36 cameras simultaneously.

It offers an HTTP API and is fully compliant with ONVIF standard. The GXV3500 is an advanced first-of-its-kind IP video encoder + decoder + public announcement system 3-in-1 combo product for professional surveillance and security monitoring applications.

Grandstream Networks GXV3500 Features

  • Decodes standard definition PAL/NTSC composite video stream, or smaller resolutions
  • Advanced multi-streaming-rate real-time H.264, Motion JPEG at D1 resolution
  • Support 8Mb pre-/post-event recording buffer
  • Support Line-Out and Micro-In audio connections
  • Support composite (RCA) video output to TV
  • Support Motion Detection and Notification on PC Client
  • Support both Variable Bit Rate and Variable Frame Rate
  • Support IE and Firefox for network preview
  • Built-in high performance streaming server to allow 10+ simultaneous viewers
  • SIP/VoIP support for two-way audio and video streaming to mobile phones/video phones
  • Integrated Power-over-Ethernet (802.3af)
  • Support voice announcement from microphone or remote SIP phones, or video announcement/advertisement from remote SIP video phones or IP video streaming content
  • Full ONVIF compliance

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Grandstream GXV3500 IP Video Encoder/Decoder
  • 12V DC Power Adapter
  • 3.5mm to RCA Audio/Video Cable
  • Quick Installation Guide
  • Grandstream Warranty
