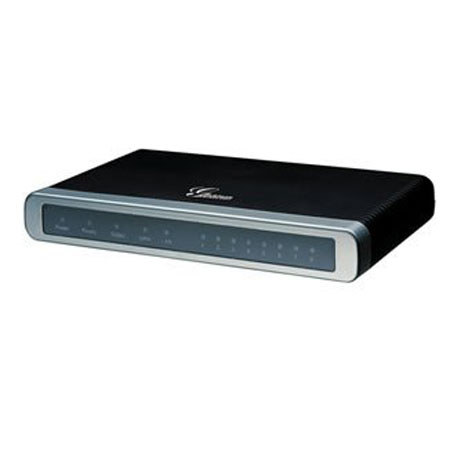

Grandstream Networks Grandstream GXW4104 IP Analog Gateway, 4 Port FXO

Grandstream Networks GXW4104 IP Analog Gateway, 4 Port FXO, Dual 10M/100M Network Ports

SKU: GSGXW4104
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Grandstream Networks GXW4104 Specifications

  • Voice Port

    4 Ports

  • Telephone Interface

    FXO, RJ11

  • Network Interface

    2 RJ45 10/100Mbps (LAN/WAN)

  • PSTN Signaling

    FXO Loop Strat

  • On/Off Switches

    Yes

  • LED Indicators

    Power, Video, Network and Line LED's

  • Voice Compression

    G.711, G.723, G.726 (40/32/24/16), G.729A/B/E, G.728, ILBC

  • Video Surveillance

    Real Time Base Line H.264 (CIF Resolution, Upto 30fps)

  • DHCP Client/Server

    Yes, NAT Router or Switched Mode

  • Qos

    Diffserve, TOS, 802.1P/Q VLAN Tagging

  • IP Transport

    RTP/RTCP

  • DTMF Method

    Flexible DTMF Transmission Method, User Interface of In-Audio, RFC2833 and/or SIP Info

  • IP Signaling

    SIP (RFC 3261)

  • Provisioning

    TFTP, HTTP, Round Robin Port Scheduling to Ensure Available Lines to Access PSTN

  • Security Media

    SRTP

  • Security Management

    Syslog Support, HTTPS, Telnet, Remote Management Using Web Browsing

  • Power

    Output: 12V DC
    Input: 100-240V AC/50-60Hz

  • Operational Temperature

    32-104deg.F or 0-40deg.C

  • Storage Temperature

    14-140deg.F or -10-60deg.C

  • Humidity

    10-90% Non Condensing

  • Compliance

    FCC, CE

  • Dimensions (LxWxH)

    225.00x135.00x35.00mm (8.85x5.31x1.37")

  • UPC Code

    6947273700326

About Grandstream Networks GXW4104

The Grandstream GXW4104 IP Analog Gateway (4 Port FXO) offers the small enterprise, SOHO, remote offices and multi-location enterprises a cost-effective, easy to deploy VoIP FXO solution. The GXW410x series allows any business to seamlessly connect multiple locations with up to 8 PSTN lines, to an IP PBX system, or with an existing traditional phone system. It is designed and tested for full interoperability with leading IP-PBXs, soft-switches and SIP-based environments.

Grandstream Networks GXW4104 Features

  • 4 FXO port media gateways
  • Video surveillance port
  • External power supply
  • Two RJ-45 ports 10/100 Mbps (switched or routed)
  • TFTP and HTTP firmware upgrade support
  • Multiple SIP accounts (choice of 3 profiles per account)
  • Programmable PSTN line settings for different countries/regions
  • 1 or 2 stage dialing
  • Caller ID
  • G.168 - echo cancellation
  • Flexible DTMF transmission: In Audio, RFC2833, SIP Info or any combination of the 3
  • Selectable, multiple LBR coders per channel
  • T.38 Fax compliant
