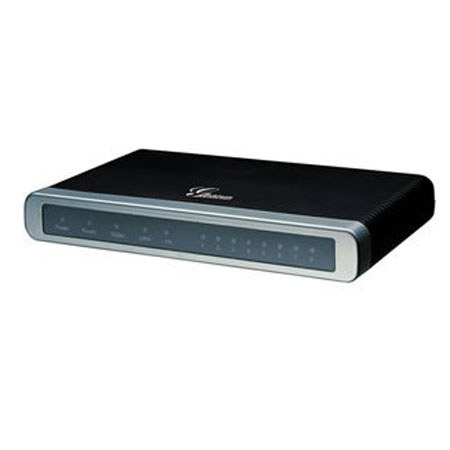

Grandstream Networks Grandstream GXW4108 8 Port IP Analog Gateway
See all Grandstream Networks items

Grandstream Networks GXW4108 8 Port IP Analog Gateway, 2 x RJ45, 8 FXO Ports, 2 x 10M/100 Mbps Network Interface

SKU: GSGXW4108

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Grandstream Networks GXW4108 Specifications

  • Ports

    8 FXO Ports

  • Ethernet Ports

    2 x RJ45, 2 x 10/100Mbps (LAN/WAN)

  • Telephone Interface

    FXO, RJ11

  • LED Indicators

    Power, Video, Network and Line LED's

  • On/Off Switches

    Yes

  • Voice Compressions

    G.711, G.723, G.726 (Pending), G.729A/B, GSM

  • Video Surveillance

    Real Time Base Line H.264 (CIF Resolution, Up to 30fps)

  • Fax over IP

    T.38 compliant Group 3 Fax Relay up to 14.4 kbps and auto switch to G.711 for fax pass-through

  • QoS

    DiffServe, TOS, 802.1P/Q VLAN Tagging

  • IP Protocols

    RTP/RTCP & PPPoE

  • PSTN Signaling

    FXO Loop Start

  • DTMF Method

    Flexible DTMF transmission method User Interface IN-Audio, RFC2833 and/or SIP INFO

  • IP Signaling

    SIP (RFC 3261)

  • Provisioning

    TFTP and HTTP, Round-Robin port Shceduling to ensure available lines to access PSTN

  • Security

    SRTP

  • Management

    Syslog, HTTPS, Web Browser, TELNET, Voice Promt, TR-069

  • Universal Power Supply

    Output: 12V DC
    Input: 100-240VAC, 1.0A, 50/60Hz

  • Environmental

    Operational: 32-104deg.F or 0-40deg.C
    Storage: 14-140deg.F or -10-60deg.C
    Humidity: 10%-90% Non Condensing

  • Dimensions

    225.00x135.00x35.00mm (8.85x5.31x1.37")

  • UPC Code

    6947273700333

About Grandstream Networks GXW4108

The Grandstream GXW4108 8 Port IP Analog Gateway offers the small enterprise, SOHO, remote offices and multi-location enterprises a cost-effective, easy to deploy VoIP FXO solution. The GXW410x series allows any business to seamlessly connect multiple locations with up to 8 PSTN lines, to an IP PBX system, or with an existing traditional phone system.

Grandstream Networks GXW4108 Features

  • 8 FXO port media gateways
  • External power supply
  • Two RJ-45 ports 10/100 Mbps (switched or routed)
  • TFTP and HTTP firmware upgrade support
  • Multiple SIP accounts (choice of 3 profiles per account)
  • Programmable PSTN line settings for different countries/regions
  • 1 or 2 stage dialing
  • Caller ID
  • G.168 - echo cancellation
  • Flexible DTMF transmission: In Audio, RFC2833, SIP Info or any combination of the 3
  • Selectable, multiple LBR coders per channel
  • T.38 Fax compliant
