Heritage Audio API VPR 500 Series 1073/500 Microphone Preamplifier Module

SKU: HA1073500ANN MFR: HA1073/500ANN
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this Heritage Audio microphone preamplifier module.
  • Experience low noise and high gain, perfect for studio-quality vocal recordings.
  • Achieve versatile sound shaping with the integrated EQ, enhancing your tracks.
  • Enjoy robust build quality ensuring lasting performance in your 500 series rack.
  • Transformer balanced I/O provides superior connectivity and signal integrity.
  • Fine-tune your sound with precise input impedance controls for optimal mic matching.
See More Product Details
Special Order?Estimated to Ship: 08/07/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Heritage Audio Mic Preamplifier Module Specifications

  • Input Impedance

    Microphone
    HI: 1200Ohms minimum
    LO: 300Ohms minimum
    Line: 10 kOhms bridging, transformer balanced and floating

  • Output Impedance

    Less than 75Ohms, Transformer balanced and floating to drive a load of 600Ohms

  • Maximum Output

    Greater than +26 dBm into 600Ohms
    Greater than +32 dBu into 10 kOhms

  • THD

    Less than 0.025% at 1,000Hz
    Less than 0.05% at 100Hz

  • Frequency Response

    20Hz (+0.3 dB) to 20,000Hz (-0.2 dB)

  • Maximum Gain

    Slightly greater than 80 dB

  • Noise

    Less than -100 dBm

  • EQ Button

    Switches the equalizer on or off

  • Phase Button

    Flips phase 180 deg.

  • Power Consumption

    106 mA at 24 VDC

  • Dimensions (W x D x H)

    4.45 x 7.09 x 5.32" / 11.30 x 18.01 x 13.51cm

  • Weight

    5.1lbs / 2.31kg

  • UPC Code

    702877907146

About Heritage Audio Mic Preamplifier Module

Why settle for less when you can have the best The API VPR 500 Series 1073/500 Microphone Preamplifier Module, a creation of Heritage Audio, is a testament to uncompromised quality and superior audio performance. Unlike other brands that had to make concessions to fit their versions into a compact 500 series module, Heritage Audio made no such compromises.

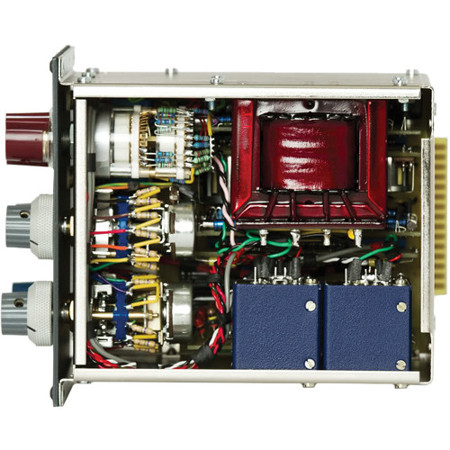

This preamplifier module is a 3u wide unit, designed to accommodate all three vintage-accurate transformers, dual concentric switches, pushbuttons, and the exact PCB cards found in the original 1073 model. This meticulous design approach ensures that you get the authentic 1073 experience in a 500 series format.

The API VPR 500 Series 1073/500 Microphone Preamplifier Module doesn't cut corners. There are no downsized knobs, no omitted transformers, and no integrated circuits replacing the discrete class A circuitry. It delivers exactly what it promises: a true 1073 experience in a 500 series module.

In the world of professional audio equipment, the API VPR 500 Series 1073/500 Microphone Preamplifier Module stands out as a symbol of Heritage Audio's commitment to quality and authenticity. It's not just a product; it's a promise of unparalleled audio performance.

Heritage Audio Mic Preamplifier Module Features

  • 70dB Class A Microphone preamplifier, HI-LO selectable minimum input impedance, balanced and floating. High gain positions show a higher impedance, ideal for old ribbon mics
  • 10dB Class A Line Amplifier, Bridging input impedance, balanced and floating
  • Class A, single ended, 2N3055 driven high headroom output stage
  • High Frequency - +/-16dB shelving at 12 kHz, Baxandall type
  • Low Frequency - +/-16dB with selectable frequency shelving of 35Hz, 60Hz, 110Hz & 220Hz, Baxandall type
  • Mid Frequency - +/-18dB peaking, fixed 'Q' , selectable center frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz and7.2kHz , dual inductor based
  • High Pass Filter - 18dB per octave slope, switchable between 50Hz, 80Hz , 160 Hz & 300Hz, inductor based
  • 1073 Module available. 19" Convertible format available Winter 2012

Key Features

  • Capture pristine audio with this Heritage Audio microphone preamplifier module.
  • Experience low noise and high gain, perfect for studio-quality vocal recordings.
  • Achieve versatile sound shaping with the integrated EQ, enhancing your tracks.
  • Enjoy robust build quality ensuring lasting performance in your 500 series rack.
  • Transformer balanced I/O provides superior connectivity and signal integrity.
  • Fine-tune your sound with precise input impedance controls for optimal mic matching.

What's in the box:

  • Heritage Audio API VPR 500 Series 1073/500 Microphone Preamplifier Module
  • Heritage Audio 1 Year Parts & Labor Warranty
